ABOUT THIS PRINTER 1 - 3
HL7050_US_UG_FM5.5

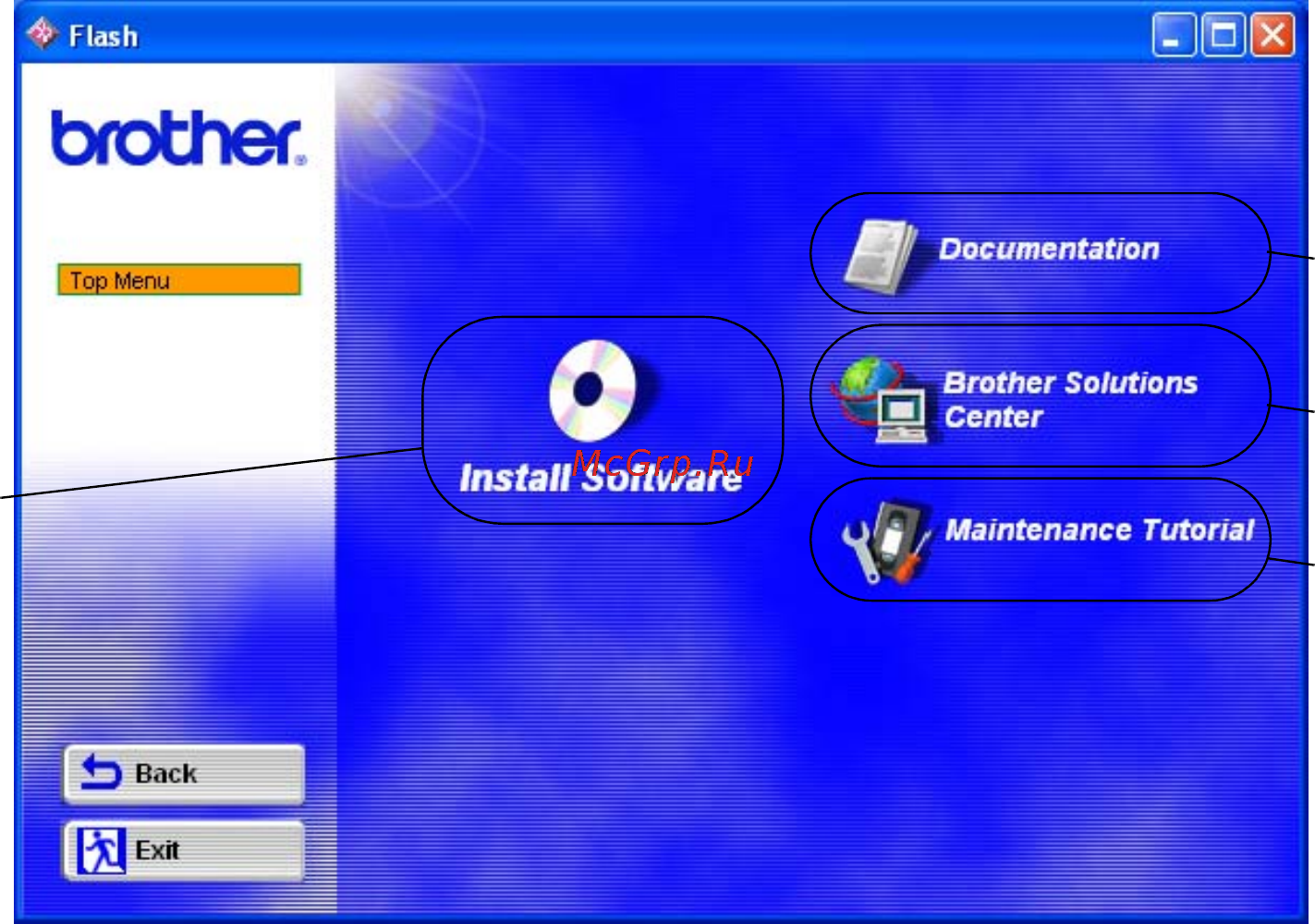

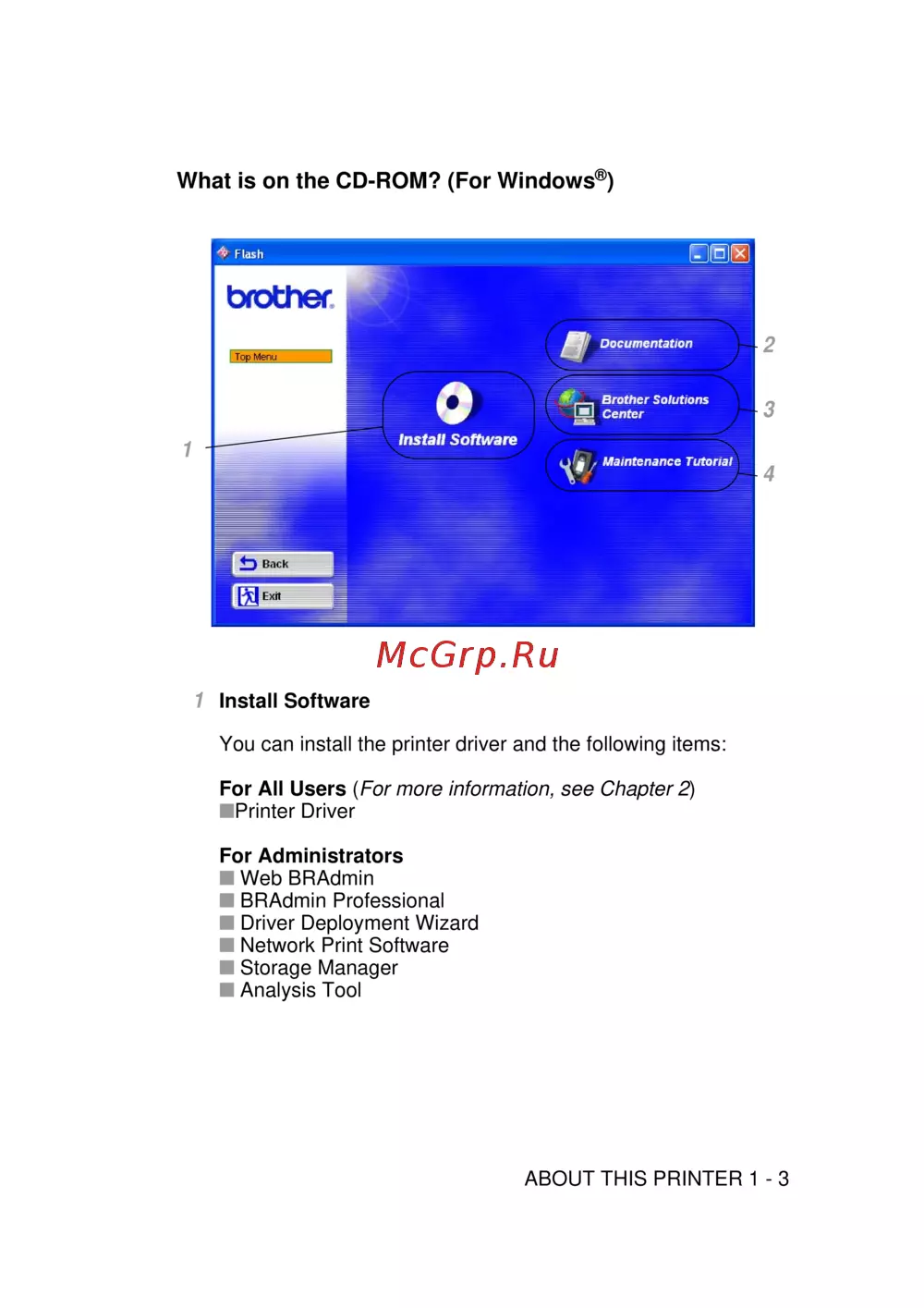

What is on the CD-ROM? (For Windows
®
)
1
Install Software
You can install the printer driver and the following items:
For All Users (For more information, see Chapter 2)
■Printer Driver
For Administrators
■ Web BRAdmin
■ BRAdmin Professional
■ Driver Deployment Wizard
■ Network Print Software
■ Storage Manager
■ Analysis Tool
1
3
4
2
