AngleMeter 30 / 40 AngleMeter 30 / 40

Operating manual

Digital angle meter

Model: AngleMeter 30 / 40

Manufacturer: ADAINSTRUMENTS

Address: WWW. ADAINSTRUMENTS.COM

Application

Digital angle meter ADA AngleMeter 30 / 40 has built-in electronic sensor

of slope. Data are displayed on LCD digital display. AngleMeter 30 / 40 has

adjustable aluminium angle for angle measurements.

Put the instrument on even surface. Set the adjustable angle to cover the

housing exactly.

Complete set

Digital angle meter ADA AngleMeter 30 / 40, batteries.

Batteries

Open battery cover and put batteries.

Note! Change the batteries if the symbol of battery is appeared on display!

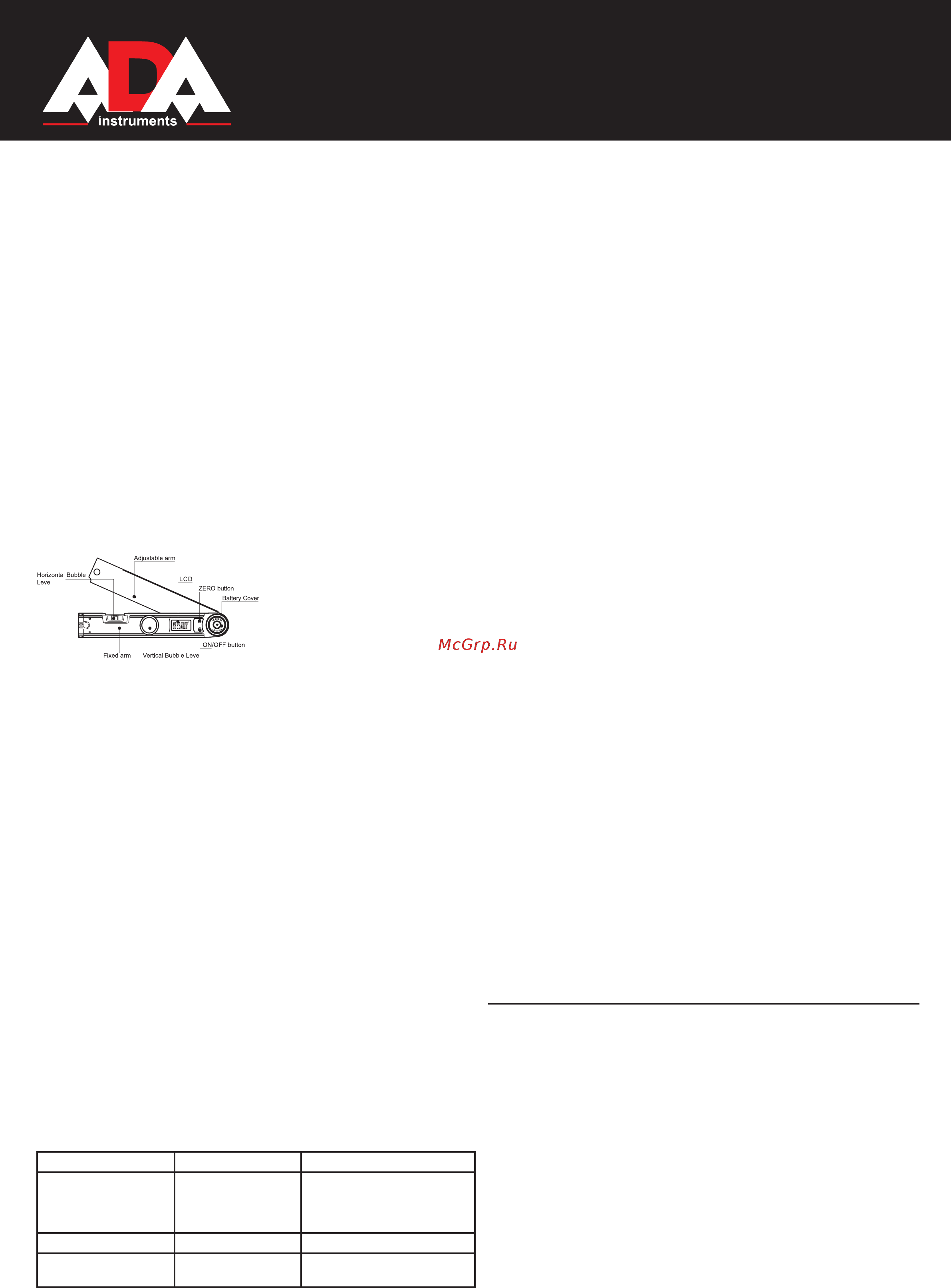

Display and keypad

Spesications

Measuring range 0.0° ~ 225.0°

Resolution 0.1°

Accuracy ±0.3°

Power supply 3V lithium battery

Operaring temperature 0°C ~ + 40°C

Working humidity ≤85%RH

Operation

On/Off

Move the scale or press button On/Off to switch on the instrument. Press

this button again to switch it Off.

Absolute Angle Measurement

Move adjustable arm to touch the surfaces and measure the desired angle

with the help of inner or outer part of the arm.

Relative Angle Measurement

Adjust the position between 2 arms to the selected angle. Press ZERO to re-

set the device. Move the adjustable arm to the surface of the measurement.

The difference between two angles is shown on the display. Use inner and

outer parts of the arms to take measurements.

Trouble shooting

Problem Possible cause Solution

- display doesn’t switch on

- fuzzy display

- disordered display

- no battery,

- wrong battery instal-

lation or

low battery

- install battery again

- replace battery

Flashing digits low battery replace battery

Frozen display internal error remove battery and install it again

in one minute

WARRANTY CARD

Name and model of the product __________________________________

Serial number ________________date of sale_______________________

Name of commercial organization _____________________stamp of com-

mercial organization.

Warranty period for the instrument explotation is 24 months after the date of

original retail purchase.

During this warranty period the owner of the product has the right for free

repair of his instrument in case of manufacturing defects.

Warranty is valid only with original warranty card, fully and clear lled

(stamp or mark of thr seller is obligatory).

Technical examination of instruments for fault identication which is under

the warranty, is made only in the authorized service center.

In no event shall manufacturer be liable before the client for direct or con-

sewuential damages, loss of prot or any other damage which

occur in the result of the instrument outage.

The product is received in the state of operability, without any visible dam-

ages, in full completeness. It is tested in my presence. I have no complaints

to the product quality. I am familiar with the conditions of warranty service

and I agree.

purchaser signature _______________________________

Before operating you should read service instruction!

If you have any questions about the warranty service and technical support

contact seller of this product

WARRANTY DOESN’T EXTEND TO FOLLOWING CASES:

1. If the standard or serial product number will be changed, erased, removed

or wil be unreadable.

2. Periodic maintenance, repair or changing parts as a result of their normal runout.

3. All adaptations and modications with the purpose of improvement and

expansion of normal sphere of product application, mentioned in the service

instruction, without tentative written agreement of the expert provider.

4. Service by anyone other than an authorized service center.

5. Damage to products or parts caused by misuse, including, without limita-

tion, misapplication or nrgligence of the terms of service instruction.

6. Power supply units, chargers, accessories, wearing parts.

7. Products, damaged from mishandling, faulty adjustment, maintenance

with low-quality and non-standard materials, presence of any liquids and

foreign objects inside the product.

8. Acts of God and/or actions of third persons.

9. In case of unwarranted repair till the end of warranty period because of

damages during the operation of the product, it’s transportation and storing,

warranty doesn’t resume.

For more information you can visit our website

WWW.ADAINSTRUMENTS.COM

or write the letter with your questions on info@adainstruments.com
