LG GR-N266LLS [10/56] Preparation work before installation of appliance

Preparation Work Before

Installation of Appliance

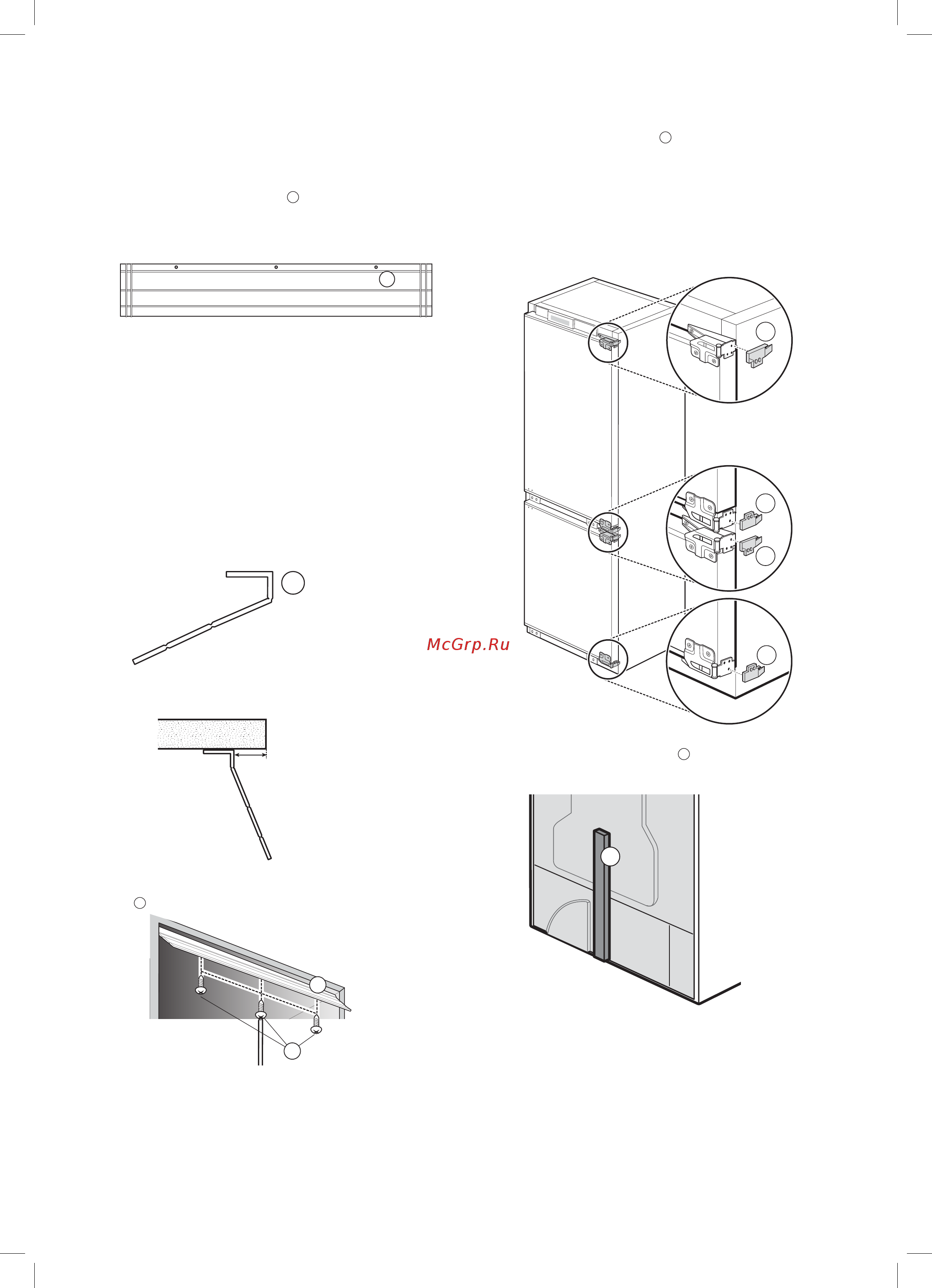

Installating the top cover

of the appliance.

A CDB

• Cut the top cover according to the cabinet

thickness.

• For a door opening to the right

− 18 mm thickness ; Cut the A line.

− 20 mm thickness ; Cut the B line.

• For a of door opening to the left

− 18 mm thickness ; Cut the C line.

− 20 mm thickness ; Cut the D line.

• Pre-fold the top cover

• Mark the point 45 mm form on the front surface

of the cabinet.

45 mm

• Fix the top cover with the wood bolting screw

in three places.

Insert the hinge stand

at the four hinges.

• Do not insert the hinge stand if the thickness of

the cabinet is 20 mm.

Attach the air path guide
