AB350 Pro4
29
English

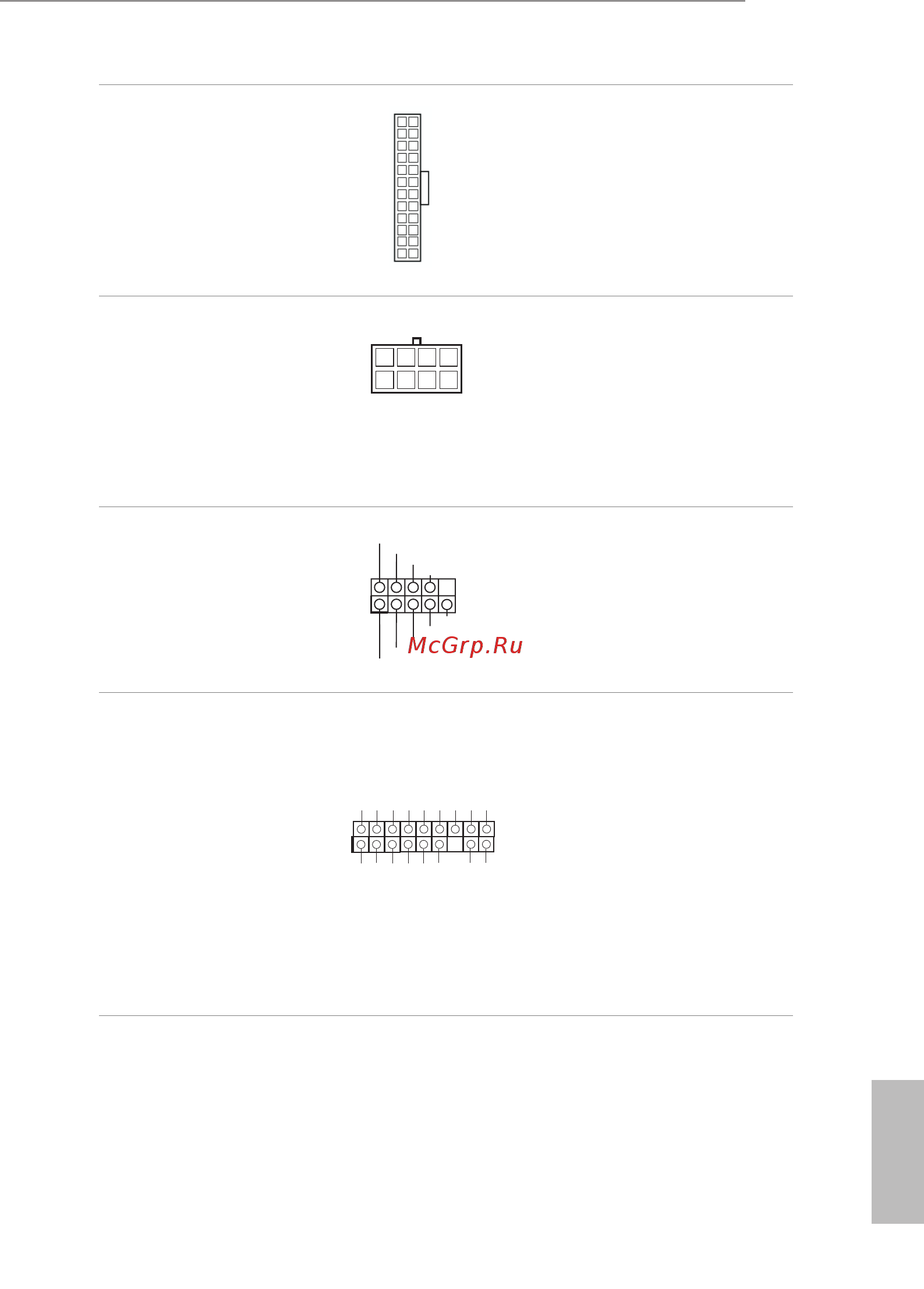

ATX Power Connector
(24-pin ATXPWR1)
(see p.6, No. 7)
is motherboard pro-
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.
ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.6, No. 1)
is motherboard
provides a 8-pin ATX 12V
power connector. To use a
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.
Serial Port Header
(9-pin COM1)
(see p.6, No. 22)
is COM1 header
supports a serial port
module.
TPM Header
(17-pin TPMS1)
(see p.6, No. 23)
is connector supports
Trusted Platform Module
(TPM) system, which can
securely store keys, digital
certicates, passwords,
and data. A TPM system
also helps enhance
network security, protects
digital identities, and
ensures platform integrity.
12
1
24
13
5
1
8
4
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1
1
GN D
SM B_DATA_MAIN
LA D2
LA D1
GN D
S_ PWRDWN#
SE RIRQ#
GN D
PC ICLK
PC IRST#
LA D3
+3 V
LA D0
+3 VSB
GN D
FR AME
SM B_CLK_MAIN
