English
25
Z270M Extreme4

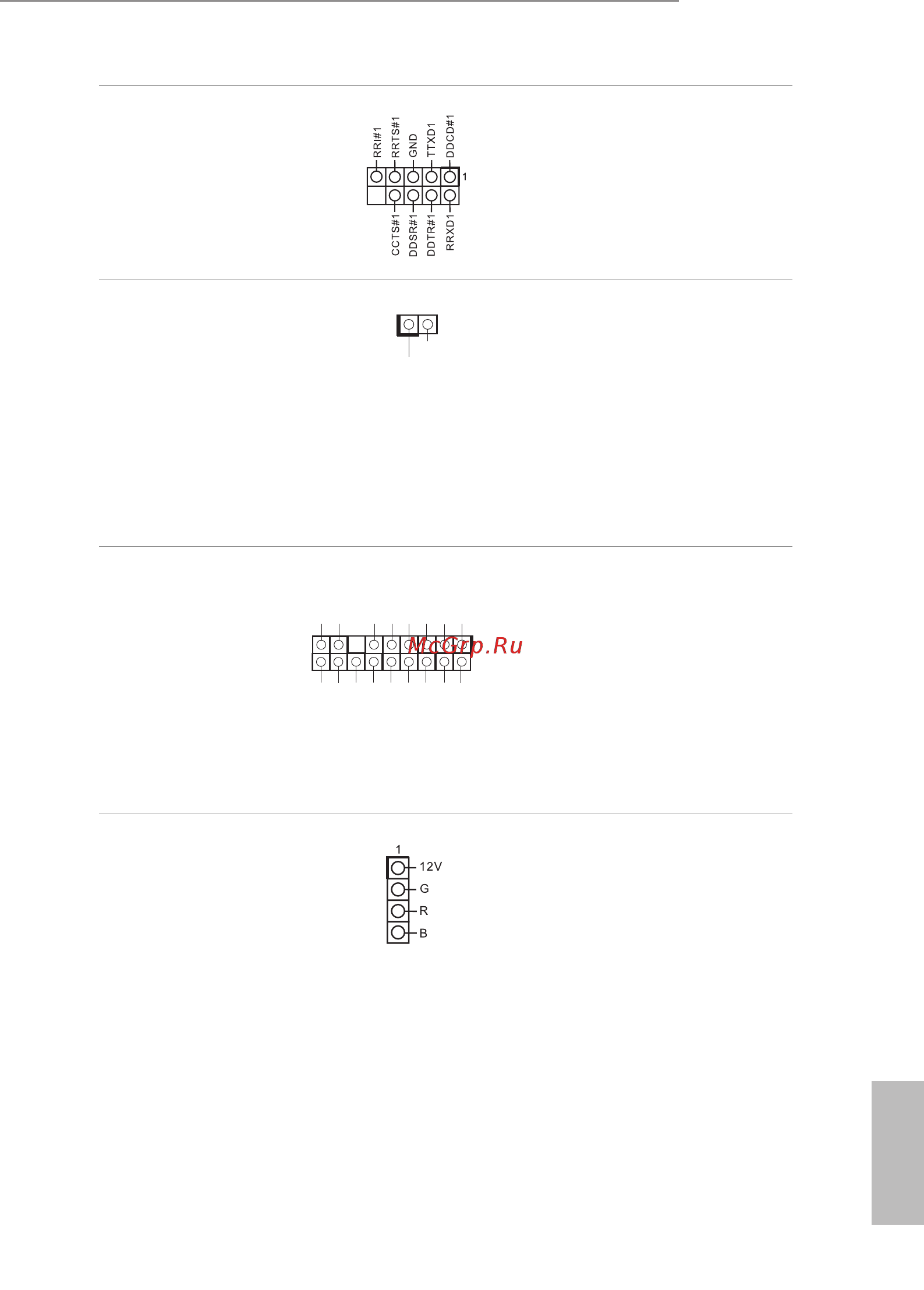

Serial Port Header
(9-pin COM1)
(see p.8, No. 26)
is COM1 header
supports a serial port
module.
Chassis Intrusion Header
(2-pin CI1)
(see p.8, No. 23)
is motherboard
supports CASE OPEN
detection feature that
detects if the chassis cove
has been removed. is
feature requires a chassis
with chassis intrusion
detection design.
TPM Header
(17-pin TPMS1)
(see p.8, No. 24)
is connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
AURA RGB LED Header
(4-pin RGB_LED)
(see p.8, No. 6)
AURA RGB LED header is used
to connect RGB LED exten-
sion cable which allows users to
choose from various LED light-
ing eects.
Caution: Never install the RGB
LED cable in the wrong orienta-
tion; otherwise, the cable may be
damaged.
1
GN D
SMB_DATA_MAIN
LAD2
LAD1
GN D
S_PWRDWN #
SERIRQ #
GN
D
P CICLK
P CIRST #
LAD3
+3 V
LAD0
+3VS B
GN D
FRAM E
SMB_CLK_MAIN
1
Signal
GND
