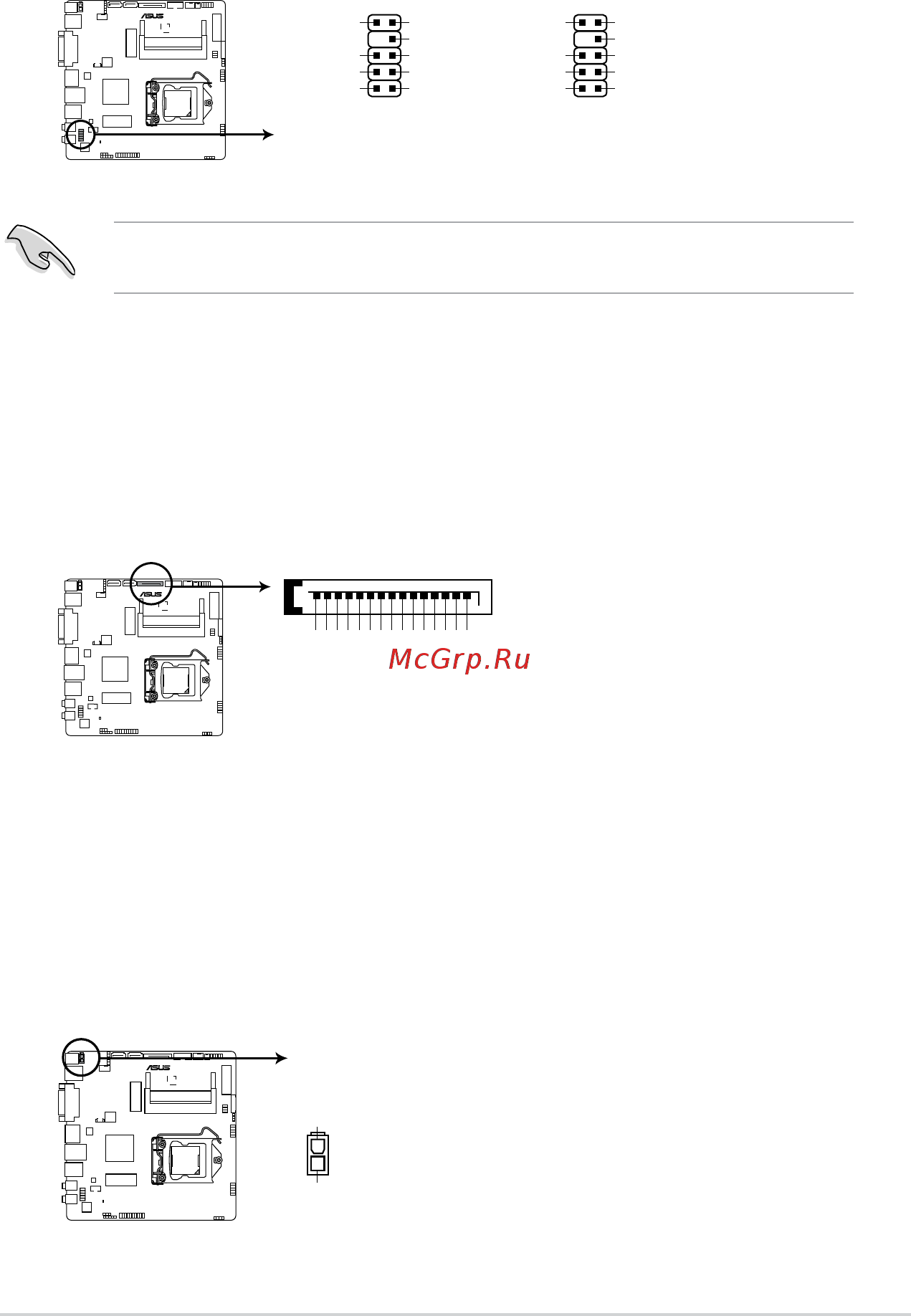

ASUS H81T
1-15
7. ATX power connector (2-pin ATX19V1)
This connector is for an ATX power supply. The plug from the power supply is designed
to t this connector in only one orientation. Find the proper orientation and push down
rmly until the connector completely ts.
H81T
H81T DC power source
PIN 1
ATX19V1
DC_JACK_INGND
5. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel HD audio I/O module. Connect one
end of the front panel audio I/O module cable to this connector.
We recommend that you connect a high-denition front panel audio module to this
connector to avail of the motherboard’s high-denition audio capability.
H81T
H81T Front panel audio connector
AAFP
SENSE2_RETUR
SENSE1_RETUR
NC
AGND
PORT2 L
SENSE_SEND
PORT2 R
PORT1 R
PORT1 L
HD-audio-compliant
pin definition
PIN 1PIN 1
NC
NC
NC
AGND
Line out_L
NC
Line out_R
MICPWR
MIC2
Legacy AC’97
compliant definition
6. SATA power connector (15-pin SATA_PWRCON)
This connector is for the SATA power cable. The power cable plug is designed to t this
connector in only one orientation. Find the proper orientation and push down rmly until
the connector completely t. To provide power to your SATA device, connect the SATA
power cable to this connector.
H81T
H81T SATA HDD power source
PIN 1
+12V
+12V
+12V
GND
GND
GND
+5V
+5V
+5V
GND
GND
GND
+3V
+3V
+3V
SATA_PWRCON
