Hyundai H-SWE1-30V-UI065 [6/29] Caution

10.

Electrical instant water heater

11.

Electrical instant water heater

EN EN

Water supply network connection

The water heater is connected to the cold water supply network with operating pressure from

0.1 MPa to 0.7 MPa. If water pressure in the water supply network exceeds 0.75 MPa, install a

reduction valve (pressure reducer) in the feed system so that operating pressure does not exceed

0.75 MPa.

If water hardness in the water supply main exceeds 450 mg/l (CaCO3), we recommend you to use

a separate water lter upstream of the water heater inlet to extend service life of the heating

element.

For connection to the water supply network, the water heater has inlet and outlet connectors,

which are marked with indication labels and provided with male thread 12 mm in diameter

(G1/2”).

Install the combined check valve / pressure safety valve provided in the package onto the cold

water inlet connection marked with blue color. Connect a drain tube to the pressure relief port of

the pressure safety valve for water drainage to the sewers (possible upon heating).

CAUTION!

Never operate the water heater without the installed check

valve / pressure safety valve.

To facilitate maintenance of the water heater, we recommend you to install a drain valve and a

tee between the cold water inlet connection and pressure safety valve. This tee will help you to

faster drain water from the water heater. For your convenience, we recommend you to connect

a water drain hose to the shuto valve of the tee. This hose will allow you to route water drained

from the water heater to the sewers or another selected destination. Connect the desired

quantity of consumption points to the hot water outlet connection marked with red color. Open

the cold water feed valve and one of the demountable valves in order to pass water ow through

the water heater and make sure that it is operable. Aer the tank has been lled as indicated

by water owing from the demountable valve, close it, check tightness of all connections, and

retighten them as necessary.

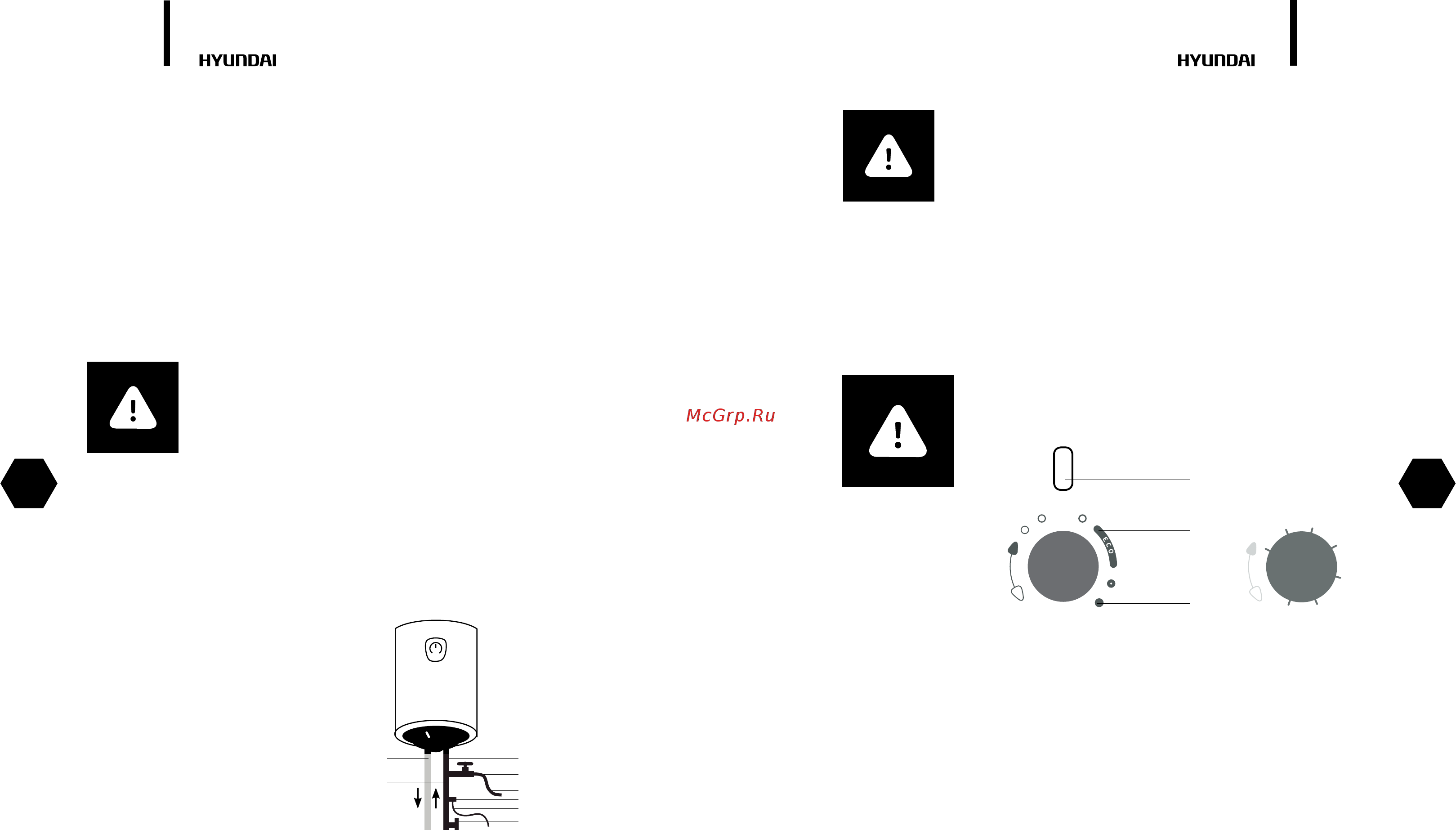

1 - Inlet connection

2 - Outlet connection

3 - Tee*

4 - Shuto valve*

5 - Pressure safety valve

6 - Drain tube*

7 - Cold water inlet shuto valve*

8 - Drain hose*

* not included to the package.

Electrical mains connection

The power cord of the water heater has a plug with a grounding contact. The water heater shall

be used with the properly grounded mains socket. If the socket planned for use is not properly

grounded or protected with a time-delay fuse / circuit breaker, please contact a qualied electri-

cian for replacement of the socket.

CAUTION!

Proper grounding is important for minimization of electrical shock

and re hazards.

The water heater is designed for connection to the electrical mains with single-phase voltage of

220V. Before connection, make sure that parameters of the electrical mains at the connection

point meet the parameters indicated on the name plate with specications of the appliance.

During installation of the water heater, observe the eective electrical safety rules. The electrical

socket shall be designed for rated current not less than 10A. The electrical cable shall have

conductor area not less than 3x1.5 mm2 (for copper).

OPERATION

1 - Heating indicator

2 - ECO position

3 - Thermostat knob

4 - Maximum water heating temperature position

5 - O position

Approximate

temperature scale

CAUTION!

Refer to «Water heater safe operation and installation rules»

Open one of the demountable valves at outlet from the water heater and open the cold water

inlet valve. When water starts to freely ow out from the demountable valve, close it and insert

the plug of the power cord to the socket. When the water heater is used, the cold water inlet

valve shall be in open position.

The water heating temperature in the water heater can be set in the range from +35°C to +75°C.

To increase the water heating temperature, rotate the thermostat knob clockwise. To decrease

the water heating temperature, rotate the thermostat knob counter-clockwise.

The water heater automatically maintains the set water temperature. When water temperature

in the water heater reaches the user set value, heating will be automatically stopped and the

heating indicator will extinguish. When water temperature in the water heater decreases below

the user set value, heating will be automatically activated and the heating indicator will light up

with bright pink color.

0°C

75°C

35°C

61°C

68°C

45°C

55°C
