Hyundai H-AR5-09H-UI025 [4/25] Appliance description

Electric air conditioner (split system)

EN EN

4. APPLIANCE DESCRIPTION

The conditioner consists of indoor and outdoor units connected by pipelines. The conditioner may

be controlled from a remote control board or from an indoor unit control panel.

1. Conditioner unit for indoor installation.

2. Front panel.

3. Air-intake grille of the indoor unit.

4. Control panel (start/stop button, mode selection button) if there is no remote control board.

5. Blinds (deectors) for distribution of treated air.

6. Air outlet of the indoor unit.

7. Copper tube for gas (freon), connection line*.

8. Tube for condensate removal*.

9. Air-outlet grille of the outdoor unit.

10. Conditioner unit for outdoor installation.

11. Air-intake grilles of the outdoor unit.

5. DELIVERY SET

Complete set of air conditioner (split system) includes:

Conditioner unit for indoor installation -1 piece

Conditioner unit for outdoor installation -1 piece

Remote control board -1 piece

Batteries for remote control board - 2 pcs.

User manual -1 piece

Guarantee slip -1 piece

Packing of indoor-installation unit -1 piece

Packing of outdoor-installation unit -1 piece

* not supplied

6. APPLIANCE CONTROL

The conditioner may be controlled from a remote control board or from an indoor unit control

panel.

If the remote control board is lost or cannot be used at the moment, you may use a control

button «on/o» located behind the front panel.

For that, open the front panel carefully by pulling it from the le and right.

1. Press once to activate the automatic mode.

2. Press again within ve seconds to activate the forced cooling mode.

The front panel of air conditioner there is a display that shows the current temperature and

dened, and indicators* display modes and settings: power, night mode, temperature, timer,

compressor operation (see Fig. 3**).

The front panel of the conditioner comprises a display showing specied and current tempera-

ture, as well as indicators* reecting modes and parameters of work: power supply, sleep mode,

temperature, timer, compressor operation (see Fig. 3**).

* Presence of this function depends on the delivery lot.

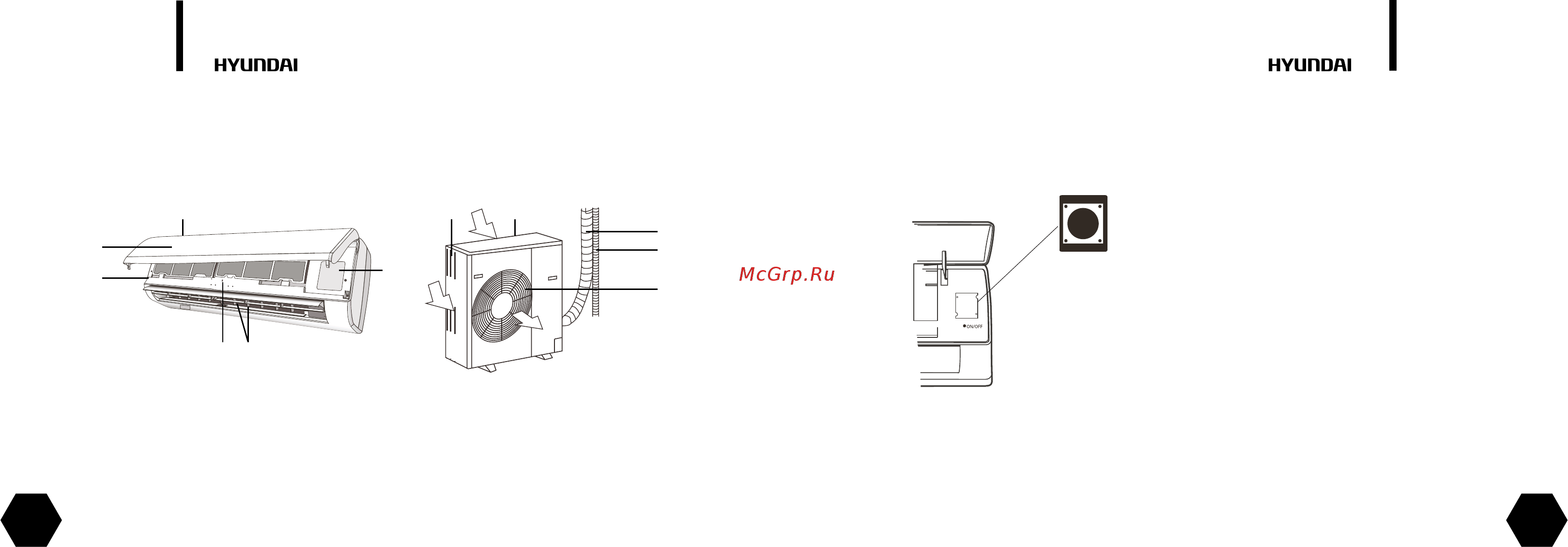

Fig. 1 Fig. 2. Description of indoor unit control panel
