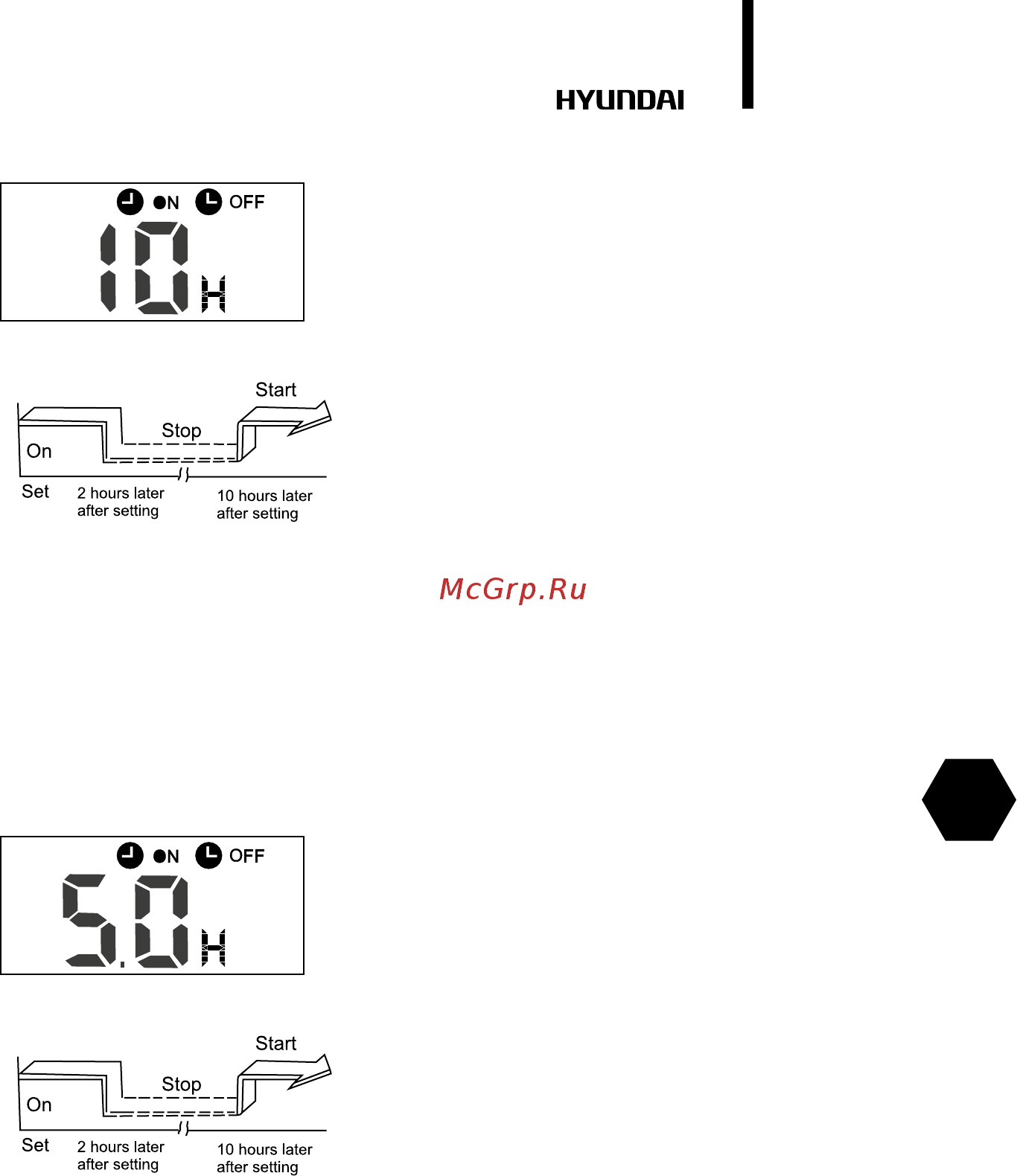

Hyundai H-AR7-12H-UI136 [15/68] Combined timer setting both on and off timers simultane ously

15.

Electric air conditioner (split system)

Example:

To stop the air conditioner 2 hours aer setting and

start it again 10 hours aer setting.

1. Press the TIMER OFF button.

2. Press the TIMER OFF button again to display 2.0H on the TIMER OFF display.

3. Press the TIMER ON button.

4. Press the TIMER ON button again to display 10H on the TIMER ON display .

5. Wait for 3 seconds and the digital display area will show the temperature again. The “TIMER

ON OFF” indicator remains on and this function is activated.

COMBINED TIMER (Setting both

ON and OFF timers simultane-

ously)

TIMER OFF → TIMER ON (On → Stop → Start

operation)

This feature is useful when you want to stop the

air conditioner aer you go to bed, and start it

again in the morning when you wake up or when

you return home.

Example:

To start the air conditioner 2 hours aer setting, and stop it 5 hours aer setting.

1. Press the TIMER ON button.

2. Press the TIMER ON button again to display 2.0H on the TIMER ON display.

3. Press the TIMER OFF button.

4. Press the TIMER OFF button again to display 5.0H on the TIMER OFF display .

5. Wait for 3 seconds and the digital display area will show the temperature again. The “TIMER

ON OFF” indicator remains on and this function is activated.

TIMER ON → TIMER OFF (O →

Start → Stop operation)

This feature is useful when you want to start

the air conditioner before you wake up and

stop it aer you leave the house.

Fig. 10

Fig. 11
