![Asus STRIX Z270F GAMING [40/102] Chapter 2](/views2/1255397/page40/bg28.png)
2-2
Chapter 2: Basic Installation
Chapter 2

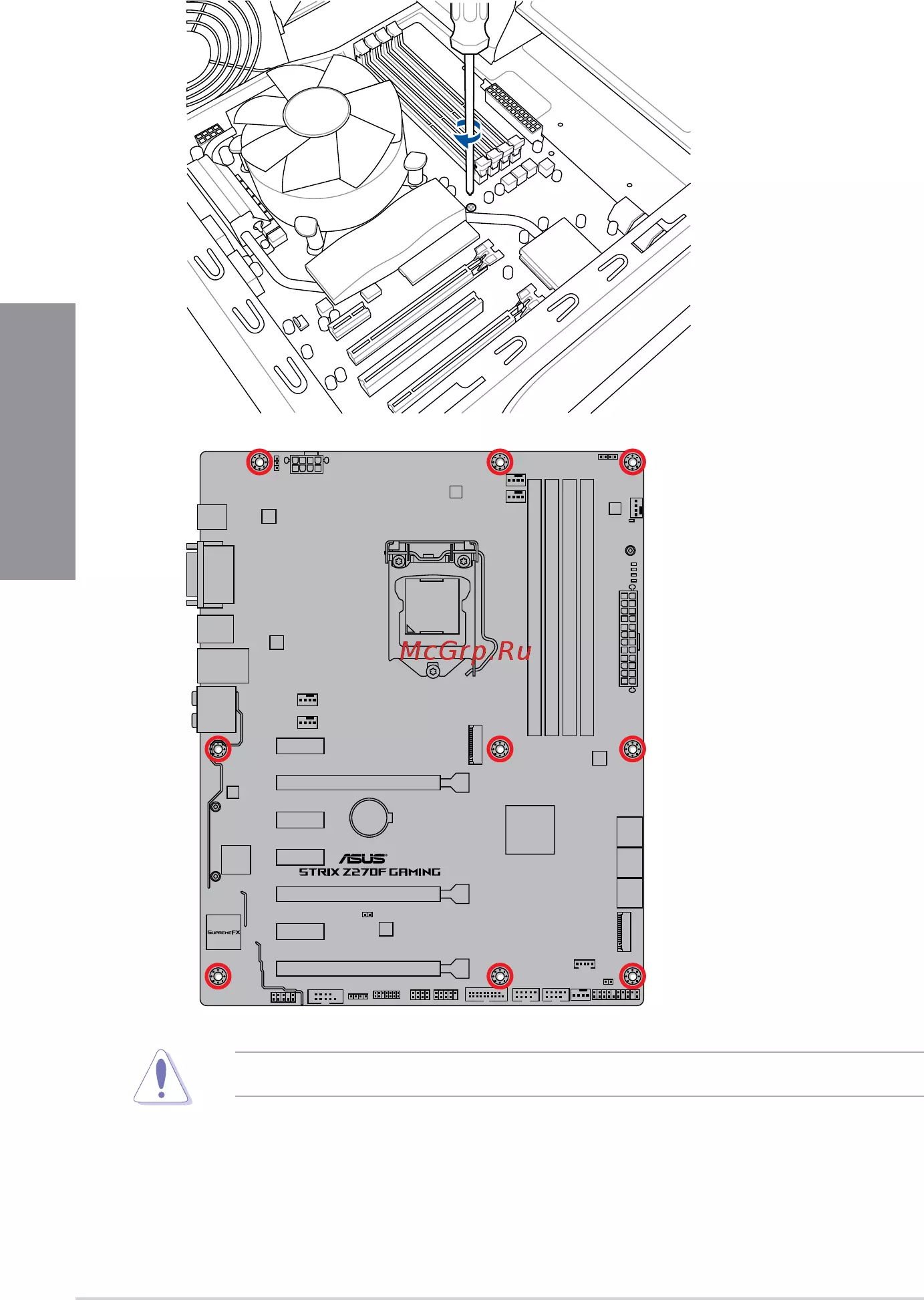

3. Place nine (9) screws into the holes indicated by circles to secure the motherboard to
the chassis.
DO NOT overtighten the screws! Doing so can damage the motherboard.
