TV-IP600/W Wireless Network Camera
51
Upload
Use the Upload menu to setup the configuration for the FTP Server, schedule FTP Server Uploads
and configure manual FTP Server Uploads.

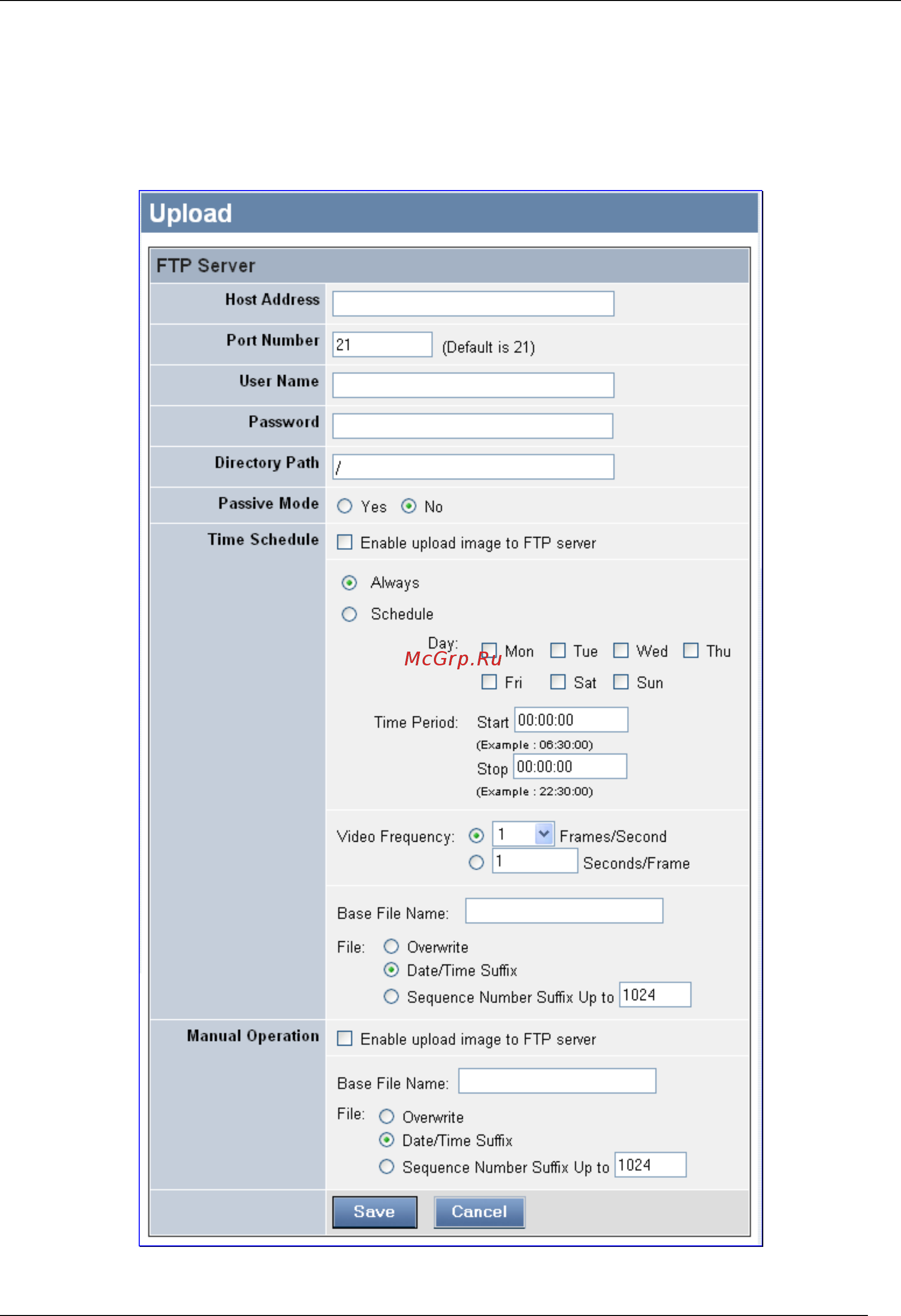

Upload menu
