H-MS1104 (www.hyundai-electronics.ru) 14

 LPCM OUTPUT

Select PCM frequency at 48 kHz or 96 kHz

Note: Some amplifiers don't support 96 kHz sampling and cause coaxial output abnormal. The initial

factory setup is 48 kHz.

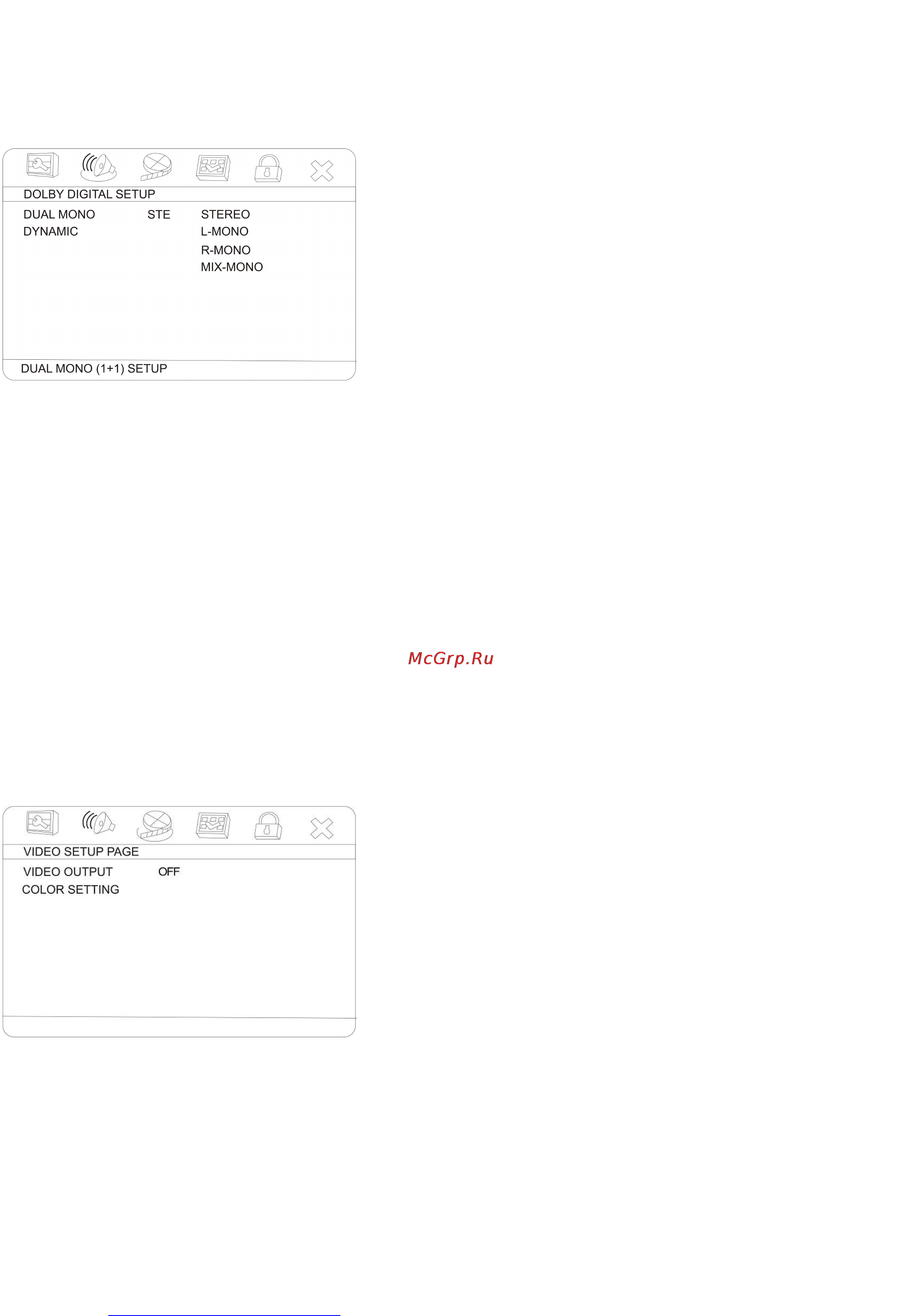

Dolby digital setup

 DUAL MONO

Stereo: stereo output signal,

L-Mono: left output signal,

R-Mono: right output signal,

Mix-Mono: left and right output average signal.

 DYNAMIC

If watching large dynamic scope movie program at night, to select this mode you can reduce the volume to

a very low level, at the same time, to keep the fine details sounds. In this case, this doesn't disturb the

family and keep the quality sounds.

HDCD

You can select the digital filter Off, 1x, 2x. The initial factory setup is 1x.

Karaoke setup

Set the microphone ON or OFF and adjust the microphone volume and echo level.

Video setup

 VIDEO OUTPUT

OFF: set video output to the composite.

YUV: set video output in analog component video format when connecting to Y/U/V terminals

P-YUV: set progressive YUV signals. Connection same as YUV.

RGB: set video output in Red/Green/Blue format when connecting to SCART terminals.

P-RGB: progressive RGB signals. Connection same as RGB.

Note: If the video setting differs with the physical connection, the screen may be without picture. In case

of no picture, you can reset the unit, then keep pressing V-MODE button until the picture is OK again.
