Connection

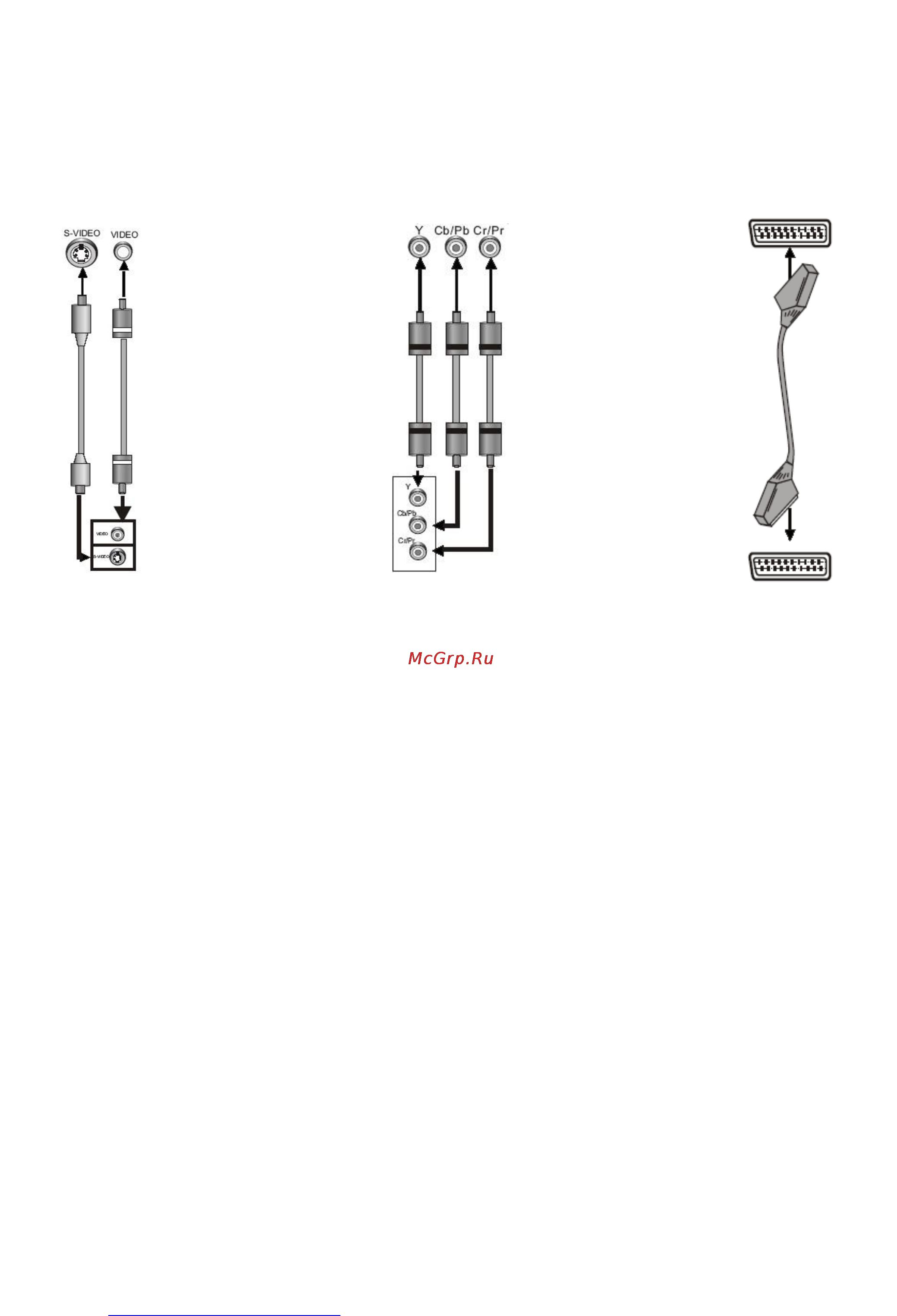

Video system connection

There are four types of video outputs available for this unit.

TV/Monitor video output

Composite Video and Component SCART input

S-video input input

Composite Video and Component

S-Video output Video output SCART output

DVD player video output

Composite video

 Use the cable with yellow plug to connect the composite video output of this unit to the video input of

a TV/monitor.

S-video output

 Use the S-Video cable to connect the S-video output of the unit to S-video input of a TV/monitor.

Component video (YUV or Y/Pb/Pr)

 Use the three cables of A/V cable to connect component output to the corresponding inputs of

TV/monitor.

SCART

 Use a 21-pin SCART cable to connect the SCART output to the TV/monitor SCART input terminal.

Note: Do not connect all the video outputs at the same time, otherwise the image will be affected.
