Leister VULCAN E (Вулкан Е) [3/4] Description of tool

Installation

• The tool should be fixed by using four M6 screws on the installation stand (6).

• When installing the tool, make sure that

- only cold air is sucked in

- no air is sucked in from the hot air tool

- no (warm air) back pressure develops

- the hot air tool is not in direct line of the hot air flow from another hot air tool.

• For use in a dusty environment the tool should be fitted with a LEISTER stainless steel

filter on the air intake connection (4). Where a particularly critical dust problem

exists (eg metal, electrically charged or damp dust) special filters must be used to

avoid short circuiting the tool.

• Protect the tool from vibration and shock.

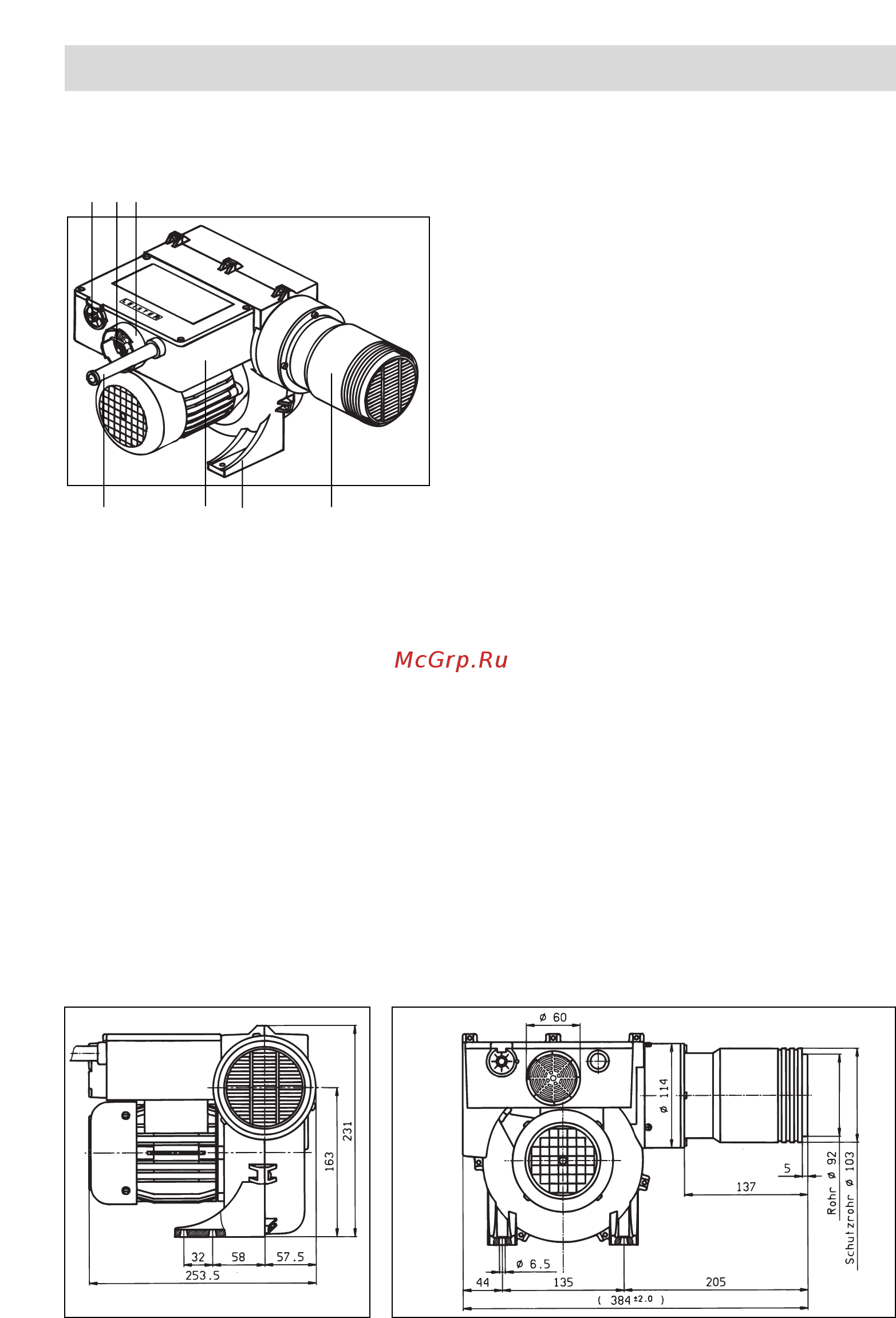

• Installation dimensions in mm.

Description of tool

USAGE LEISTER Vulcan E

1. Strain relief bushing for

cord to mains

2. Potentiometer for temperature

control

3. Air slide

4. Air intake

5. Connection box

6. Installation stand

7. Element housing with

protective tube
