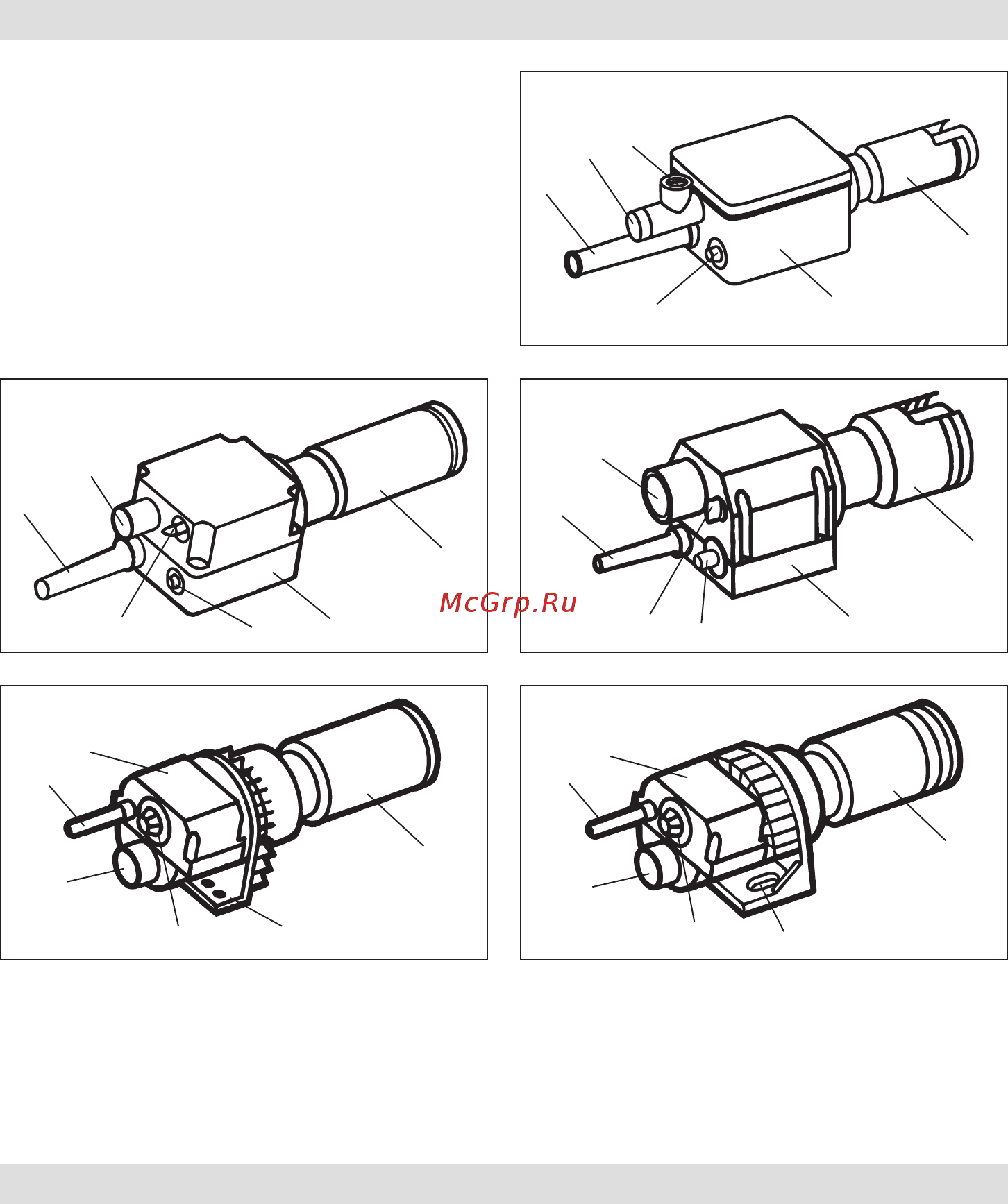

Description of tool
1
8
6
2
5
4
1
2
5
4
6
8
LE 3000 LE 3300
1
8
6
2
5
LE 700
3
1
8
7
2
5
6
LE 5000 LE 10000 S
1
2
5
7
8
6
The device may only be installed by trained personnel.
LE 700, LE 3000, LE 3300 should be fixed by using four M4 screws on the connection housing (6).
LE 5000 should be fixed by using four M5 screws on the installation stand (7).
LE 10000 S should be fixed by using two M8 screws on the installation stand (7).
When installing the tool, ensure that:
– only cold air is sucked in
– no (warm air) back pressure develops
– the device is not subject to jets of hot air from another device.
Protect the tool from vibration and shock.
Installation dimensions, Page 3 and page 4 (Size).
Installation
1 Strain relief bushing for power supply cord
2 Air intake connection
3 Screw for reducing air flow
4
Air regulating knob
5
Potentiometer for temperature adjustment
6
Connection housing
7 Installation stand
8
Element housing with protective sleeve
