_ ADJUSTING THE INCLINATION

The inclination of the CONCORD TRANSFORMER

is continuously adjustable and is locked into the

current position when the seat inclination button

(04) is released.

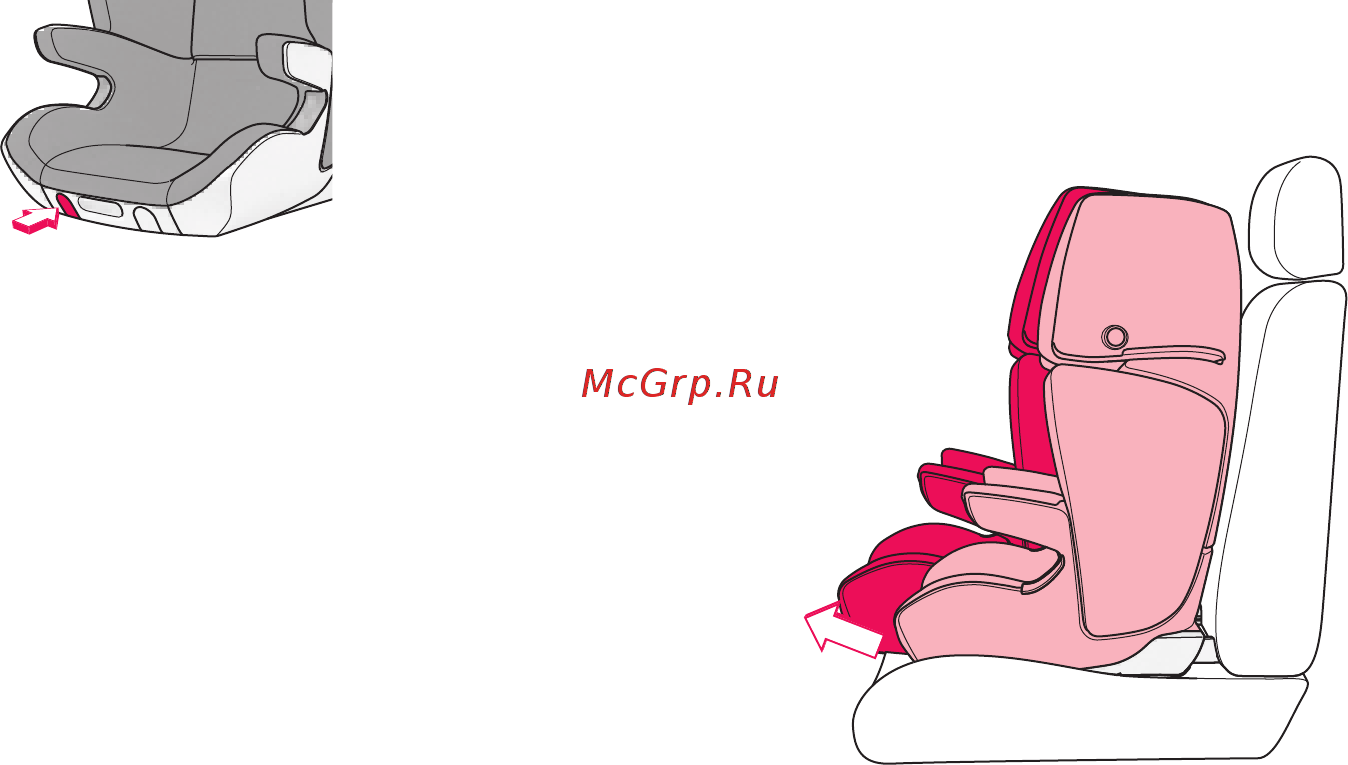

To use the inclination adjuster on

the CONCORD TRANSFORMER,

press the seat inclination button

(04) on the front edge of the seat.

Keeping the button pressed, move

the seat into the required position.

Pull the belt taut so that the lap belt and diagonal belt are well positioned and ensure

that the belts are not twisted. The lap belt should be in the lowest possible position.

If your vehicle is fitted with a seat belt height adjuster, adjust its height accordingly.

When you wish to release the child from the seat, all you need to do is open the lock

and pass the strap back across the child. To remove the shoulder belt from the guide,

press the shoulder belt locking button (06) and pull the belt forwards and out.

It is important to ensure that the belts are always correctly positioned each time the seat

is used. If in doubt about any aspect of fitting, check with CONCORD.

The belts must pass through the guides marked in red on the seat. Belts must not be

routed in any other way.
