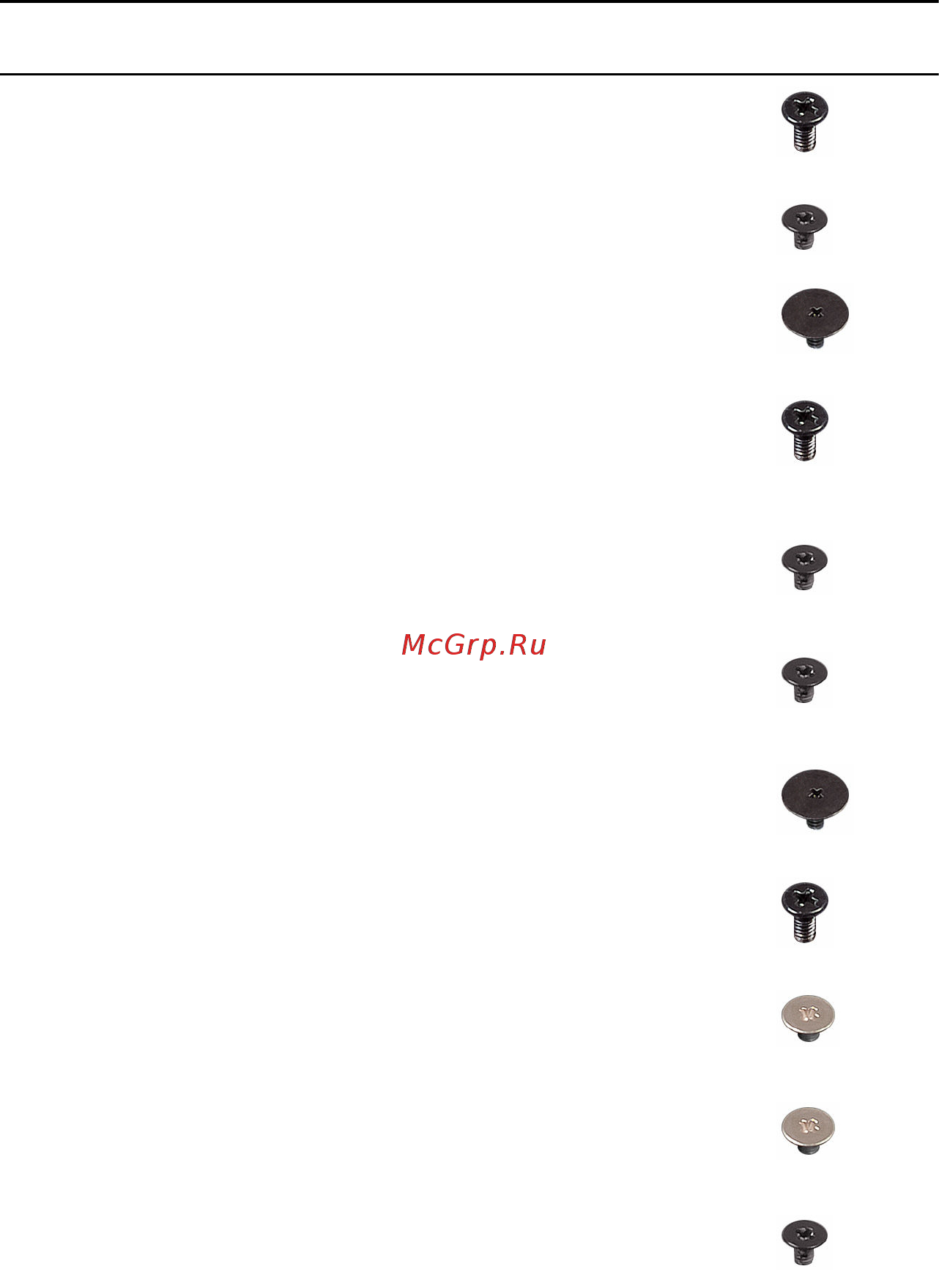

Component Secured to Screw type Quantity Screw
I/O board Palm rest and
keyboard
assembly
M2.5x5 1
Optical-drive
bracket
Optical drive M2x3 2
Optical-drive
interposer
Palm rest and
keyboard
assembly
M2x2 Big
Head
2
Palm rest and
keyboard
assembly
bridge
Palm rest and
keyboard
assembly
M2.5x5 2
Panel Palm rest and
keyboard
assembly
M2x3 4
Power-
adapter port
Palm rest and
keyboard
assembly
M2x3 1
Power-button
board
Palm rest and
keyboard
assembly
M2x2 Big
Head
1
System board Palm rest and
keyboard
assembly
M2.5x5 1
Touch pad Palm rest and
keyboard
assembly
M2x2 4
Touch-pad
bracket
Palm rest and
keyboard
assembly
M2x2 3
Wireless-card
bracket
System board M2x3 1
13
