e. system fan

f. display assembly

g. display bezel

h. display hinges

3. To remove the display :

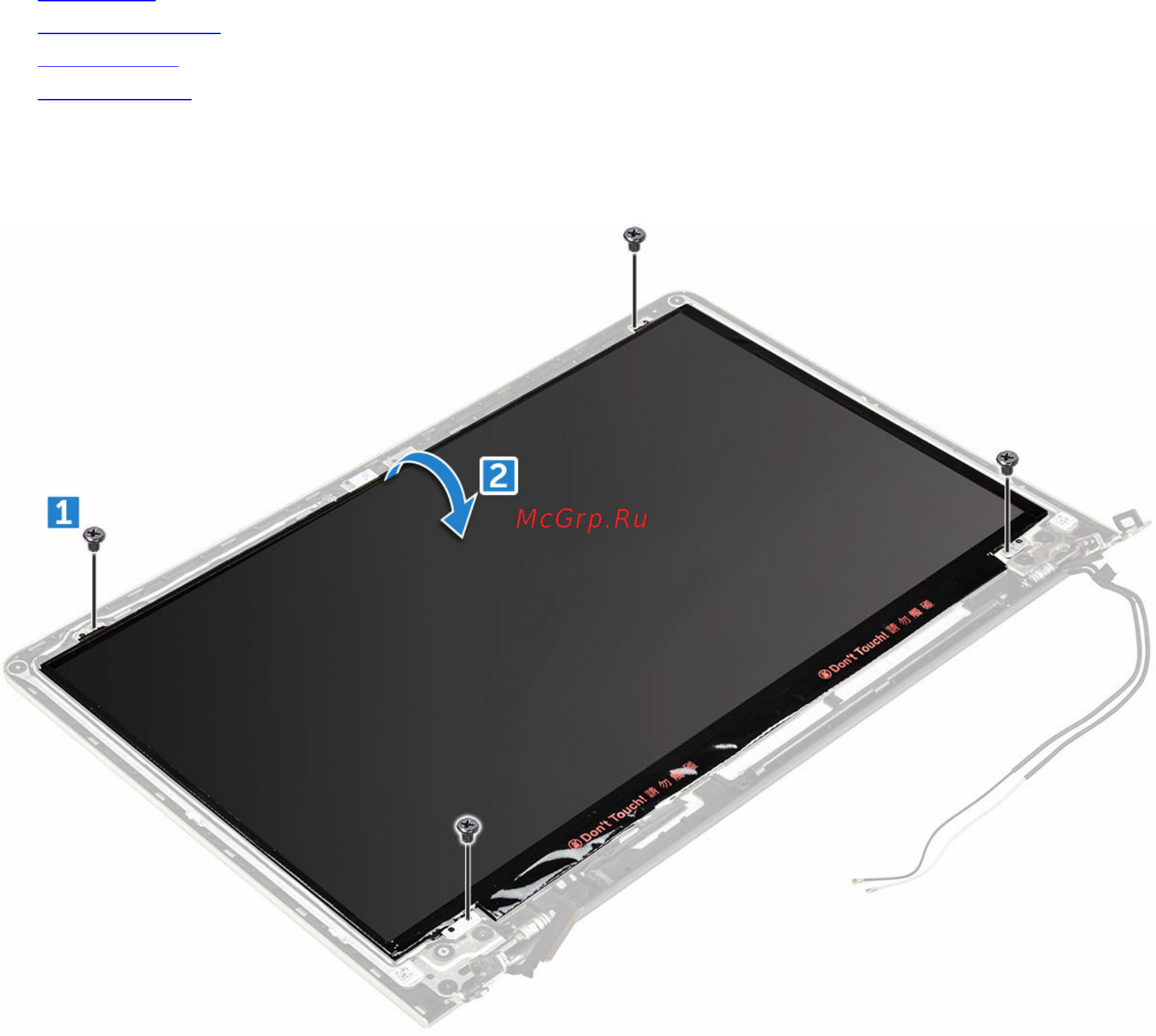

a. Remove the screws that secure the display [1].

b. Lift the display panel and turn it over [2].

4. To remove the display:

a. Peel away the adhesive tape above the display connector [1].

b. Disconnect the display connector and remove the display from the display panel [2] [3].
