Dell Vostro 5568, 5568-3003 [29/84] Installing the fan

Installing the fan

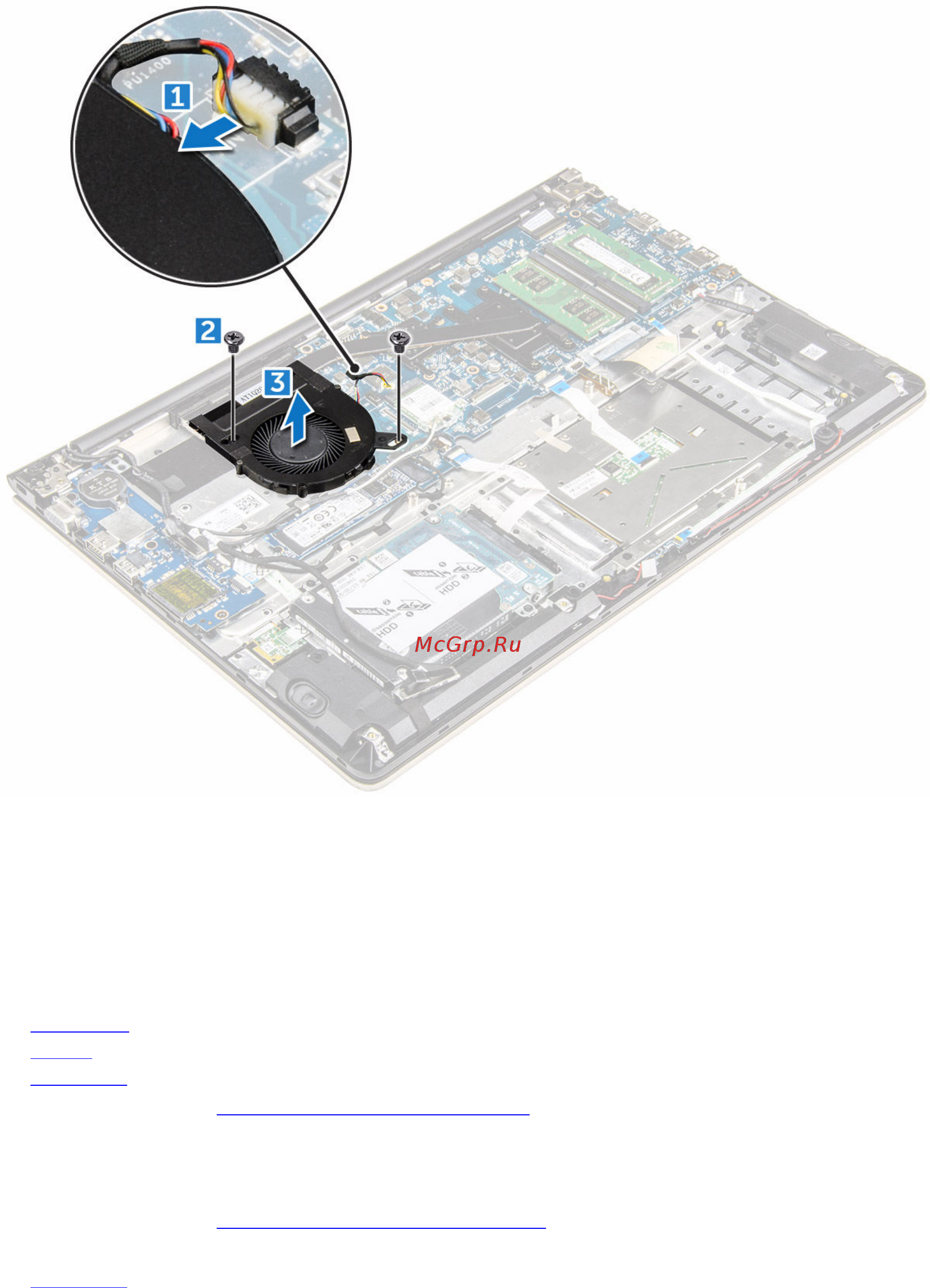

1. Install the fan into the slot on the system board.

2. Tighten the screws to secure the fan module.

3. Connect the I/O board and system fan cable to the system board connectors.

4. Install the:

a. WLAN card

b. battery

c. back cover

5. Follow the procedure in After working inside your computer

Removing the heatsink

1. Follow the procedure in Before working inside your computer.

2. Remove the:

a. back cover
