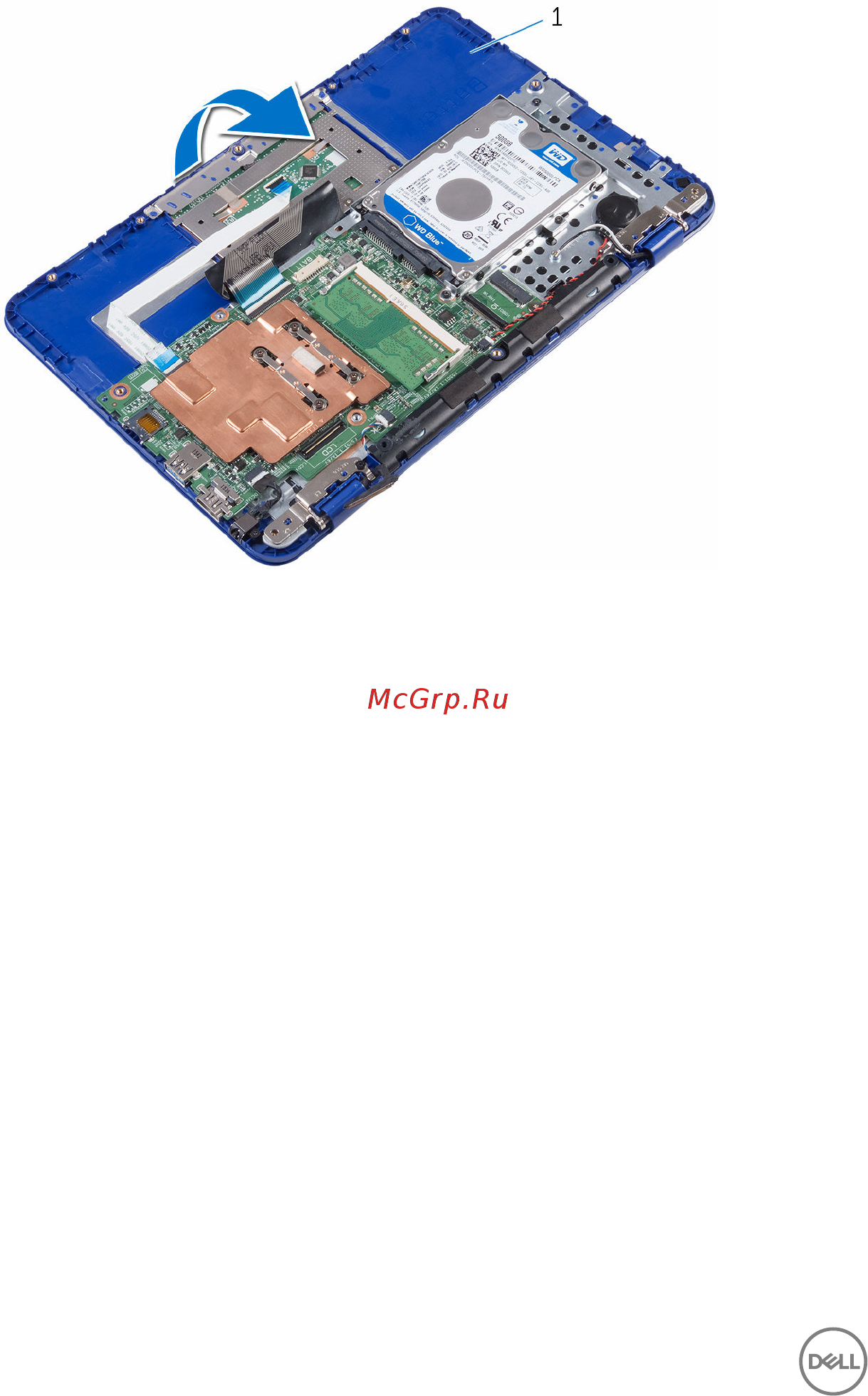

4 Open the palm rest and keyboard assembly at an angle.
1 palm rest and keyboard
assembly
5 Remove the screws that secure the display assembly to the palm rest and
keyboard assembly.
56
