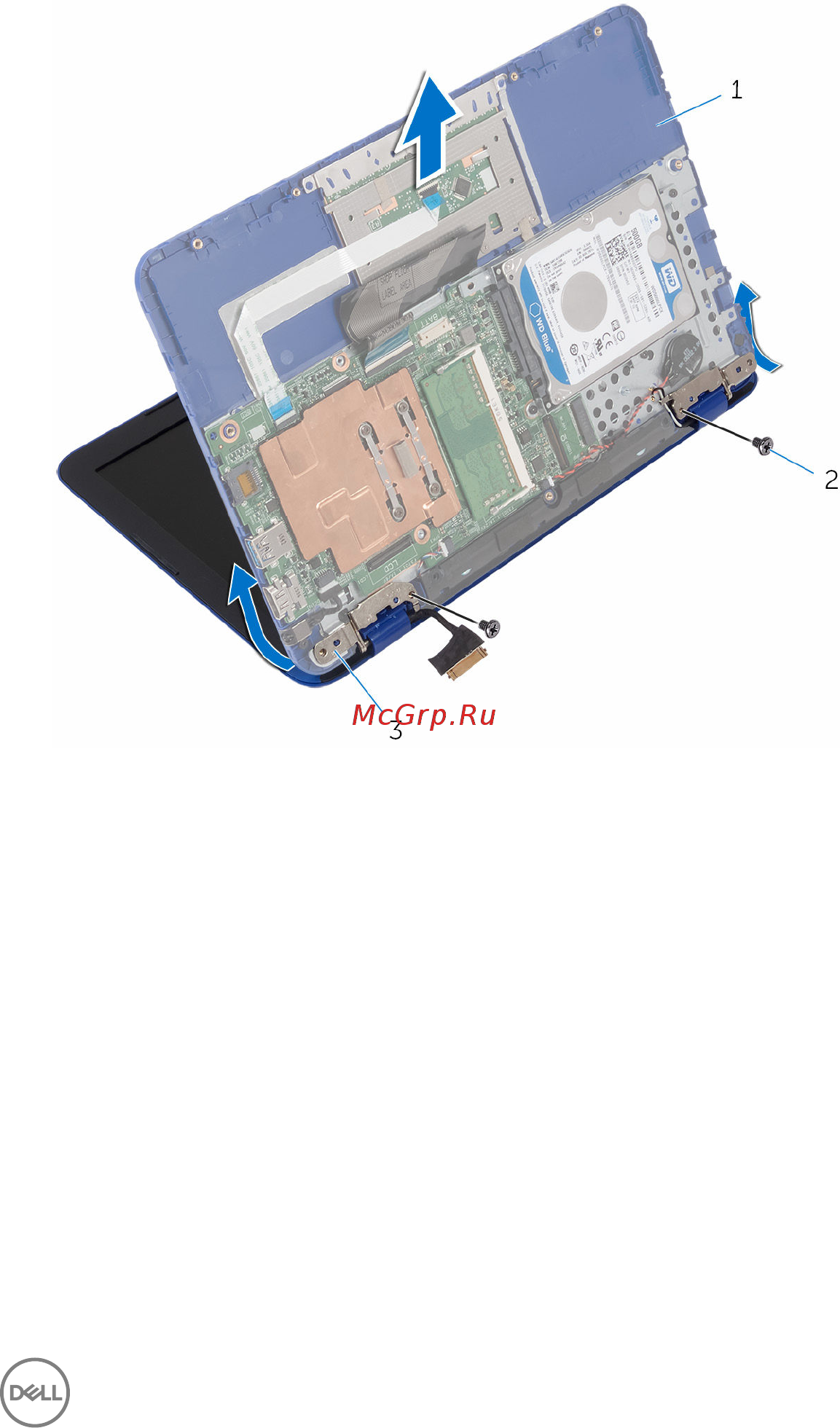

6 Slide and lift the palm rest and keyboard assembly off the display assembly.
1 palm rest and keyboard
assembly
2 screws (2)
3 display hinges (2)
After performing all the steps, we are left with display assembly.
57
