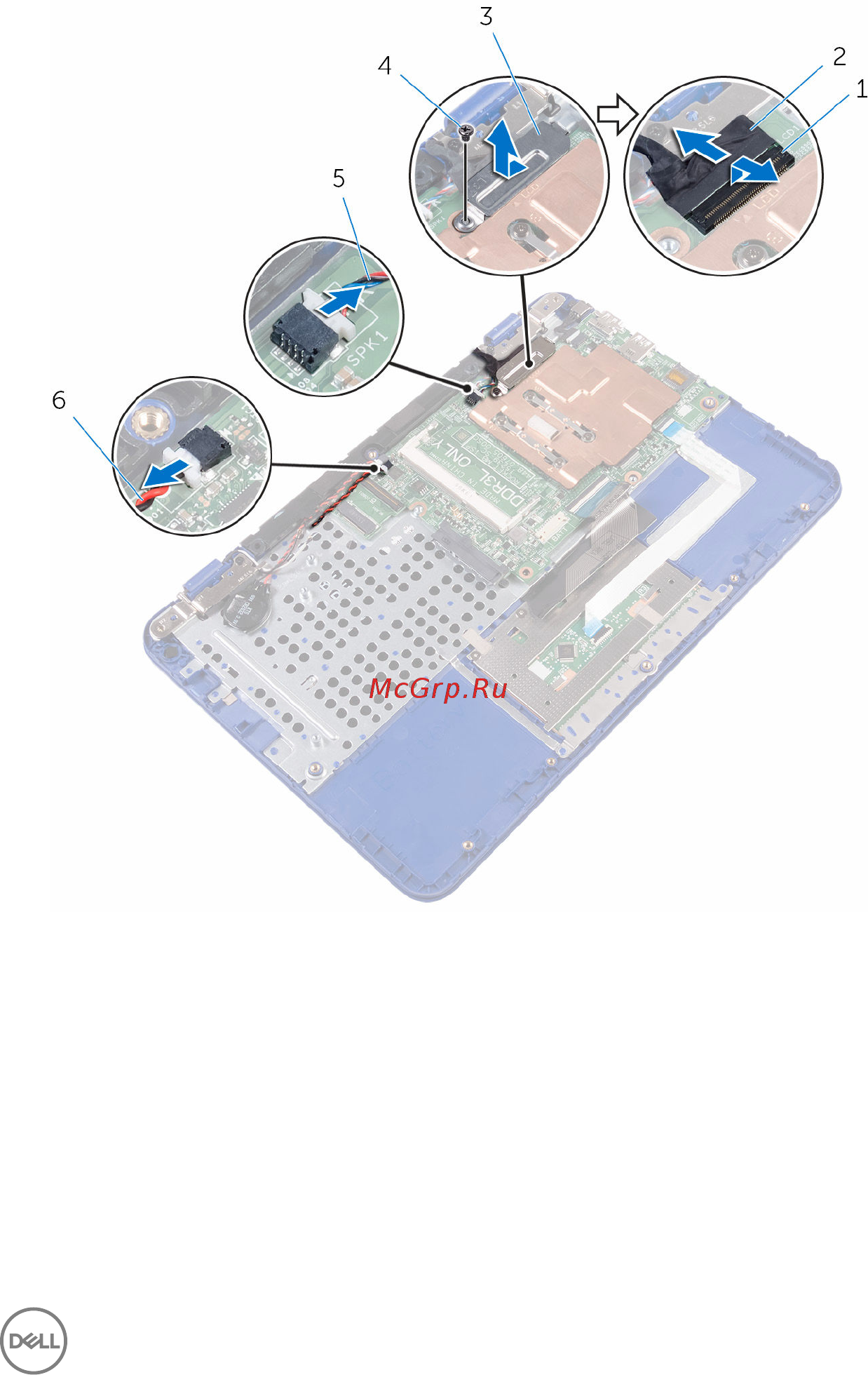

4 Disconnect the coin-cell battery cable from the system board.
1 latch
2 display cable
3 display-cable bracket 4 screw
5 speaker cable 6 coin-cell battery cable
5 Disconnect the power-adapter port cable from the system board.
61
