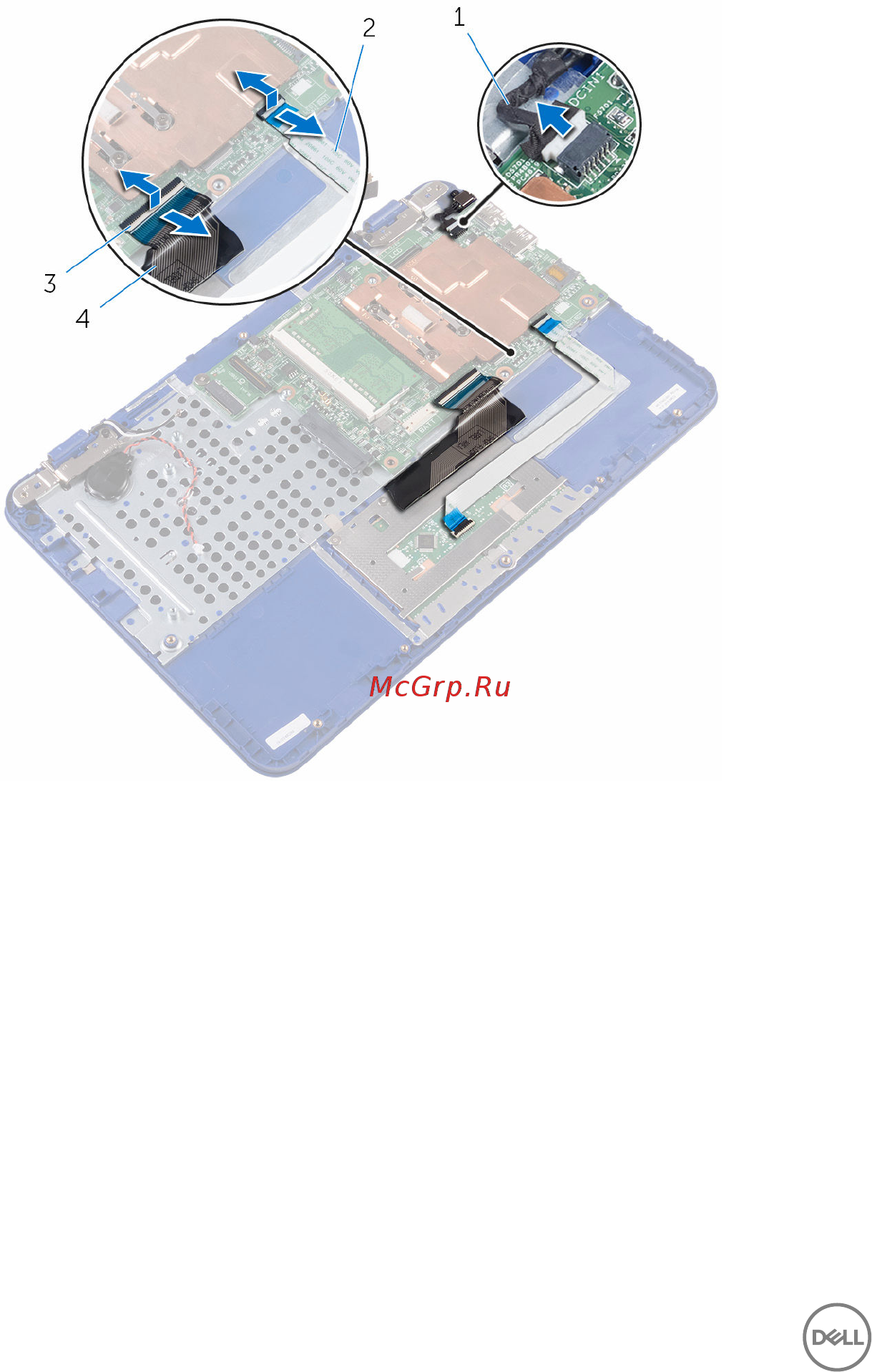

6 Open the latches and disconnect the touch-pad cable and keyboard cable from
the system board.
1 power-adapter port cable
2 touch-pad cable
3 latches (2) 4 keyboard cable
7 Remove the screw that secures the system board to the palm rest and keyboard
assembly.
62
