Screw list

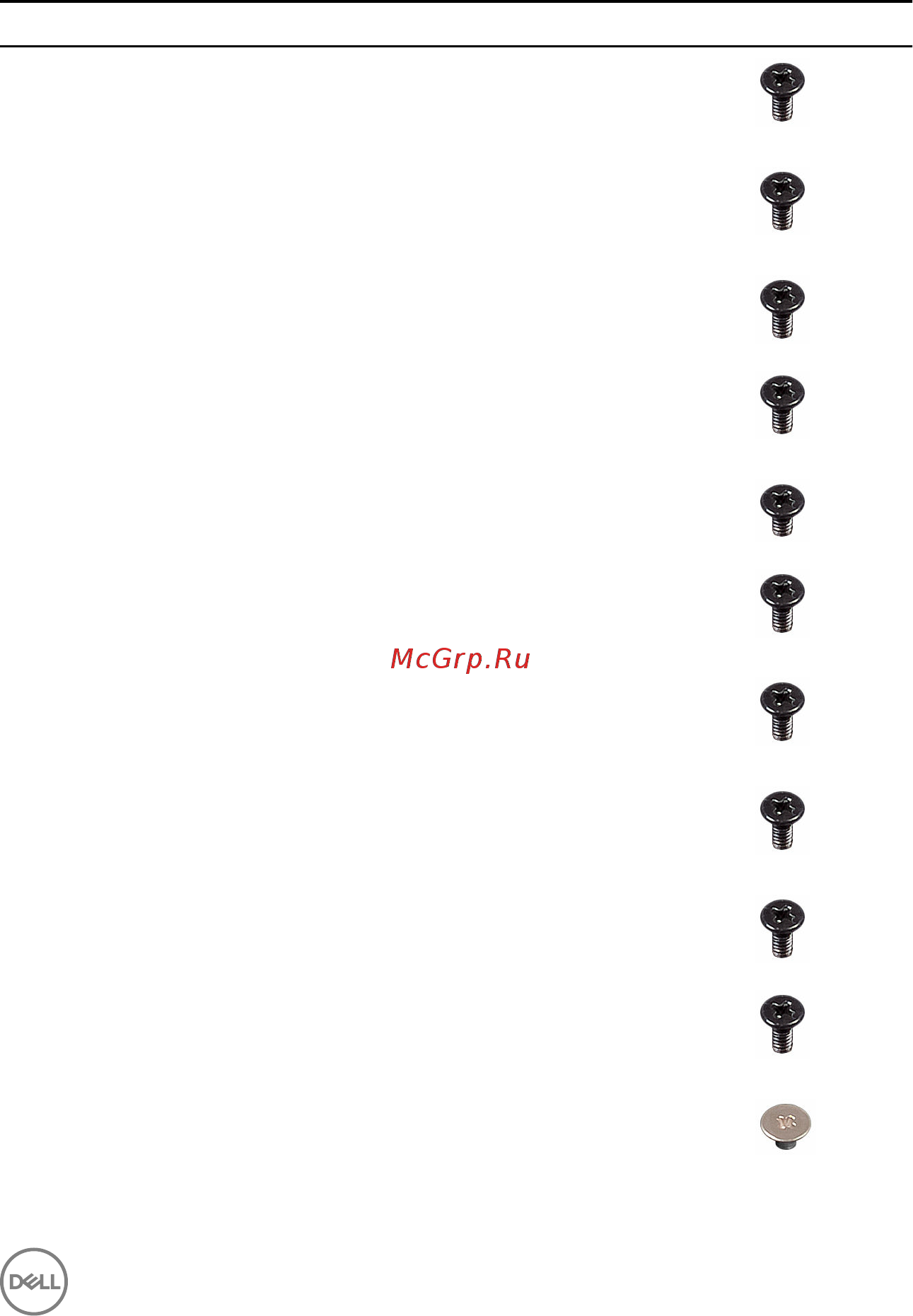

Component Secured to Screw type Quantity Screw image
Base cover
assembly
Palm rest and
keyboard
assembly
M2.5x6 9
Battery Palm rest and
keyboard
assembly
M2x3 3
I/O board Base cover M2x3 1
Hard-drive
assembly
Palm rest and
keyboard
assembly
M2x3 3
Hard-drive
bracket
Hard drive M3x3 4
eMMC-card
assembly
Palm rest and
keyboard
assembly
M2x3 3
Power-adapter
port
Palm rest and
keyboard
assembly
M2x3 1
Wireless card Palm rest and
keyboard
assembly
M2x3 1
Display-cable
bracket
System board M2x3 1
Display
assembly
Palm rest and
keyboard
assembly
M2.5x6 2
System board Palm rest and
keyboard
assembly
M2x2 1
11
Содержание
- Inspiron 11 3000 service manual 1
- Caution a caution indicates either potential damage to hardware or loss of data and tells you how to avoid the problem 2
- Note a note indicates important information that helps you make better use of your product 2
- Notes cautions and warnings 2
- Warning a warning indicates a potential for property damage personal injury or death 2
- After working inside your computer 3 3
- Before working inside your computer 9 3
- Contents 3
- Inspiron 11 3000 service manual 3
- Removing the base cover 14 3
- Removing the battery 0 3
- Removing the i o board 25 3
- Replacing the base cover 19 3
- Replacing the battery 24 3
- Removing the emmc card assembly 37 4
- Removing the hard drive 3 4
- Removing the memory module 9 4
- Removing the power adapter port 0 4
- Replacing the emmc card assembly 39 4
- Replacing the hard drive 36 4
- Replacing the i o board 8 4
- Replacing the memory module 31 4
- Removing the coin cell battery 8 5
- Removing the display assembly 54 5
- Removing the speaker 1 5
- Removing the wireless card 43 5
- Replacing the coin cell battery 0 5
- Replacing the power adapter port 42 5
- Replacing the speaker 3 5
- Replacing the wireless card 45 5
- Removing the display bezel 9 6
- Removing the display hinges 3 6
- Removing the palm rest and keyboard assembly 6 6
- Removing the system board 60 6
- Replacing the display assembly 9 6
- Replacing the display bezel 72 6
- Replacing the palm rest and keyboard assembly 8 6
- Replacing the system board 4 6
- Flashing the bios 87 7
- Removing the camera 0 7
- Removing the display back cover and antenna assembly 4 7
- Removing the display panel 6 7
- Replacing the camera 83 7
- Replacing the display back cover and antenna assembly 6 7
- Replacing the display hinges 75 7
- Replacing the display panel 9 7
- Getting help and contacting dell 8 8
- Before working inside your computer 9
- Before you begin 9
- Safety instructions 9
- Recommended tools 10
- Screw list 11
- After working inside your computer 13
- Procedure 14
- Removing the base cover 14
- Procedure 19
- Replacing the base cover 19
- Prerequisites 20
- Procedure 20
- Removing the battery 20
- Post requisites 24
- Procedure 24
- Replacing the battery 24
- Prerequisites 25
- Procedure 25
- Removing the i o board 25
- Post requisites 28
- Procedure 28
- Replacing the i o board 28
- Prerequisites 29
- Procedure 29
- Removing the memory module 29
- Procedure 31
- Replacing the memory module 31
- Post requisites 32
- Prerequisites 33
- Procedure 33
- Removing the hard drive 33
- Post requisites 36
- Procedure 36
- Replacing the hard drive 36
- Prerequisites 37
- Procedure 37
- Removing the emmc card assembly 37
- Post requisites 39
- Procedure 39
- Replacing the emmc card assembly 39
- Prerequisites 40
- Procedure 40
- Removing the power adapter port 40
- Post requisites 42
- Procedure 42
- Replacing the power adapter port 42
- Prerequisites 43
- Procedure 43
- Removing the wireless card 43
- Procedure 45
- Replacing the wireless card 45
- Post requisites 47
- Prerequisites 48
- Procedure 48
- Removing the coin cell battery 48
- Post requisites 50
- Procedure 50
- Replacing the coin cell battery 50
- Prerequisites 51
- Procedure 51
- Removing the speaker 51
- Post requisites 53
- Procedure 53
- Replacing the speaker 53
- Prerequisites 54
- Procedure 54
- Removing the display assembly 54
- Post requisites 59
- Procedure 59
- Replacing the display assembly 59
- Prerequisites 60
- Procedure 60
- Removing the system board 60
- Procedure 64
- Replacing the system board 64
- Post requisites 65
- Prerequisites 66
- Procedure 66
- Removing the palm rest and keyboard assembly 66
- Post requisites 68
- Procedure 68
- Replacing the palm rest and keyboard assembly 68
- Prerequisites 69
- Procedure 69
- Removing the display bezel 69
- Post requisites 72
- Procedure 72
- Replacing the display bezel 72
- Prerequisites 73
- Procedure 73
- Removing the display hinges 73
- Post requisites 75
- Procedure 75
- Replacing the display hinges 75
- Prerequisites 76
- Procedure 76
- Removing the display panel 76
- Post requisites 79
- Procedure 79
- Replacing the display panel 79
- Prerequisites 80
- Procedure 80
- Removing the camera 80
- Post requisites 83
- Procedure 83
- Replacing the camera 83
- Prerequisites 84
- Procedure 84
- Removing the display back cover and antenna assembly 84
- Post requisites 86
- Procedure 86
- Replacing the display back cover and antenna assembly 86
- Flashing the bios 87
- Getting help and contacting dell 88
- Self help resources 88
- Contacting dell 89
