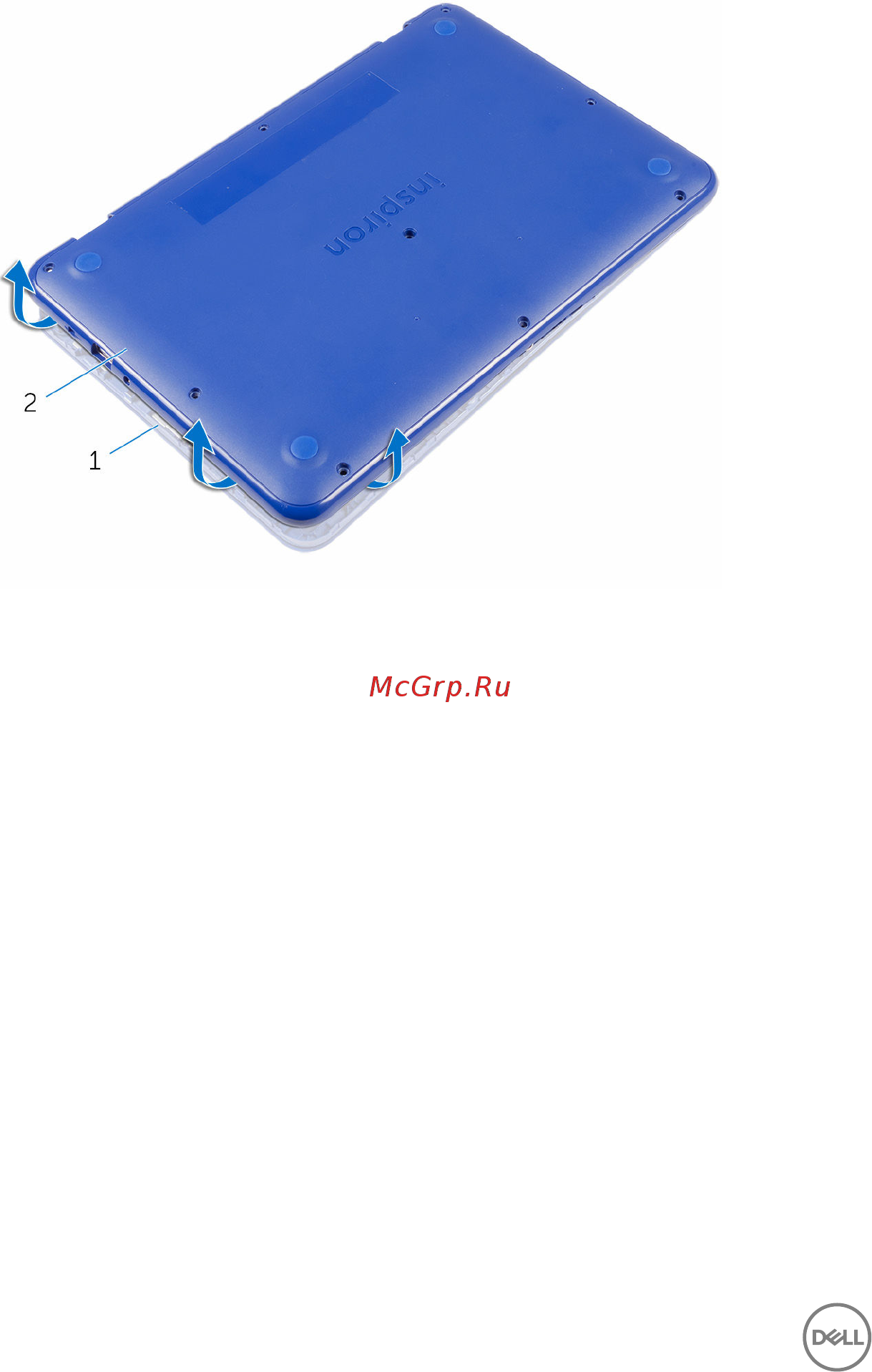

4 Pry loose the left side of the base-cover assembly from the palm rest and
keyboard assembly.
1 palm-rest and keyboard
assembly
2 base-cover assembly
16
