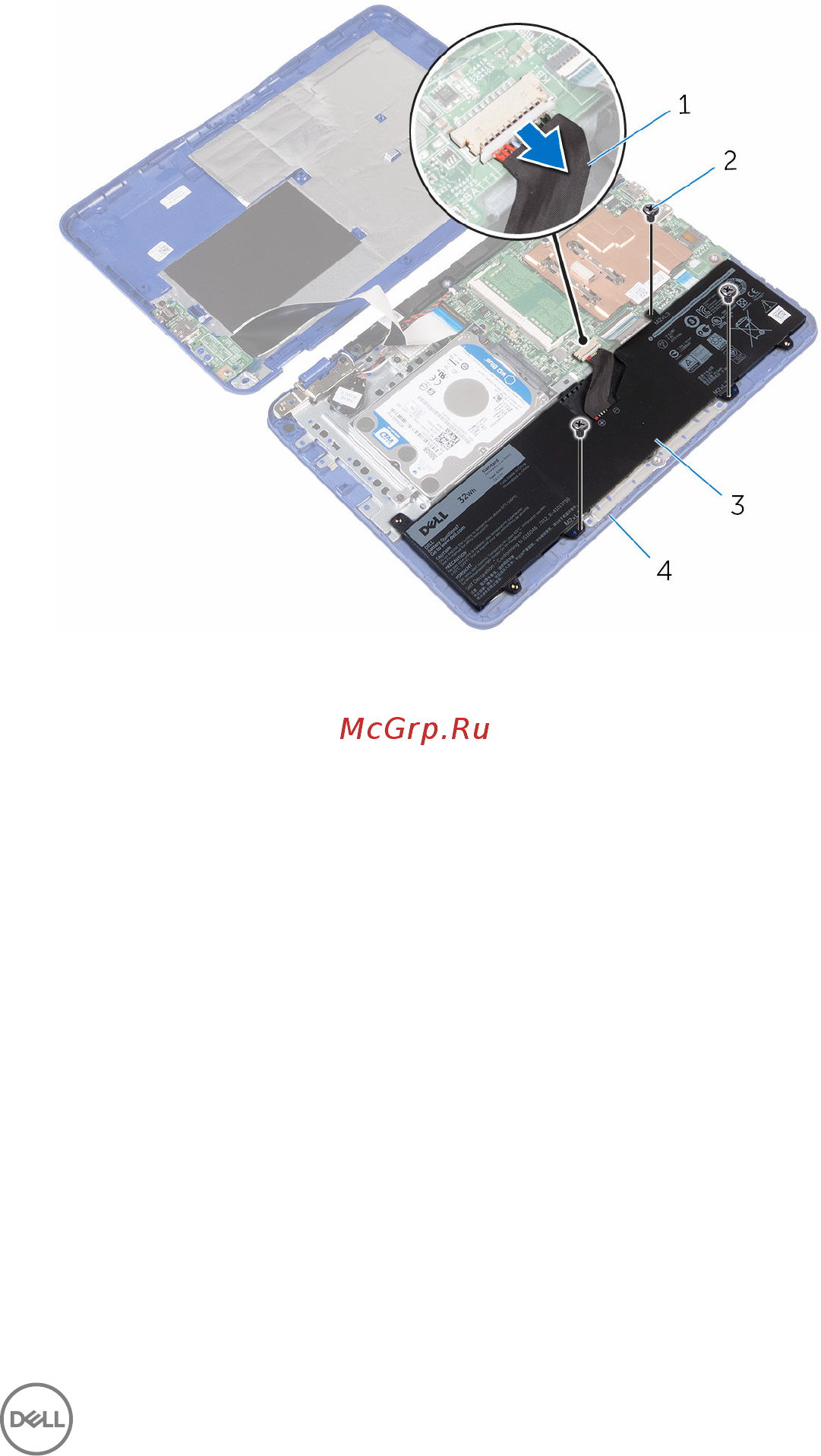

2 Remove the screws that secure the battery to the palm rest and keyboard
assembly.
1 battery cable
2 screws (3)
3 battery 4 palm rest and keyboard
assembly
3 Tilt the battery (applicable for configuration with hard drive only) to release the
tab on the battery from the hard-drive bracket.
21
