Dell Inspiron 3162, 3162-3041 Инструкция по эксплуатации онлайн [23/89] 221691
![Dell Inspiron 3162, 3162-3041 Инструкция по эксплуатации онлайн [23/89] 221691](/views2/1264510/page23/bg17.png)

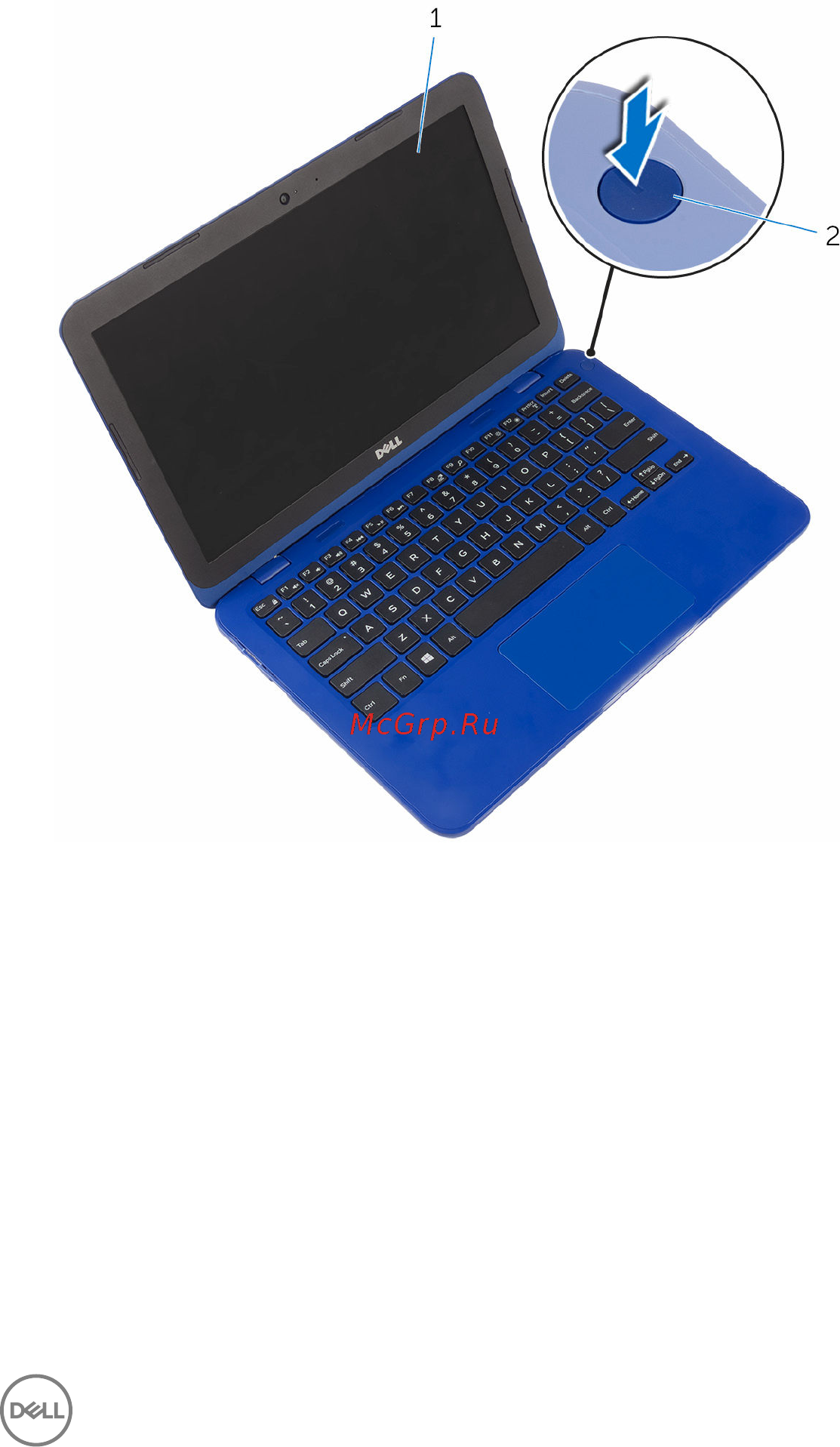

6 Turn the computer over, open the display, and press the power button for five
seconds to ground the system board.
1 display
2 power button
23
