Dell Inspiron 3162, 3162-3041 Инструкция по эксплуатации онлайн [30/89] 221691
![Dell Inspiron 3162, 3162-3041 Инструкция по эксплуатации онлайн [30/89] 221691](/views2/1264510/page30/bg1e.png)

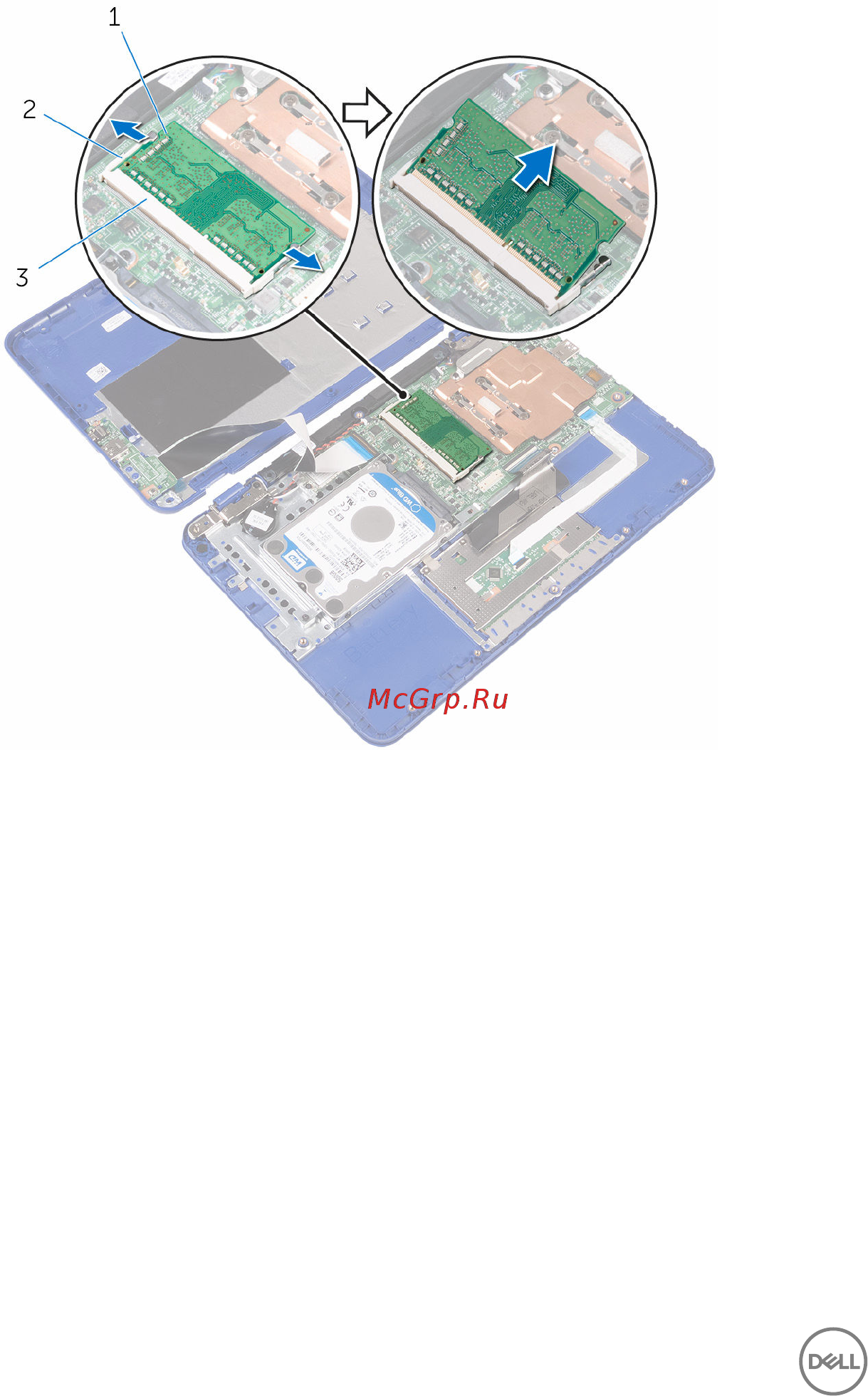

2 Remove the memory module from the memory-module slot.
1 memory module
2 securing clips (2)
3 memory-module slot
30
