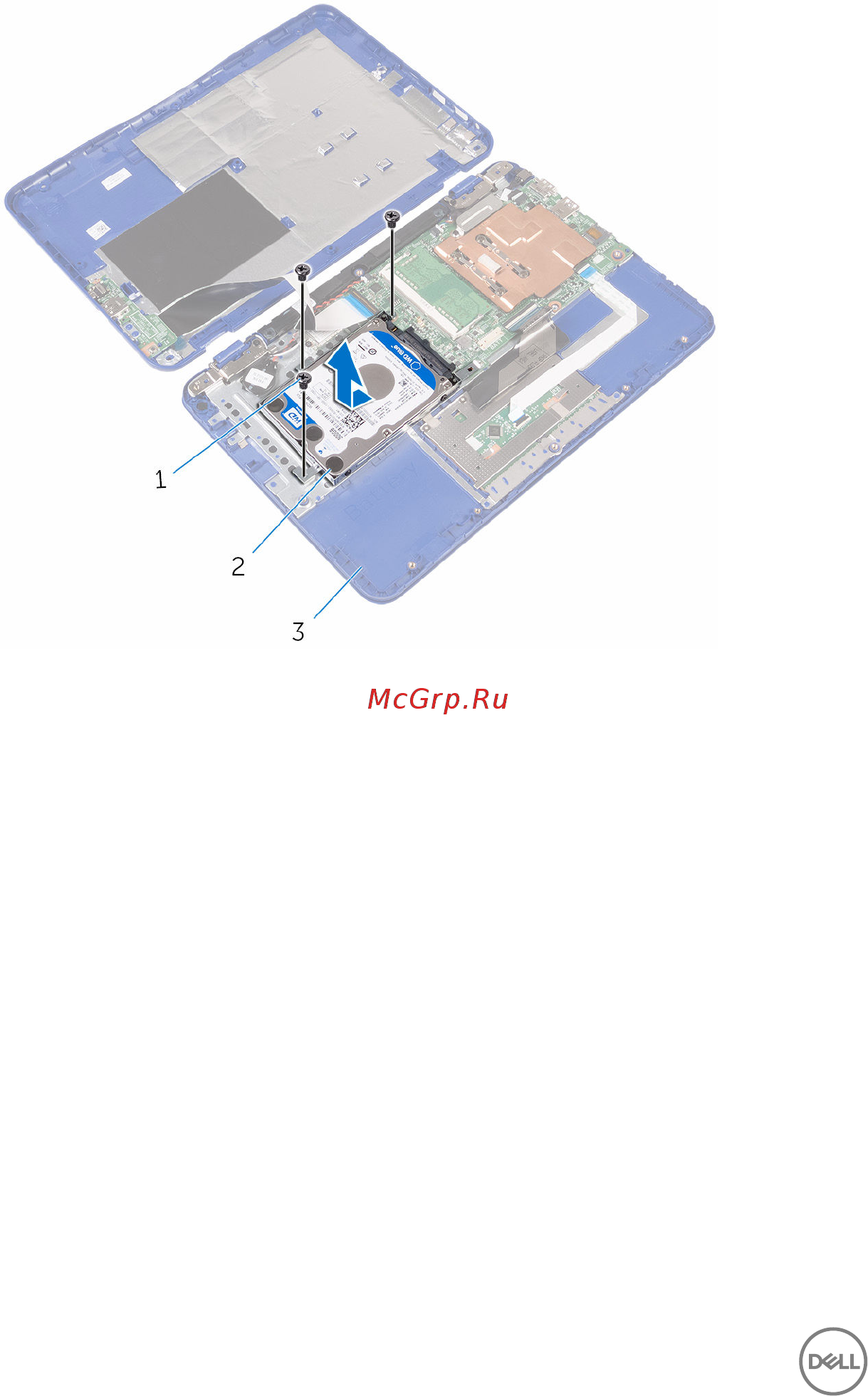

2 Slide and lift the hard-drive assembly off the palm rest and keyboard assembly.
1 screws (3)
2 hard-drive assembly
3 palm rest and keyboard
assembly
3 Remove the screws that secure the hard-drive bracket to the hard drive.
34
