Dell Inspiron 3162, 3162-3041 Инструкция по эксплуатации онлайн [38/89] 221691
![Dell Inspiron 3162, 3162-3041 Инструкция по эксплуатации онлайн [38/89] 221691](/views2/1264510/page38/bg26.png)

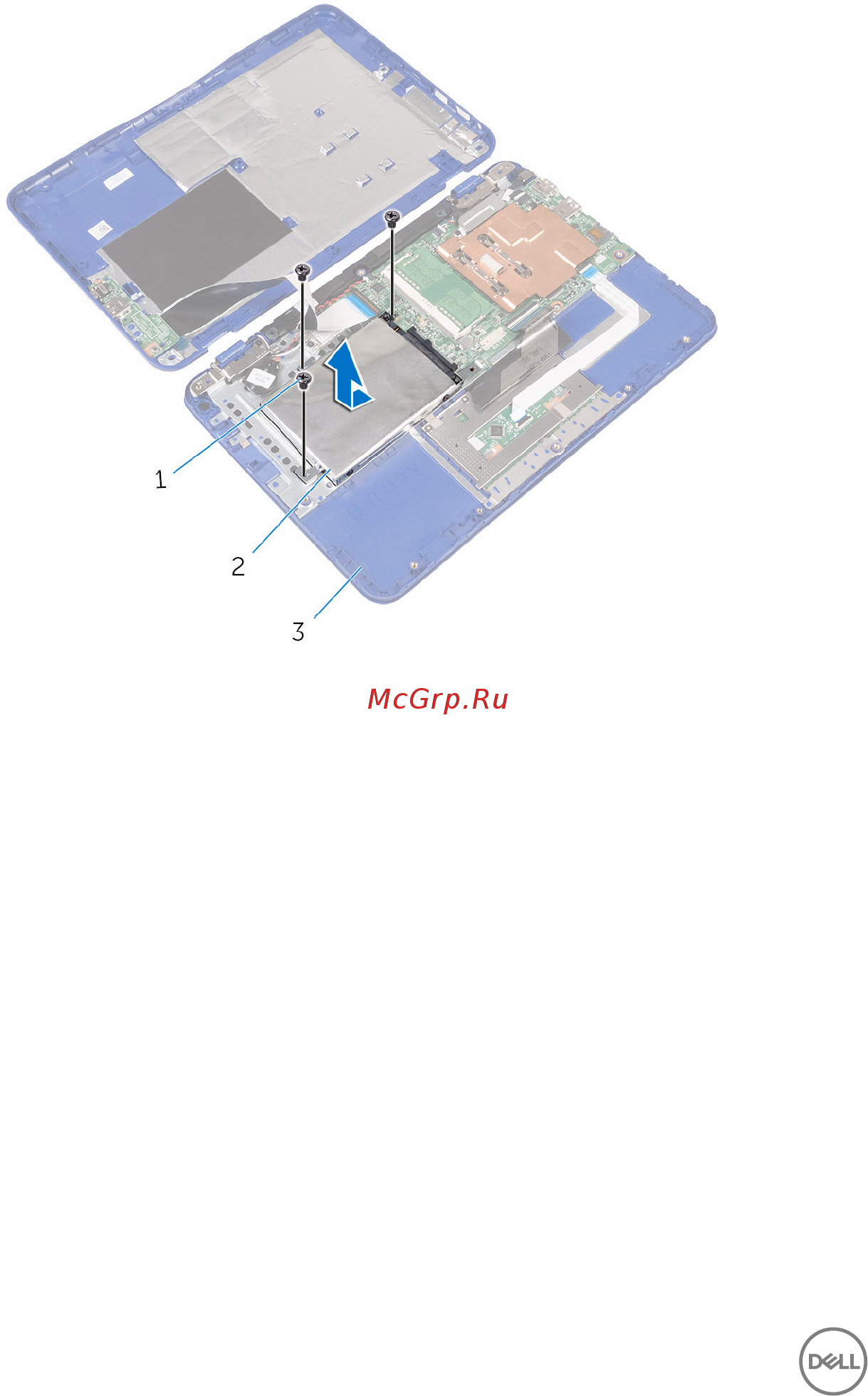

2 Slide and lift the eMMC-card assembly off the palm rest and keyboard assembly.
1 screws (3) 2 eMMC-card assembly
3 palm rest and keyboard
assembly
38
