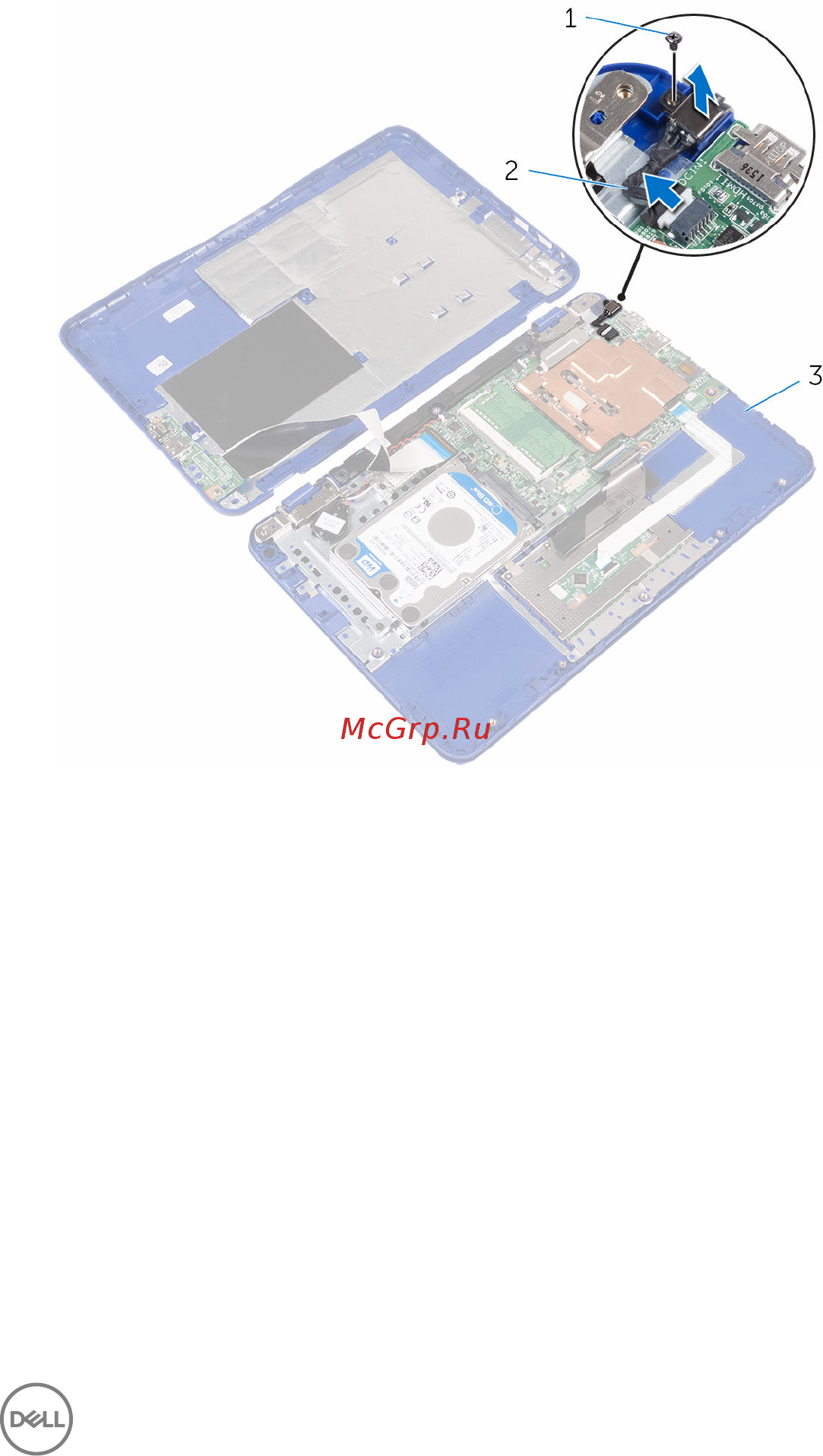

3 Lift the power-adapter port with its cable, off the palm rest and keyboard
assembly.
1 screw
2 power-adapter port cable
3 palm rest and keyboard
assembly
41
