Dell Inspiron 3162, 3162-3041 Инструкция по эксплуатации онлайн [44/89] 221691
![Dell Inspiron 3162, 3162-3041 Инструкция по эксплуатации онлайн [44/89] 221691](/views2/1264510/page44/bg2c.png)

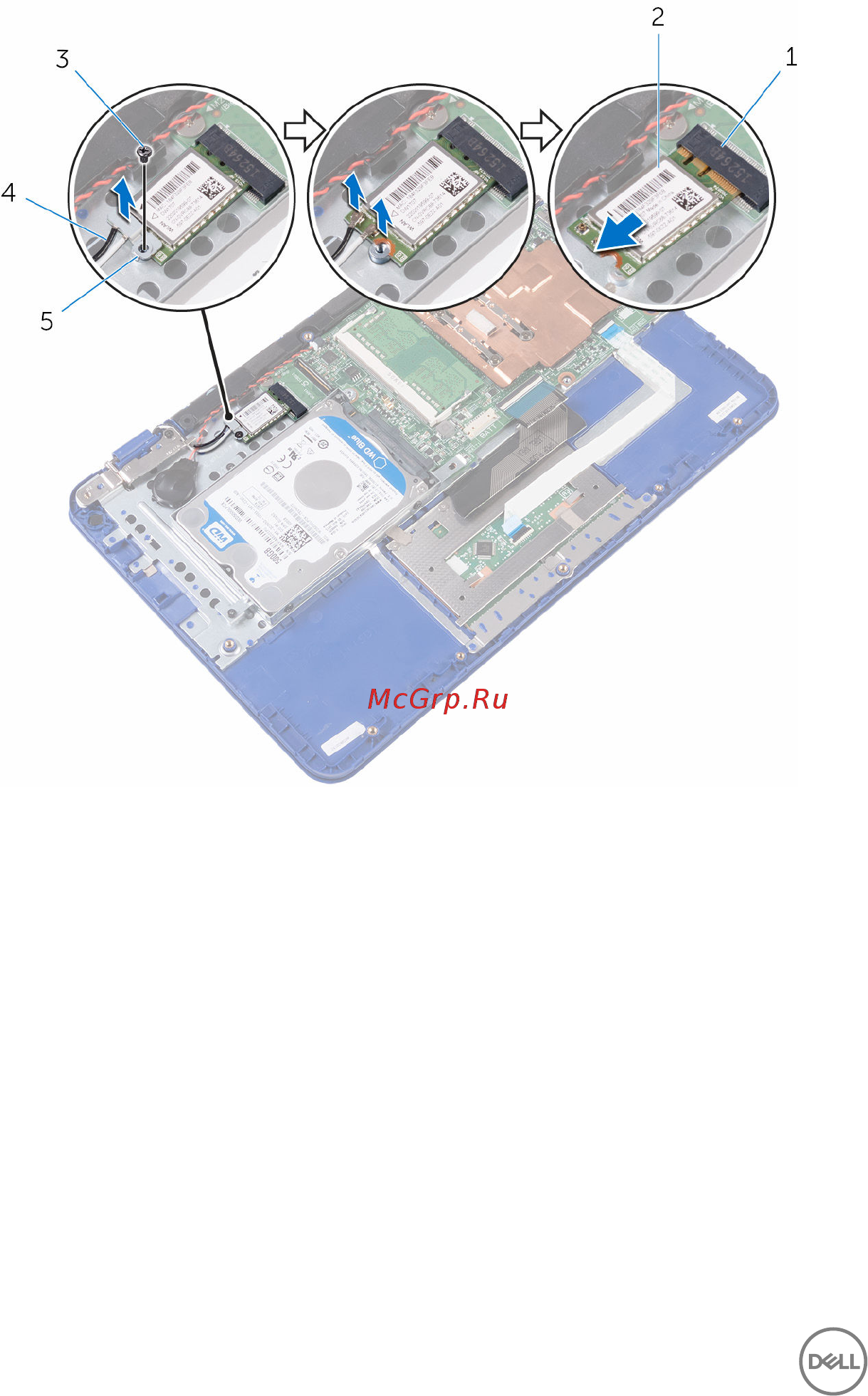

4 Slide the wireless card from the wireless-card slot on the system board.
1 wireless-card slot
2 wireless card
3 screw 4 antenna cables (2)
5 wireless-card bracket
44
