Dell Inspiron 3162, 3162-3041 Инструкция по эксплуатации онлайн [46/89] 221691
![Dell Inspiron 3162, 3162-3041 Инструкция по эксплуатации онлайн [46/89] 221691](/views2/1264510/page46/bg2e.png)

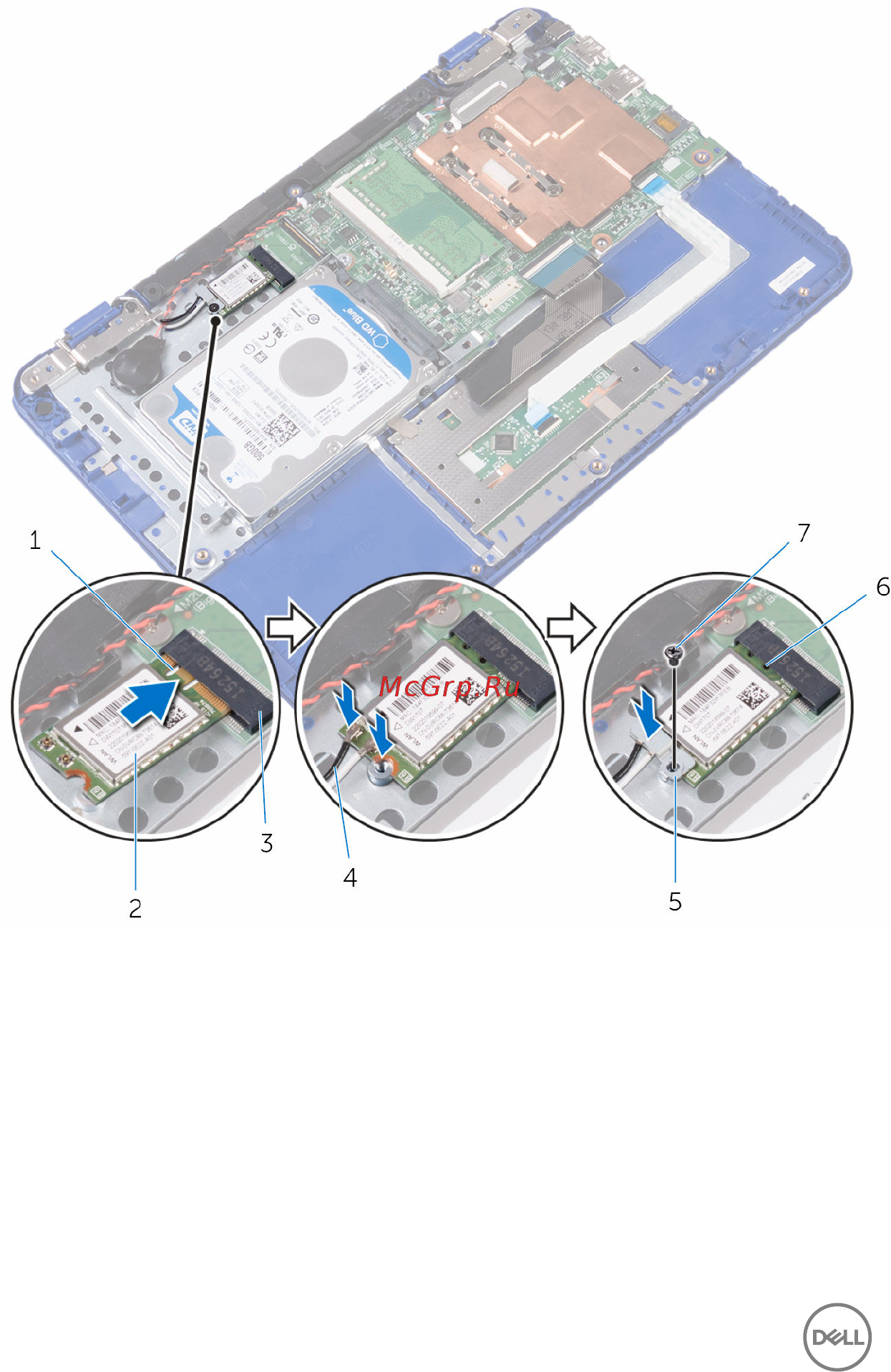

5 Replace the screw that secures the wireless card to the palm rest and keyboard
assembly.
1 notch
2 wireless card
3 wireless-card slot 4 antenna cables (2)
5 wireless-card bracket 6 tab
7 screw
46
