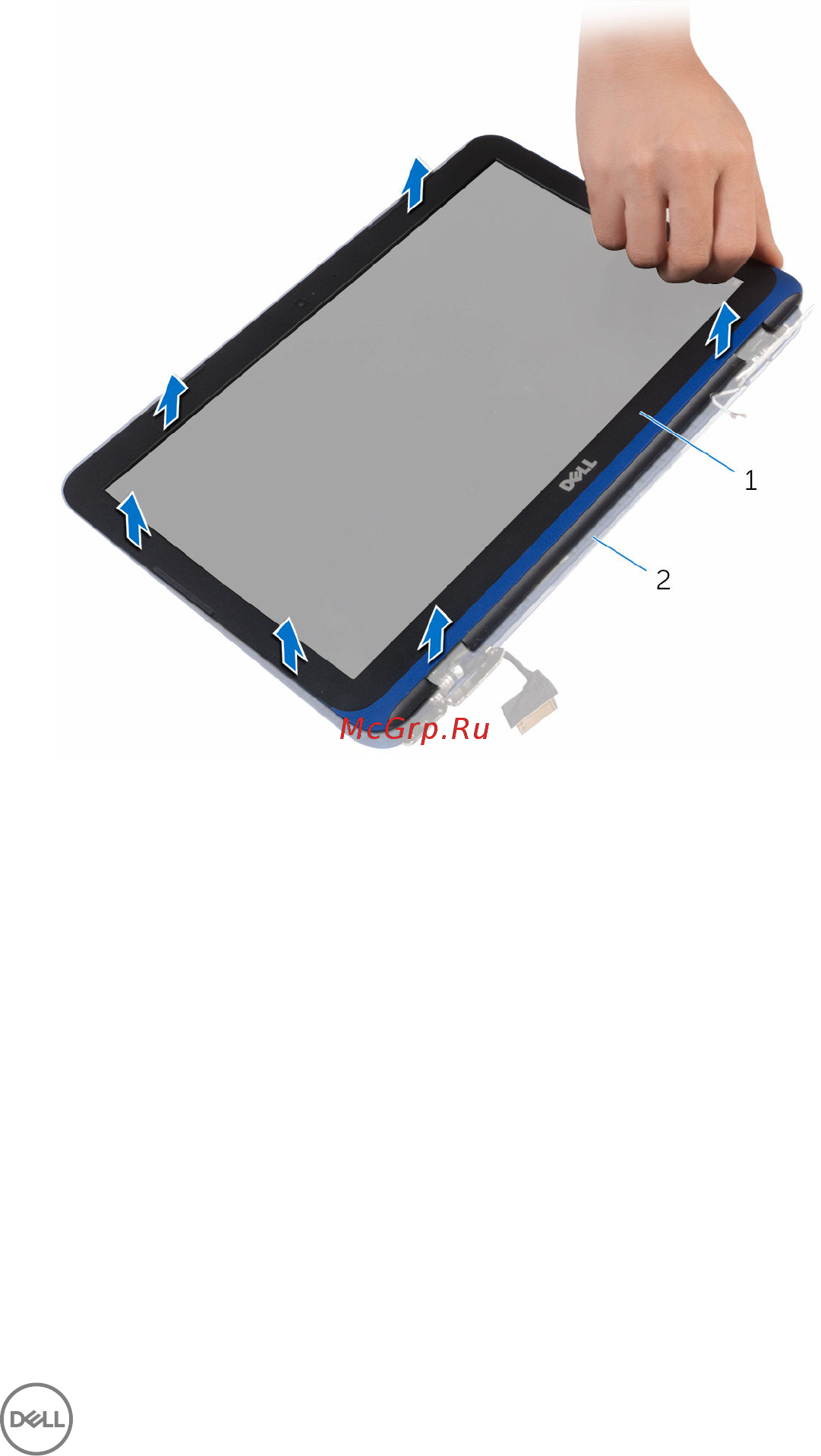

3 Using your finger tips gently pry and lift the display bezel off the display back-
cover and antenna assembly.
1 display bezel
2 display back-cover and
antenna assembly
71
