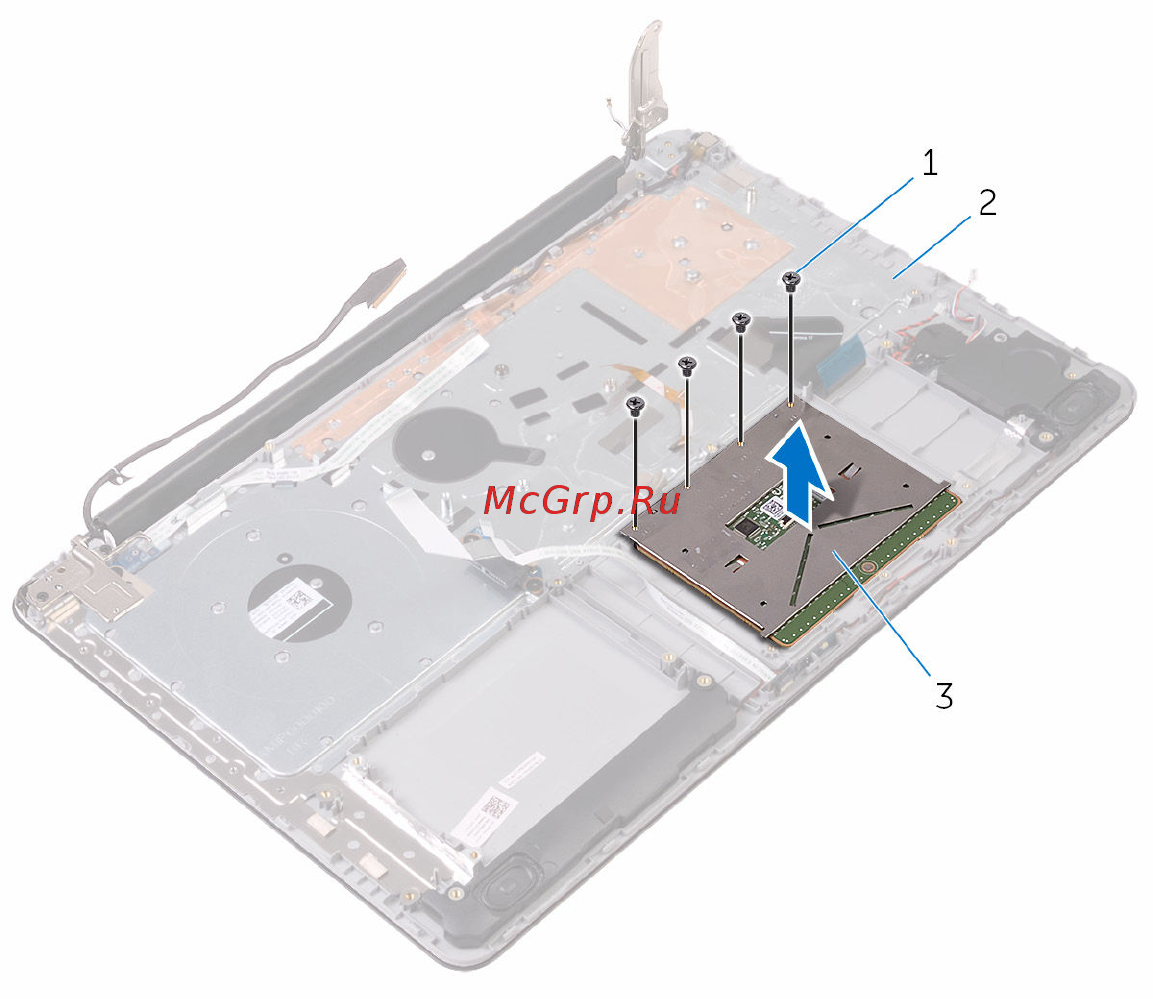

7 Lift the touch pad off the palm rest and keyboard assembly.
1 M2x2 screws (4) 2 palm rest and keyboard
assembly
3 touch pad
69
