Fig. 5. Speaker assembly scheme

Fig. 1. Control panel

bceg

dhf

6. CONTROL PANEL

a : Turn oﬀ Windows Media Player or iTunes.

Automatically starts the player’s default

b : Mute

c : Turning oﬀ the microphone input

d : Play/Pause

e : Previous Track

f : Volume +

g : Volume -

h : Next track

i : Headphone jack

j : Microphone jack

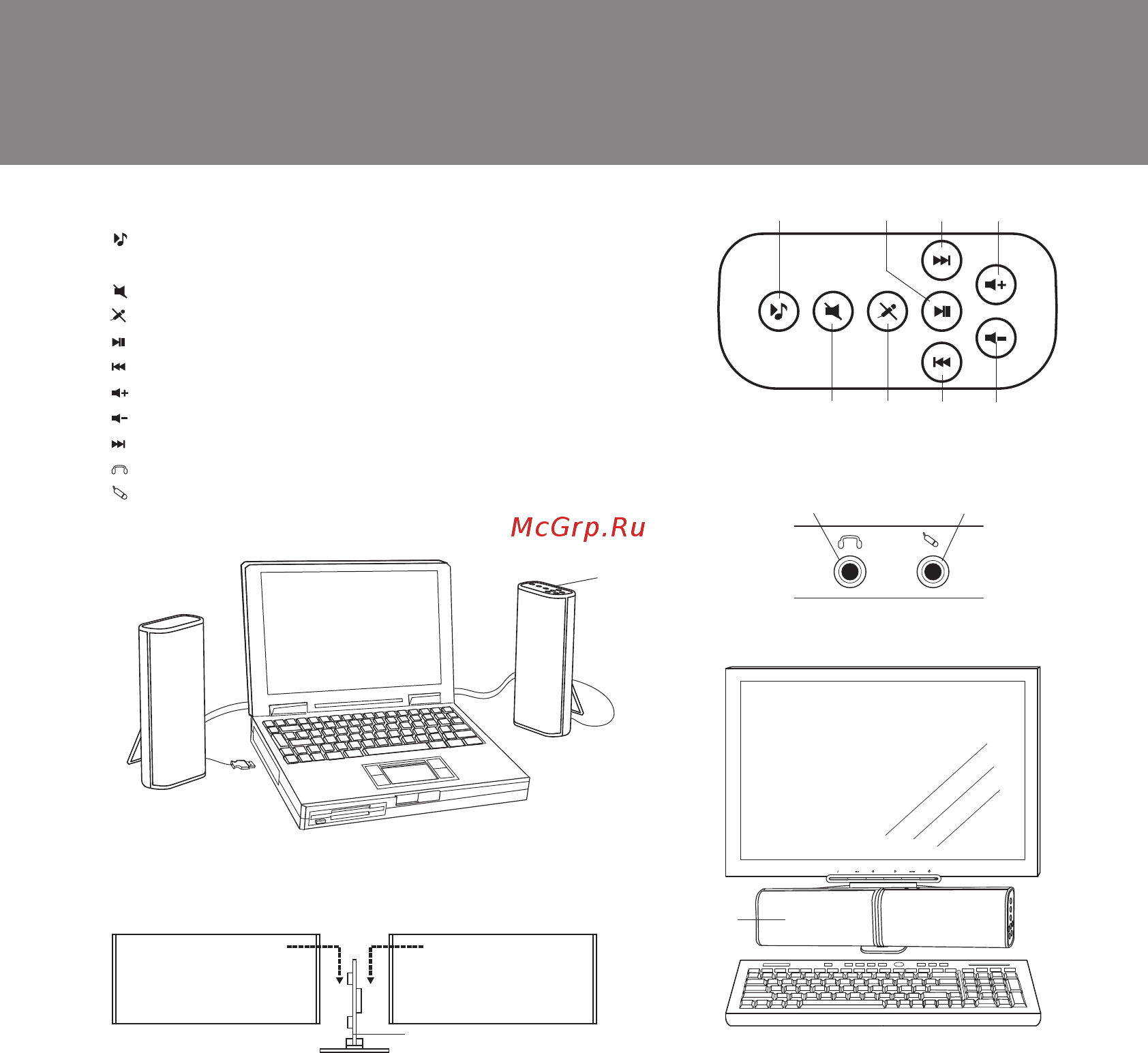

Fig. 4. Connection diagram to PC

Fig. 3. Connection diagram to laptop

USB

Fig. 2. Side panel jacks

Control

panel

Assembled

speakers

on the stand

Speaker Speaker

Stand

7. INSTALLATION AND OPERATION GUIDE

PS-34 Multimedia Speaker System (MSS) can be connected to USB-port on your computer or laptop

(see connection diagram, ﬁg. 3 and 4).

• After turning on your computer or laptop, wait until system had loading.

• Plug USB-cable to the USB-port on your computer or laptop.

• Adjust speaker volume level by Windows tools or using volume knobs f and g on the control

panel at your own discretion.

• Please unplug USB cable after shutting down your laptop or PC.
