Step 2: Connecting the NC-9100h to an

Unshielded Twisted Pair 10BASE-T or

100BASE-TX Ethernet Network

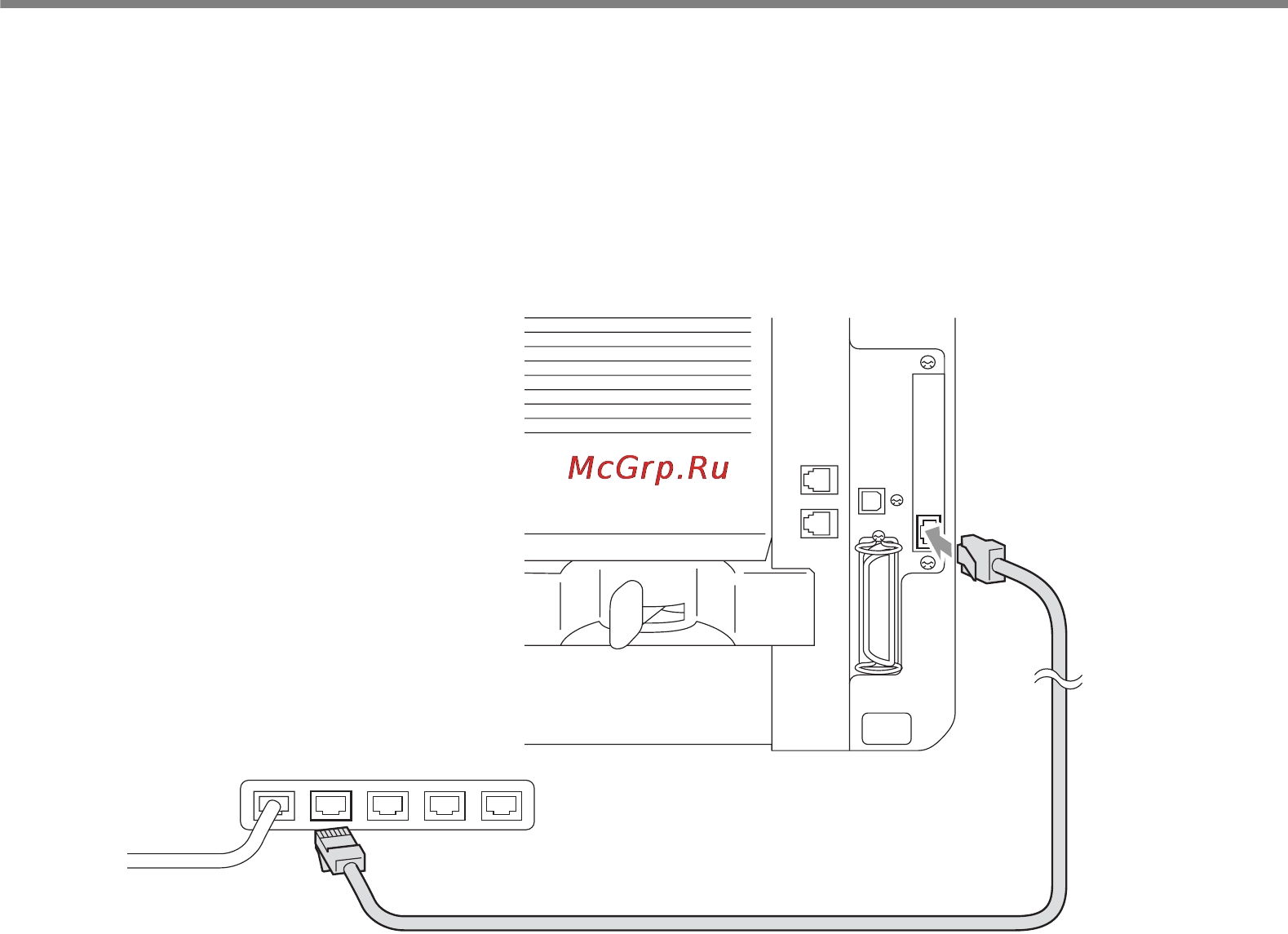

To connect the NC-9100h to a 10BASE-T or 100BASE-TX Network,

you must have an Unshielded Twist Pair Cable. One side of the cable

must be connected to a free port on your Ethernet hub and the other

side must be connected to the 10BASE-T or 100BASE-TX connector

(an RJ45 Connector) of the NC-9100h.

Verifying successful hardware Installation:

Plug in the AC power cord. After initialization and warm-up (this may

take several seconds), the machine will come to a Ready state.

LED

No light:

If both of the two LEDs are off, then the print server is not connected

to the network.

Link/Speed LED is orange: Fast Ethernet

This Link/Speed LED will be orange if the print server is connected

to a 100BASETX Fast Ethernet network.

Link/Speed LED is green: 10 BASE T Ethernet

This Link/Speed LED will be green if the print server is connected to

a 10 BASE T Ethernet.
