Securing the speakers

Position the speaker into the mounting hole and re-confirm the correct mounting location and hole

placement.

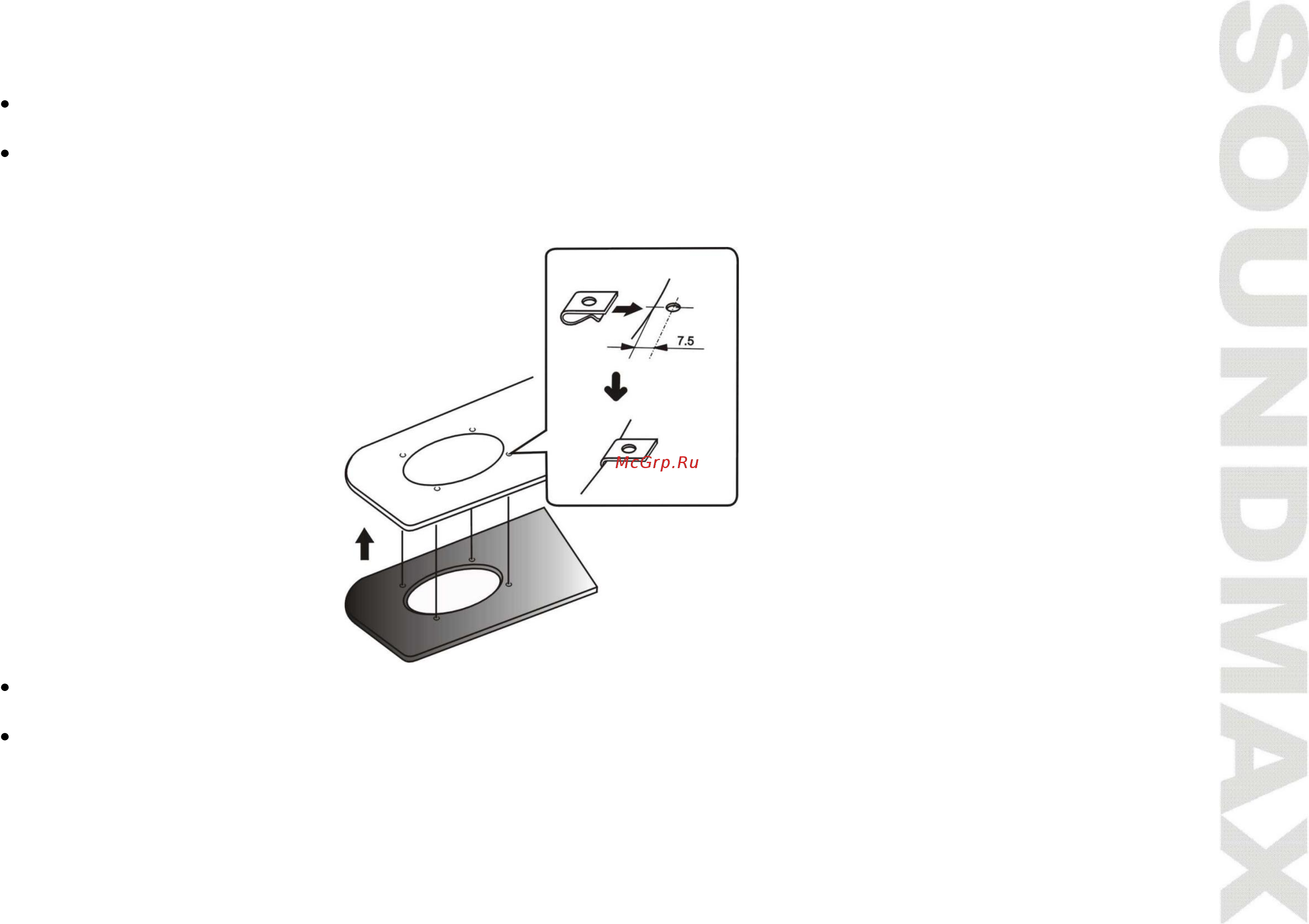

Screw clips are provided to ensure a snug fit. These should be placed over the metal surface and line up

the hole you have previously drilled with the screw clip. Place the speaker into the hole, align the holes

and proceed to insert the screws. Be sure to tighten the screws evenly so that it will not warp the speaker

frame.

Turn your system back on and confirm the speakers operation first at a low volume and then you may

increase the volume as you desire.

After installation acoustic system and having tested it the speaker grill will have to be inserted. Turn on

you system and follow these steps carefully:

- locate the speaker grill;

- now carefully inspect the place where the speaker grill will be mounted – there should be no

blowholes;

- fix the speaker grill by screws.
