SOUNDMAX SM-SA6022

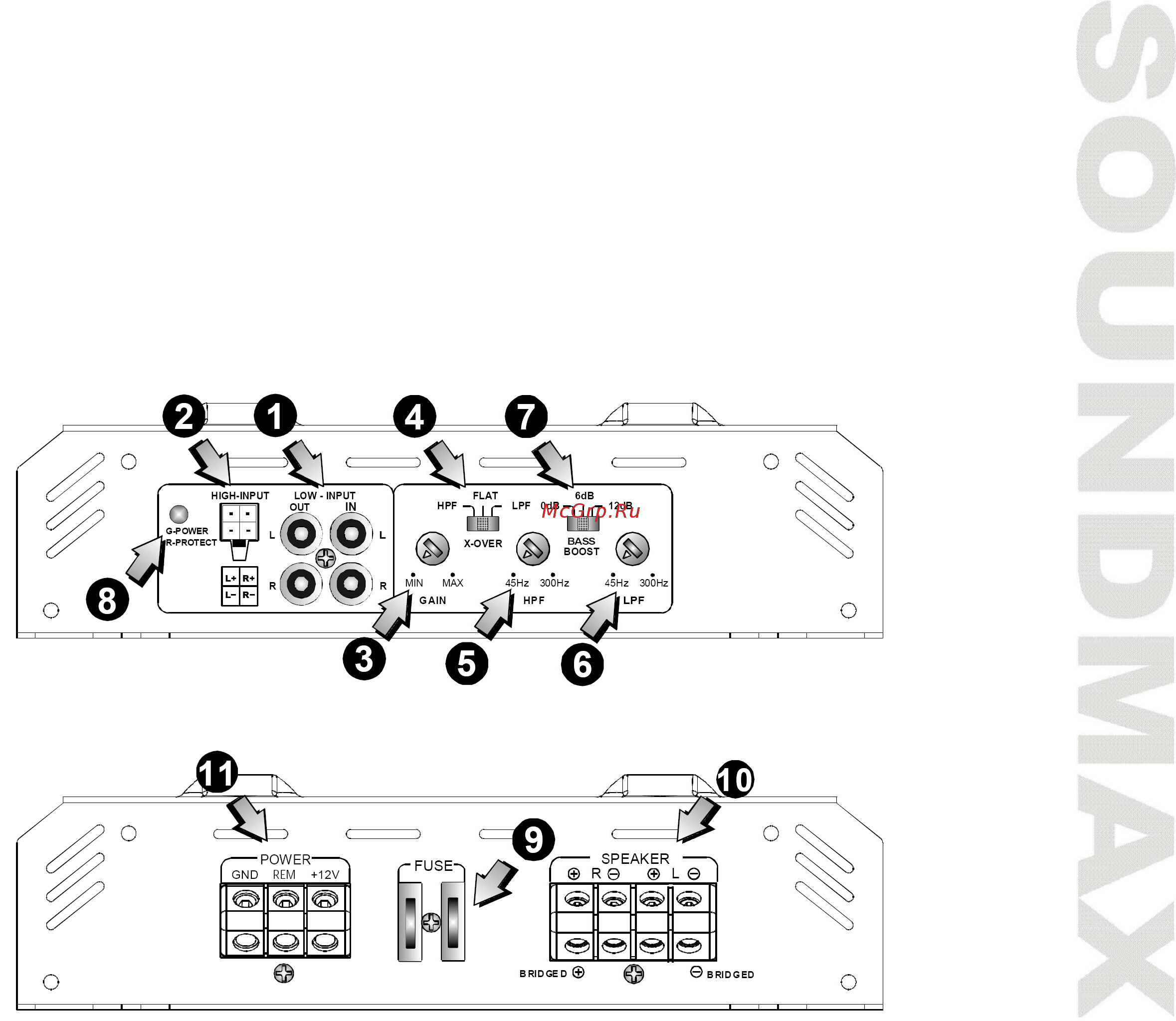

Operating elements and in/outputs

(1) Low-level inputs

(2) High-level inputs

(3) GAIN control

(4) Cross-over switch (HPF/FLAT/LPF)

(5) High-pass filter (HPF) adjusting knob, the frequency ranges from 45Hz to 300Hz

(6) Low-pass filter (LPF) adjusting knob, the frequency ranges from 45Hz to 300Hz

(7) Bass-boost control

(8) Indicator light (Green light means amplifier is working. Red light means self-protection mode of the

(10) Speaker connecting terminals

(11) +12 Power terminal, REM Remote turn-on terminal, GND Ground terminal.
