Asus N53SV i5-2410 [9/114] Preparing your notebook pc

Notebook PC User Manual

Preparing your Notebook PC

These are only quick instructions for using your Notebook PC.

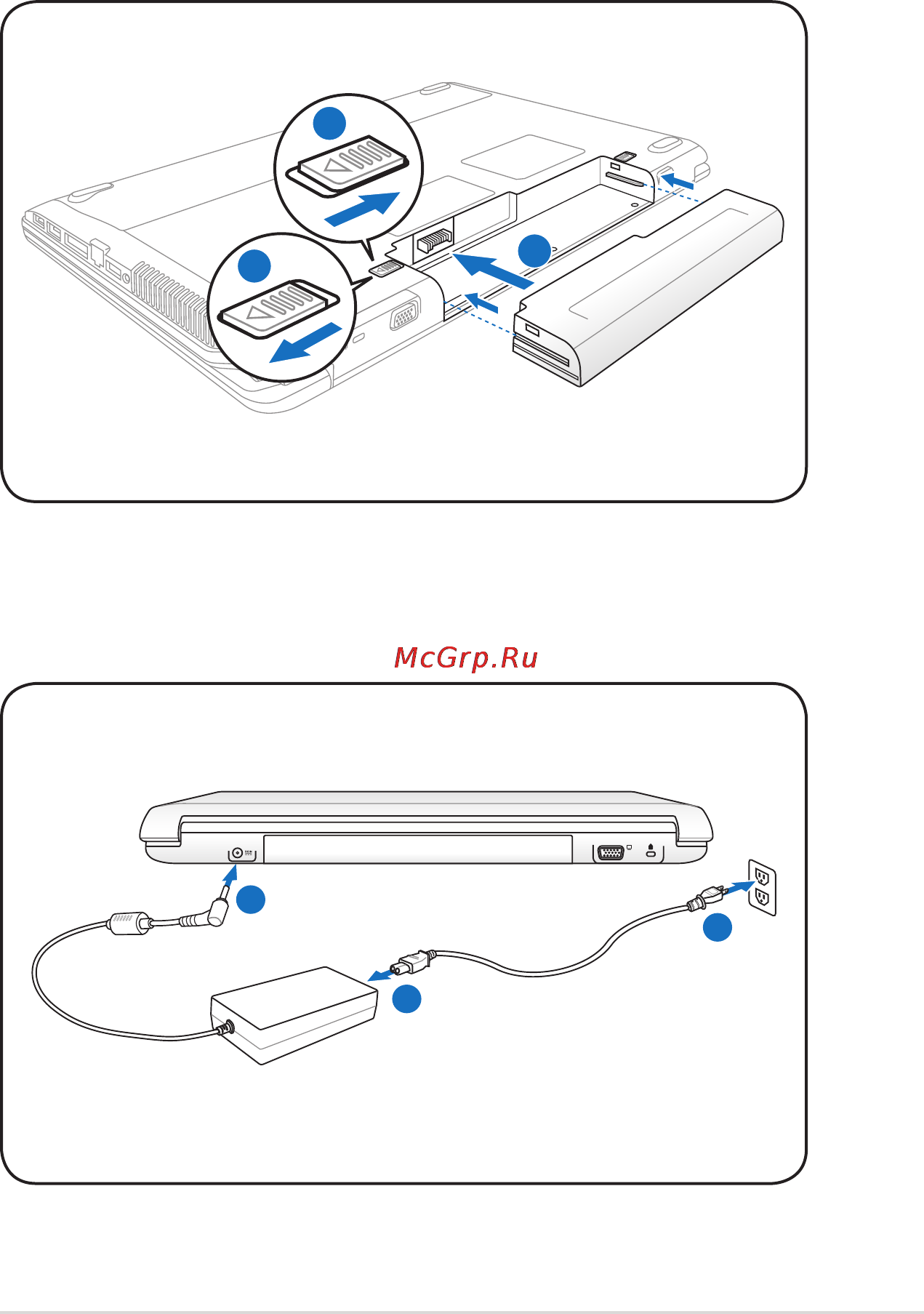

Installing the Battery Pack

Connecting the Power Adapter

110V-220V
