Sven SPS-855 сер.5.1 [12/16] Operation manual

5. CONNECTION GUIDE

1. The output clip 5 connects with speakers (Fig. 2).

2. Connect 5.1 CH signal input terminal 4 with 5.1 CH output terminal on DVD. If there is double channel sound source (such as CD),

then connect L and R output terminals of the double channel sound source with Front L and Front R of subwoofer (Fig. 3).

3. Press the power switch 6 to turn on the subwoofer power, the lamp 3 lights up; press it again to turn off the subwoofer power, the

green lamp is dark.

4. Turn the master volume control 1 to adjust the volume of the subwoofer, left front speaker, right front speaker, center and left and

right surround speaker at the same time.

5. Knob 2 of the subwoofer controls the volume of the subwoofer. While turning to the middle position, the ratio of the subwoofer and

input signal are the same.

OPERATION MANUAL

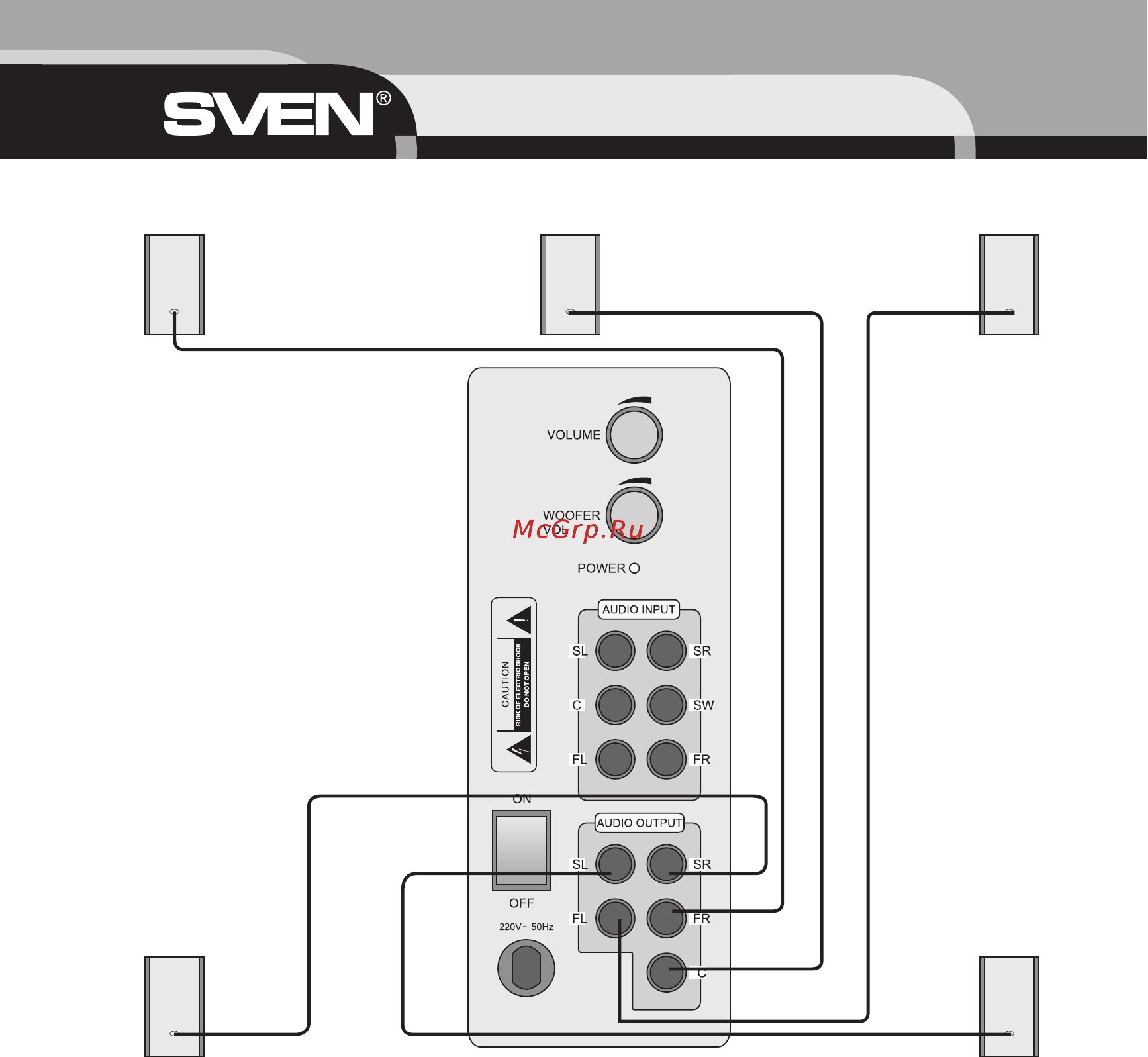

Fig. 2. Connection with speakers

Right

front speaker

Left

front speaker

Right

surround speaker

Left

surround speaker

Center

speaker
