1
Safety instructions
– The washing machine is heavy - take care when lifting.
– Caution: frozen hoses may rip/burst. Do not install the washing machine in areas exposed
to frost or outdoors.
– The washing machine could be damaged. Do not lift the appliance by protruding
components (e.g. the washing machine door, the cover, the front panel or the outer door
in case of deco models).
– In addition to the instructions provided in this document, special regulations from the
relevant water and electric utility companies may apply.
– If in doubt, have a technician connect the appliance.
– Lay hoses and cables in such a way that there is no risk of tripping.
Installation surface
– The machine must be stable so that it does not move around.
– The installation surface must be firm and level.
– Soft floors/floor coverings are not suitable.
Installation on a pedestal
– The feet of the washing machine must be secured with holding brackets*.
* order no. WMZ2200, WX9756, CZ110600, Z7080X0
Installation on a wood joist floor
– If possible, place the washing machine in a corner.
– Screw a water-resistant wooden board (min. 30 mm thick) to the floor.
– The feet of the washing machine must be secured with holding brackets*.
* order no. see above
Installing the appliance
– Install the appliance before connecting it to the power supply.
– Do not remove the cover of the appliance!
Installation in a kitchenette (underneath the worktop or fitted in a cabinet)
– Recess width of 60 cm required.
– Only install the washing machine underneath a continuous worktop that is securely
connected to adjacent cabinets.
2

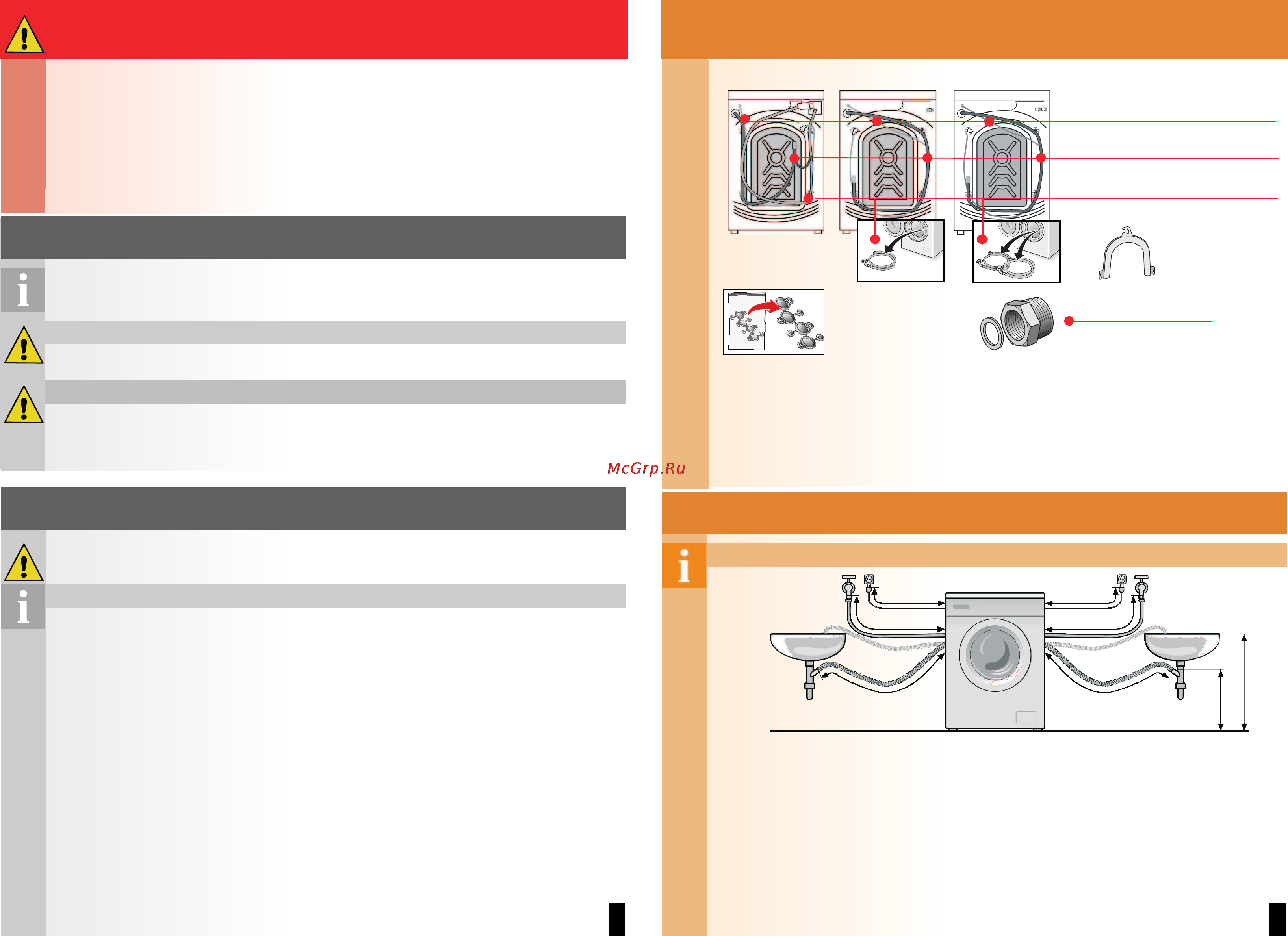

Scope of delivery depending on model
Also required, depending on the connection:
– 1 hose clamp Ø 24-40 mm (exclusive dealers) to connect to a siphon
apage 4; water connection.
Useful tools
– Spirit level for installation.
– Wrenches
WAF 13: for loosening transport braces apage 3 and
WAF 17: for aligning appliance feet apage 5.
Hose and cable lengths depending on model
Left-hand connection
or
Right-hand connection
Available from specialist dealers/the after-sales service:
– Extension for Aqua-Stop or cold-water inlet hose (approx. 2.50 m),
order no. WMZ2380, WZ10130, CZ11350, Z7070X0
– Longer inlet hose (approx. 2.20 m) for standard model.
Mains cable
Water outlet
Water inlet
Elbow
for fixing the drainage
hose in place
Covers
AquaäStop Hot water
AquaäSecure &
Standard
Adapter 1/2’’-3/4’’
(depending on model)
~
145 cm
~
100 cm
~
100 cm
~
135 cm
~
145 cm
min. 60 cm
max. 100 cm
~
90 cm
Moisture inside the drum
is due to final testing.
a
Q
ä ä
ä
Q
