Getting Started
9
EN
SLV-P55EE/PH77EE 3-858-675-11 (2)
Getting Started

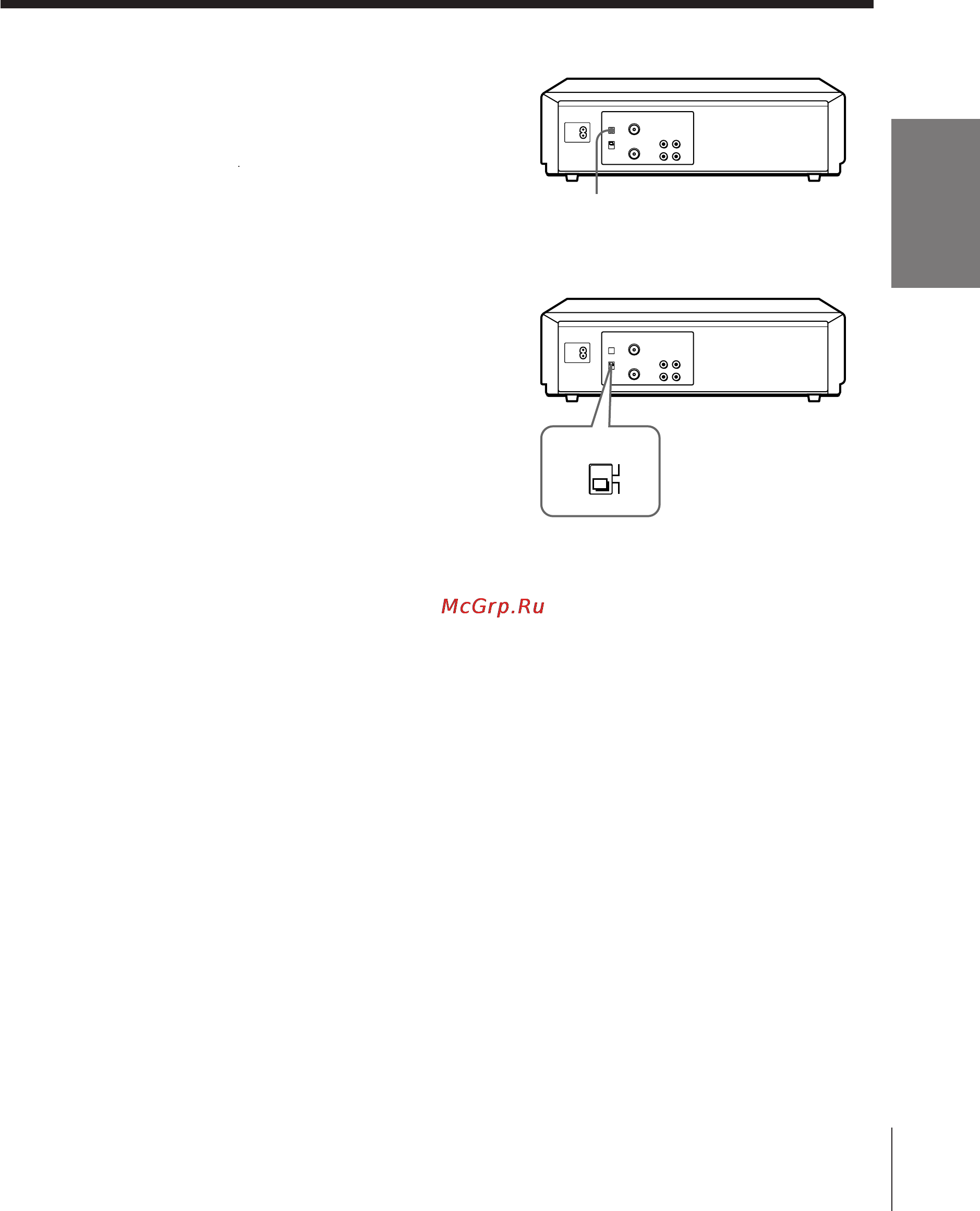

To obtain a clear playback
If the playback picture does not
appear clearly in step 5 above,
turn the RF CHANNEL screw on
the rear panel of the unit with a
screwdriver to a position where
the TV clearly displays the playback picture.
Selecting the TV system
For your TV to receive the correct
signal from your VCR, you must
set the TV SYSTEM switch on the
rear panel of the unit to either G
(for system B/G) or K (for system
D/K). If this switch is set to the
wrong position, the sound will be
distorted.
RF CHANNEL
TV SYSTEM
K
G
