Vitek VT-1709 [3/6] English

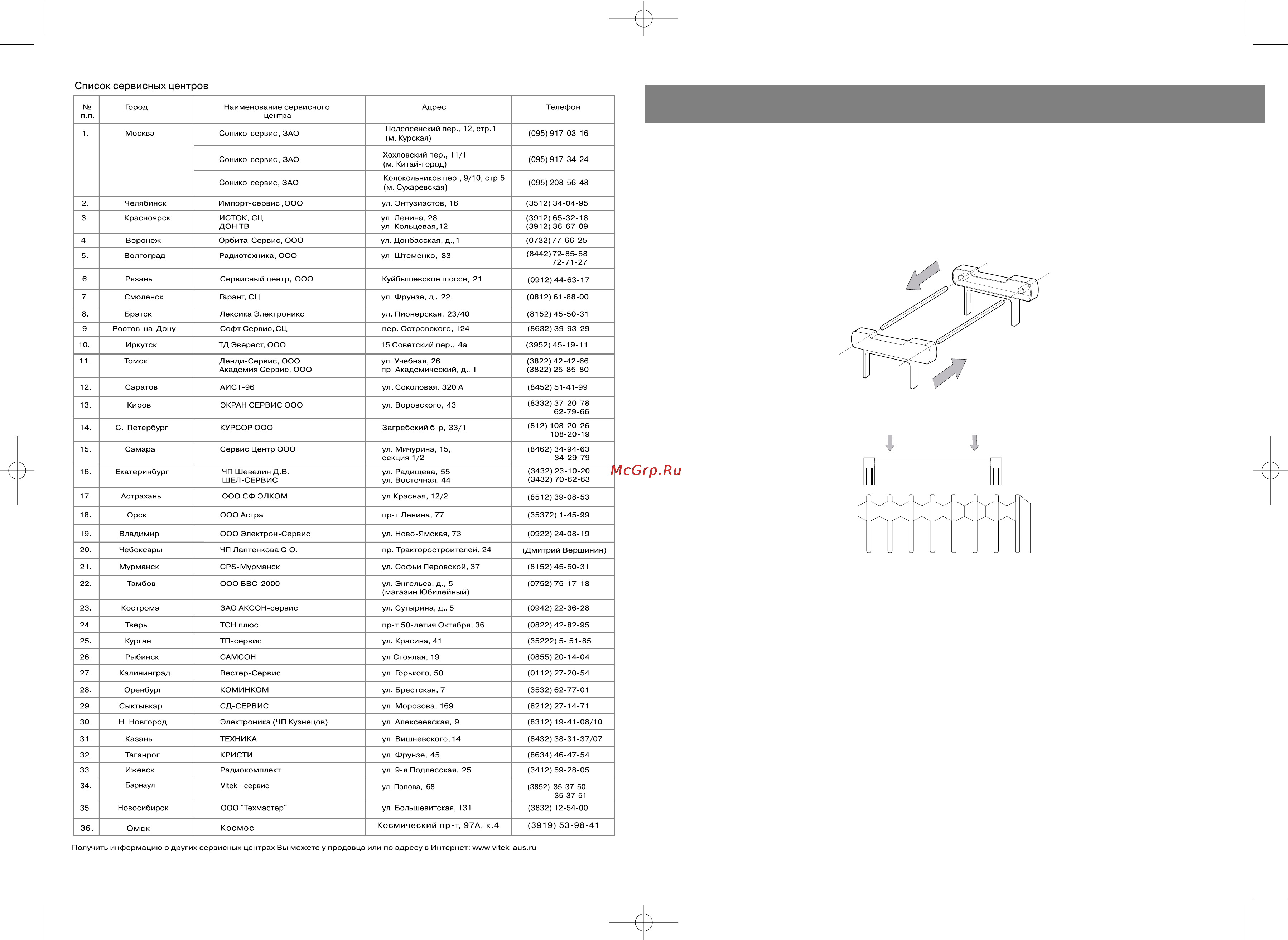

TO ASSEMBLE

1. Install multidirectional rolling wheels to each end between the first and the second

groups of the radiating flanges.

2. Let the "U" shape screw surrounding the dome of the radiating flanges. Then insert it

into two holes of the supporting plate.

3. Insert the butterfly nuts and screw them tightly counter clockwise.

4. Combine the tube and plastic rack together as figure.

5. Insert the towel rack assembly to radiator fins along the slot as figure.

TO USE

1. Insert the plug into the suitable wall outlet.

1) Never use the unit in place where is not plain, make sure there is nothing flammable or

easy deform object within 1m.

2) Insert the plug after setting the thermostat to the "OFF" position and setting the power

selected switches to the " OFF" position.

3) The unit should be earthed. Do not cover the appliance.

4) The heater is suitable for operation on an AC electricity supply having the same volt\

age as that show on it's rating label.

2. Press the power selected switch to the "HIGH" position then turn thermostat to the

"HIGH" position, at this moment, the unit begins working, when the temperature rises

to what you are satisfied with, slowly turn thermostat counter clockwise until the indi\

cating light of the key for power choice is out, and the room temperature thus can be

kept constant. If you want to raise or lower the room temperature, you can make

another regulation: Turn the thermostat clockwise to raise the temperature, or count\

310
