Additional Information

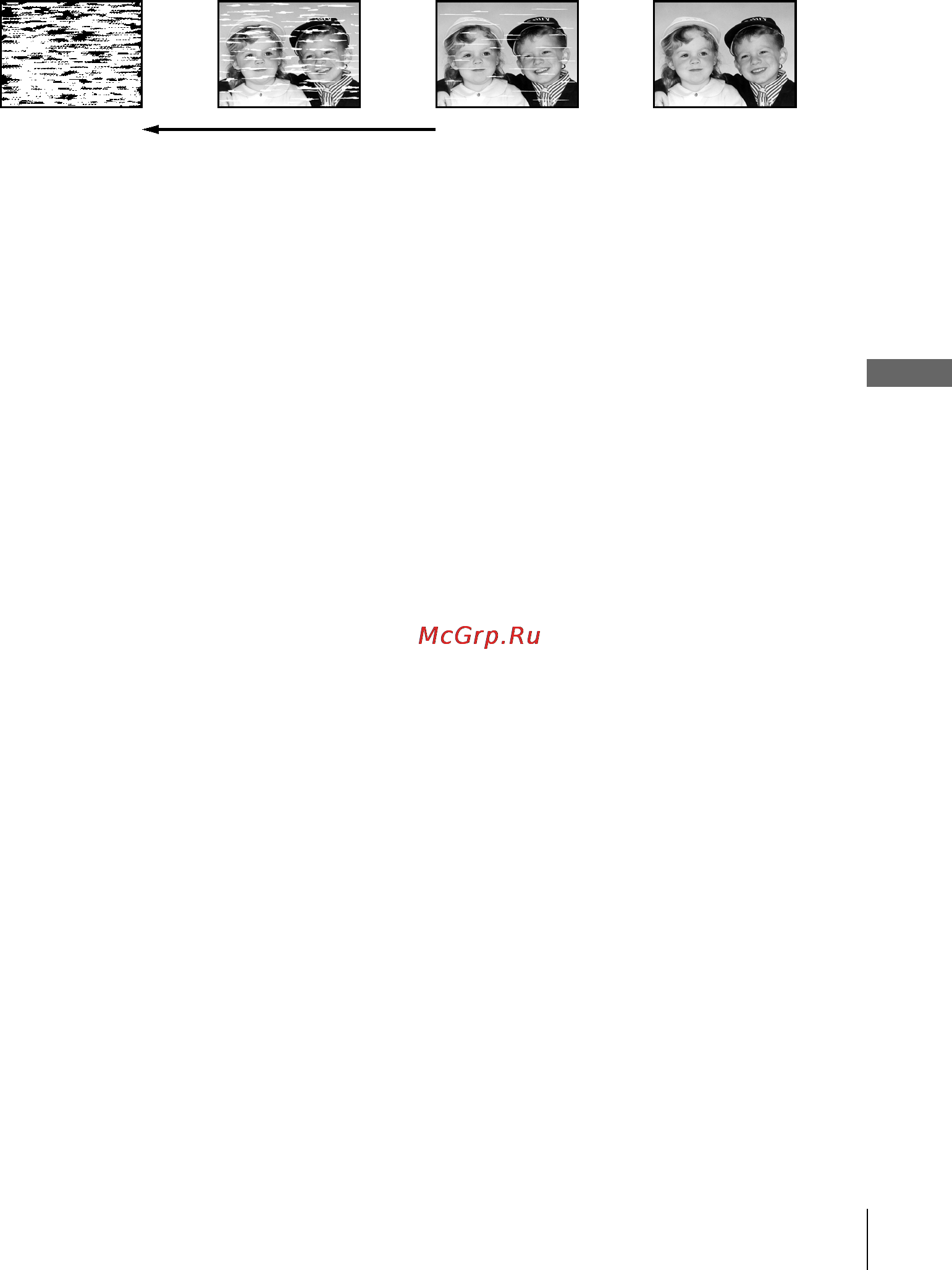

Symptoms caused by contaminated video heads

• Normal picture• Rough picture• Unclear picture• No picture (or

black & white

screen appears)

initial

contamination
