Getting Started8
Audio/video (A/V) hookup
Pages 8 to 9
If your TV has audio/video (A/V) input jacks, you will get a better picture
and sound if you hook up your VCR using these connections. In addition,
for a true “home theater” experience, you should connect the audio outputs
of your VCR or TV to your stereo system. If your TV doesn’t have A/V
inputs, see the following pages for antenna or cable hookups.
If you’re not planning to use your VCR to record programs, you’re finished
setting up the VCR after you’ve made the connections shown on pages 8 and
9.
If you want to record off-air or off your cable TV system, complete these
connections first, and then go to the following pages for antenna or cable
hookups.

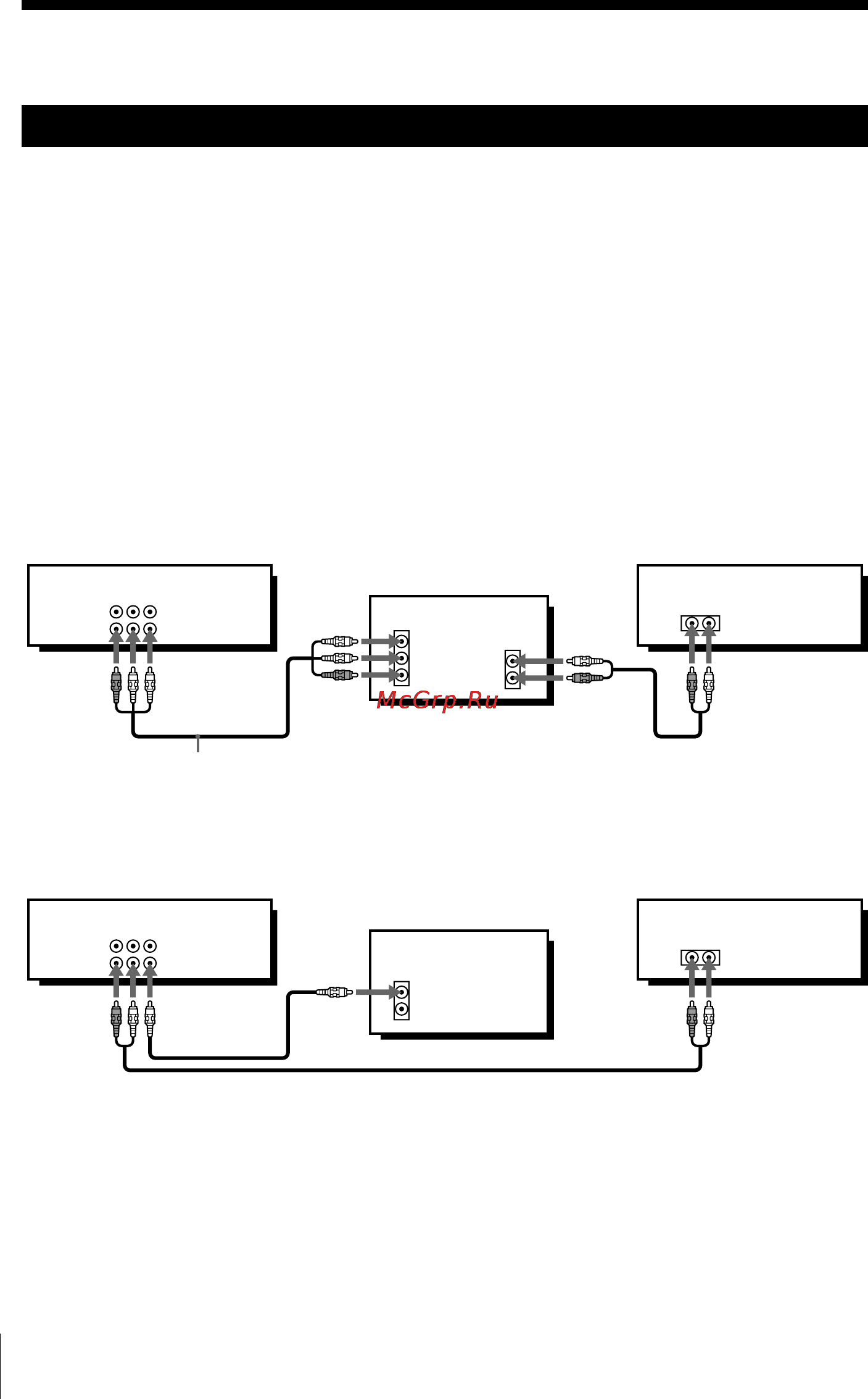

A Use this hookup if your TV has stereo jacks
VCR
Stereo receiver
B Use this hookup if your TV doesn’t have stereo jacks
TV
VCR
Stereo receiver
Audio/video cable (supplied)
TV
AUDIO VIDEO
LINE-1 IN
LINE OUT
VIDEO
AUDIO
IN
AUX IN
AUDIO VIDEO
LINE-1 IN
LINE OUT
IN
VIDEO
AUDIO
AUDIO OUT
AUX IN
Step 3: Hookups (continued)
Audio cable/video cable (not supplied)
Note
To play a tape in stereo, you must use the A/V connection.
