Installation

! Please keep this instruction booklet in a safe place for

future reference. If the appliance is sold, given away or

moved, please make sure the booklet is also passed on to

the new owners so that they may benet from the advice

contained within it.

! Please read this instruction manual carefully: it contains

important information concerning the safe operation,

installation and maintenance of the appliance.

Positioning

! Do not let children play with the packaging material; it

should be disposed of in accordance with local separated

waste collection standards (see Precautions and tips).

! The appliance must be installed by a qualied professional

in accordance with the instructions provided. Incorrect

installation may damage property or cause harm to people

or animals.

Built-in appliances

Use an appropriate cabinet to ensure that the appliance

operates properly:

• The panels adjacent to the oven must be made of heat-

resistant material.

• Cabinets with a veneer exterior must be assembled with

glues which can withstand temperatures of up to 100°C.

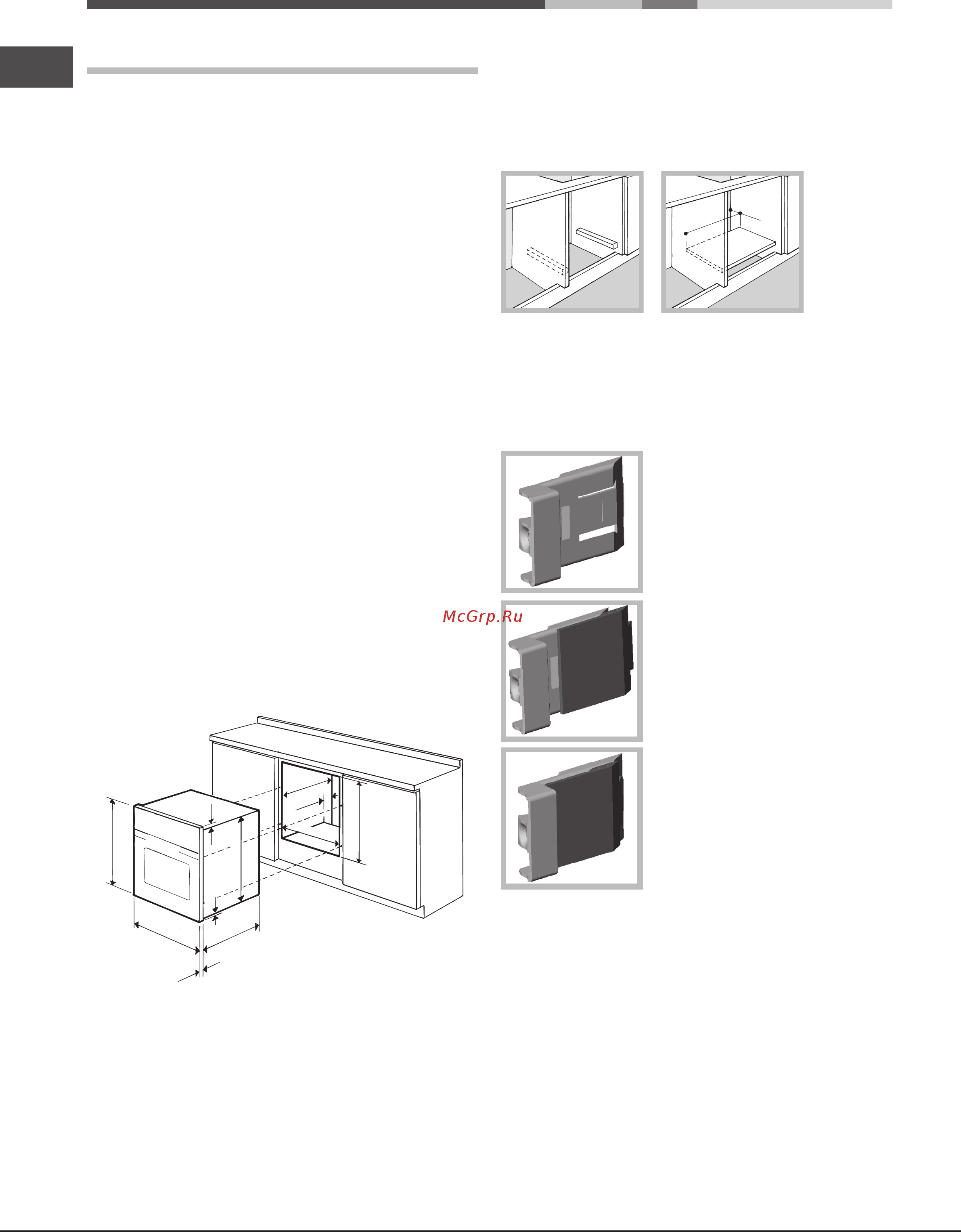

• To install the oven under the counter (see diagram) or

in a kitchen unit, the cabinet must have the following

dimensions:

595 mm.

25 mm.

545 mm.

5 mm.

567 mm.

23 mm.

575-585 mm.

45 mm.

558 mm.

547 mm. min.

! The appliance must not come into contact with electrical

parts once it has been installed.

The indications for consumption given on the data plate

have been calculated for this type of installation.

Ventilation

To ensure adequate ventilation, the back panel of the

cabinet must be removed. It is advisable to install the oven

so that it rests on two strips of wood, or on a completely

at surface with an opening of at least 45 x 560 mm (see

diagrams).

560 mm.

45 mm.

Centring and xing

Position the 4 tabs on the side of the oven so that they are

lined up with the 4 holes on the outer frame. Adjust the

tabs according to the thickness of the cabinet side panel,

as shown below:

20 mm thick: take off the removable

part of the tab (see diagram).;

18 mm thick: use the rst groove,

which has already been set in the

factory (see diagram).

16 mm thick: use the second

groove (see diagram).

Secure the appliance to the cabinet by opening the oven

door and putting 4 screws into the 4 holes on the outer

frame.

! All parts which ensure the safe operation of the appliance

must not be removable without the aid of a tool.

Electrical connection

Ovens equipped with a three-pole power supply cable are

designed to operate with alternating current at the voltage

and frequency indicated on the data plate located on the

appliance (see below).

* Only available in certain models.
