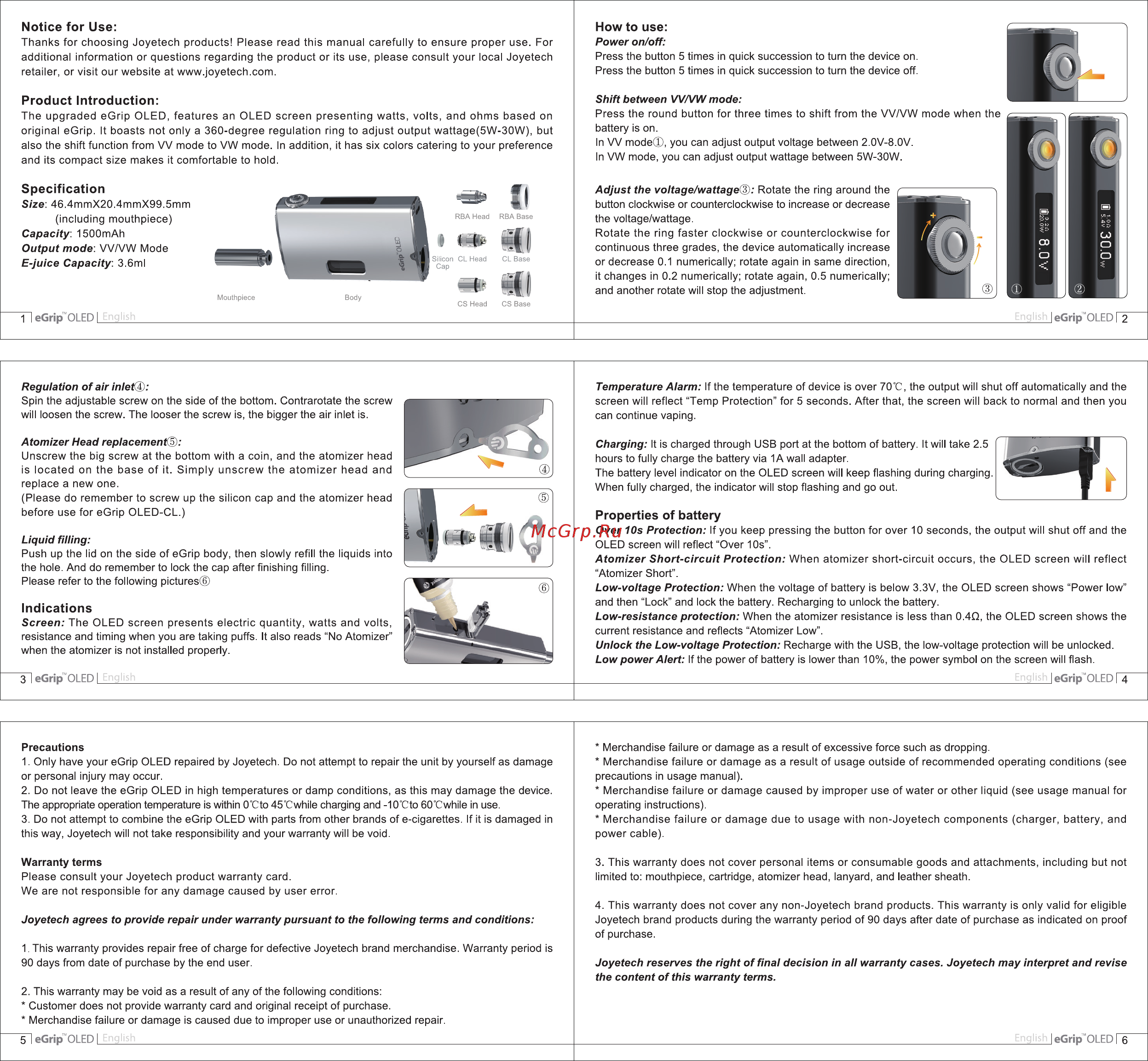

Notice for Use How to use Thanks for choosing Joyetech products Please read this manual carefully to ensure proper use For additional information or questions regarding the product or its use please consult your local Joyetech retailer or visit our website at www joyetech com Power on off Press the button 5 times in quick succession to turn the device on Press the button 5 times in quick succession to turn the device off Product Introduction Shift between VV VW mode Press the round button for three times to shift from the VV VW mode when the battery is on In VV mode you can adjust output voltage between 2 0V 8 0V In VW mode you can adjust output wattage between 5W 30W The upgraded eGrip OLED features an OLED screen presenting watts volts and ohms based on original eGrip It boasts not only a 360 degree regulation ring to adjust output wattage 5W 30W but also the shift function from VV mode to VW mode In addition it has six colors catering to your preference and its compact size makes it comfortable to hold Specification ÎI Size 46 4mmX20 4mmX99 5mm including mouthpiece Capacity 1500mAh Output mode VV VW Mode RBA Base 1 CL Base E juice Capacity 3 6ml Mouthpiece Body CS Head i Adjust the voitage wattage Rotate the ring around the button clockwise or counterclockwise to increase or decrease the voltage wattage Rotate the ring faster clockwise or counterclockwise for continuous three grades the device automatically increase or decrease 0 1 numerically rotate again in same direction it changes in 0 2 numerically rotate again 0 5 numerically and another rotate will stop the adjustment IT eGrio OLED I Ent leGrio OLED Regulation of air inlet Spin the adjustable screw on the side of the bottom Contrarotate the screw will loosen the screw The looser the screw is the bigger the air inlet is Temperature Alarm If the temperature of device is over 70 C the output will shut off automatically and the screen will reflect Temp Protection for 5 seconds After that the screen will back to normal and then you can continue vaping Atomizer Head replacement Unscrew the big screw at the bottom with a coin and the atomizer head is located on the base of it Simply unscrew the atomizer head and replace a new one Please do remember to screw up the silicon cap and the atomizer head before use for eGrip OLED CL Charging It is charged through USB port at the bottom of battery It will take 2 5 hours to fully charge the battery via 1A wall adapter The battery level indicator on the OLED screen will keep flashing during charging When fully charged the indicator will stop flashing and go out Liquid filling Push up the lid on the side of eGrip body then slowly refill the liquids into the hole And do remember to lock the cap after finishing filling Please refer to the following pictures Indications Screen The OLED screen presents electric quantity watts and volts resistance and timing when you are taking puffs It also reads No Atomizer when the atomizer is not installed properly Properties of battery Over 10s Protection If you keep pressing the button for over 10 seconds the output will shut off and the OLED screen will reflect Over 10s Atomizer Short circuit Protection When atomizer short circuit occurs the OLED screen will reflect Atomizer Short Low voltage Protection When the voltage of battery is below 3 3V the OLED screen shows Power low and then Lock and lock the battery Recharging to unlock the battery Low resistance protection When the atomizer resistance is less than 0 4Q the OLED screen shows the current resistance and reflects Atomizer Low Unlock the Low voltage Protection Recharge with the USB the low voltage protection will be unlocked Low power Alert If the power of battery is lower than 10 the power symbol on the screen will flash 31 eGrip OLED I English______________________________________________ ___________________________________________________________________________ English eGrip OLED 4 Precautions Merchandise failure or damage as a result of excessive force such as dropping Merchandise failure or damage as a result of usage outside of recommended operating conditions see precautions in usage manual Merchandise failure or damage caused by improper use of water or other liquid see usage manual for operating instructions Merchandise failure or damage due to usage with non Joyetech components charger battery and power cable 1 Only have your eGrip OLED repaired by Joyetech Do not attempt to repair the unit by yourself as damage or personal injury may occur 2 Do not leave the eGrip OLED in high temperatures or damp conditions as this may damage the device The appropriate operation temperature is within O Cto 45 Cwhile charging and 10 Cto 60Gwhile in use 3 Do not attempt to combine the eGrip OLED with parts from other brands of e cigarettes If it is damaged in this way Joyetech will not take responsibility and your warranty will be void Warranty terms Please consult your Joyetech product warranty card We are not responsible for any damage caused by user error Joyetech agrees to provide repair under warranty pursuant to the following terms and conditions 1 This warranty provides repair free of charge for defective Joyetech brand merchandise Warranty period is 90 days from date of purchase by the end user 3 This warranty does not cover personal items or consumable goods and attachments including but not limited to mouthpiece cartridge atomizer head lanyard and leather sheath 4 This warranty does not cover any non Joyetech brand products This warranty is only valid for eligible Joyetech brand products during the warranty period of 90 days after date of purchase as indicated on proof of purchase Joyetech reserves the right of final decision in all warranty cases Joyetech may interpret and revise the content of this warranty terms 2 This warranty may be void as a result of any of the following conditions Customer does not provide warranty card and original receipt of purchase Merchandise failure or damage is caused due to improper use or unauthorized repair 51 eGrip OLED I English___________________________________________________________________________ lish eGrip OLED R
