Assemble the Razor HD _________________5
Customize How You Use the Razor HD ________7
Tips for Care and Handling ______________10
Service and Repair Policy _______________11

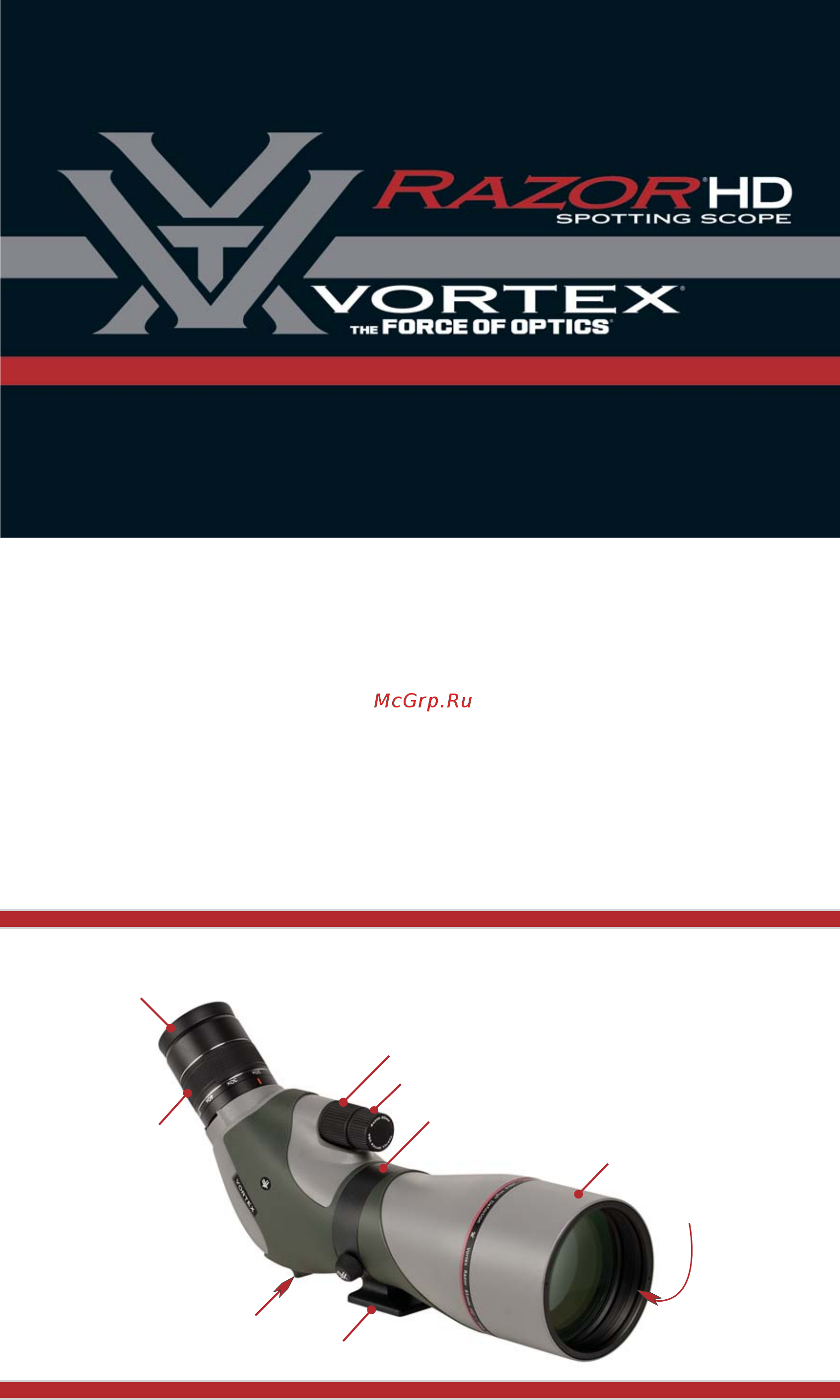

Expect impressive optical quality with the Razor HD spotting scopes.
The rugged build, along with waterproof and fogproof protection, allows
you to view under the most demanding conditions.
RAZOR
HD
HD
Spotting Scope
The
®
®
Magnification
Adjustment Ring
Tripod
Mount Collar
Bayonet Eyepiece
with Twist-up Eyecup
Retractable
Sunshade
Tripod Mount Foot
Coarse Focus Dial
Fine Focus Dial
Balance
Support
Objective Lens
RAZOR
HD
HD
Spotting Scope
The
®
US Patent D 595,754 S
Содержание
- Expect impressive optical quality with the razor hd spotting scopes the rugged build along with waterproof and fogproof protection allows you to view under the most demanding conditions 1
- Adjustable 20 60x zoom eyepiece 2
- Assemble the razor hd 2
- Attach the eyepiece 2
- Before putting the scope and eyepiece together remove the covers from the bayonet mount end of the eyepiece and the spotting scope keep other covers handy to protect exposed lenses whenever you re not viewing through the razor hd 2
- Customize how you use the razor 2
- Decrease magnification by turning the adjustment ring to the right clockwise 2
- Detach the eyepiece 2
- How to attach the eyepiece 2
- How to attach the razor hd to a tripod 2
- Increase magnification by turning the adjustment ring to the left counter clockwise 2
- Line up the red line on the eyepiece with the red dot on the bayonet fitting insert eyepiece and rotate clockwise 2
- Mount the 85mm razor hd spotting scope on a sturdy tripod or car window mount for steady viewing simply secure the tripod foot on the tripod head or quick release plate of a standard camera or camcorder tripod 2
- Release the eyepiece by holding down the lock while rotating the eyepiece counter clockwise 2
- The razor hd comes with a versatile 20 60x eyepiece that brings distant details into view 2
- Www vortexoptics com 2
- Adjusting the focus does more than allow you to see critical details fine tuning the focus also ensures fatigue free viewing some refocusing is usually required when you change the magnification handle the coarse and fine adjustments with just the tip of a finger 3
- Extendable sunshade 3
- Fine tuning with the dual focus dial 3
- Flexible viewing angle 3
- Keeping the lenses clean 3
- Maintain the optical brilliance of the razor hd 3
- Protect your spotting scope by keeping it in the padded view through case while in use if the razor hd gets wet be sure to let it dry before packing it away 3
- Rotate the tripod mounting collar for greater flexibility in the field 3
- This fitted hood effectively blocks out disturbing stray light when extended the sunshade also shields the objective lens from mechanical damage and guards against soiling by fingerprints and raindrops 3
- Tips for care and handling 3
- Rzr 11b 4
- Vortex optics 4
- Vortex vip warranty 4
