11
НАСТРОЙКА ПОД РАЗЛИЧНЫЕ ТИПЫ ГАЗА
1. Перекройте газовый кран и отключите прибор от электросети. Если варочная панель нагрелась,
подождите пока она остынет.
2. Снимите конфорку вместе с крышкой, вы увидите жиклер [Рис. 2].
3. Для замены жиклеров используйте ключ-шестигранник [Рис. 1].
4. Выкрутите жиклер [Рис. 3] и замените на подходящий.
5. Снимите ручку управления, соответствующую данной конфорке [Рис. 4], отрегулируйте положение
регулировочного винта, который находится в центре газового крана [Рис. 5]. Используйте отвертку
подходящего размера.

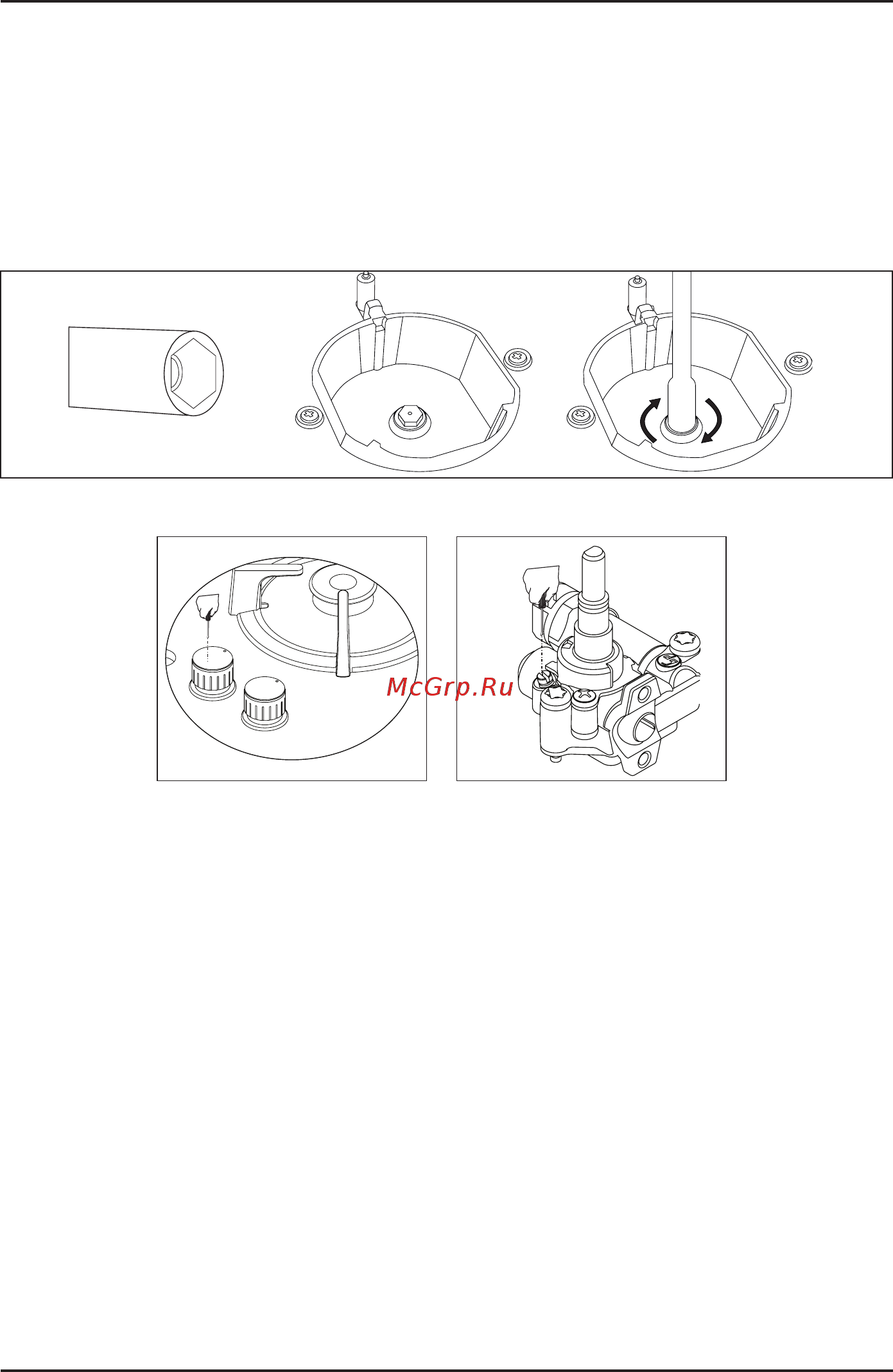

Рис. 1 Рис. 2 Рис. 3
Рис. 4 Рис. 5
Для регулировки при использовании баллонного (сжиженного) газа поверните винт регулировки
по часовой стрелки.
Для регулировки при использовании магистрального газа поверните винт (один оборот) регулиров-
ки против часовой стрелке.
ВНИМАНИЕ! В НИЖНЕМ ПОЛОЖЕНИИ ВИНТА ВЫСОТА ПЛАМЕНИ ДОЛЖНА СОСТАВ-
ЛЯТЬ 6
-
7 ММ.
ВНИМАНИЕ! ПО ОКОНЧАНИИ ЗАМЕНЫ/РЕГУЛИРОВКИ ЖИКЛЕРОВ, ПРОВЕРЬТЕ,
ГОРИТ ЛИ ПЛАМЯ.
ВНИМАНИЕ! РЕГУЛИРОВКА ПРИБОРА МОЖЕТ МЕНЯТЬСЯ В ЗАВИСИМОСТИ ОТ ТИПА
ИСПОЛЬЗУЕМОГО ГАЗОВОГО КРАНА.
14
TRANSFORMATION FROM NATURAL GAS TO LPG AND FROM LPG TO NATURAL GAS
1. Turn off gas and electricity of the cooktop. If your cooktop is hot,
wait for cooling down.
2.For injector change, use a screwdriver whose edge is as the Figure 4.
3. As seen in Figure 5, demount burner lid and burner of the cooktop
and ensure visibility of injector.
4. Remove injector by turning as shown in Figure 6 with screwdriver
and replace it with a new one.
5. After that, detach control switches of the cooktop. Make setting by
turning the screw in the middle of gas cocks with a small screwdriver
in the manner shown in the following picture. To adjust ow rate screw,
use a screwdriver having suitable dimension. For LPG, turn the screw
clockwise. For natural gas, turn the screw one time counter clockwise.
At low position, length of normal ame should be 6-7 mm. For the last
control, check out whether ame is open or closed.
Setting of your appliance may differ according to the type of gas cock
used.
GAS BREAKING SAFETY APPLİANCE (FFD)
Against putting out to be taken place as a
result of liquid overow at upper burners, safety
appliance steps in and cut gas immediately.
Figure 4 Figure 5 Figure 6
Figure 7 Figure 8
Figure 9
FFD
GB
14
TRANSFORMATION FROM NATURAL GAS TO LPG AND FROM LPG TO NATURAL GAS
1. Turn off gas and electricity of the cooktop. If your cooktop is hot,
wait for cooling down.
2.For injector change, use a screwdriver whose edge is as the Figure 4.
3. As seen in Figure 5, demount burner lid and burner of the cooktop
and ensure visibility of injector.
4. Remove injector by turning as shown in Figure 6 with screwdriver
and replace it with a new one.
5. After that, detach control switches of the cooktop. Make setting by
turning the screw in the middle of gas cocks with a small screwdriver
in the manner shown in the following picture. To adjust ow rate screw,
use a screwdriver having suitable dimension. For LPG, turn the screw
clockwise. For natural gas, turn the screw one time counter clockwise.
At low position, length of normal ame should be 6-7 mm. For the last
control, check out whether ame is open or closed.
Setting of your appliance may differ according to the type of gas cock
used.
GAS BREAKING SAFETY APPLİANCE (FFD)
Against putting out to be taken place as a
result of liquid overow at upper burners, safety
appliance steps in and cut gas immediately.
Figure 4 Figure 5 Figure 6
Figure 7 Figure 8
Figure 9
FFD
GB
